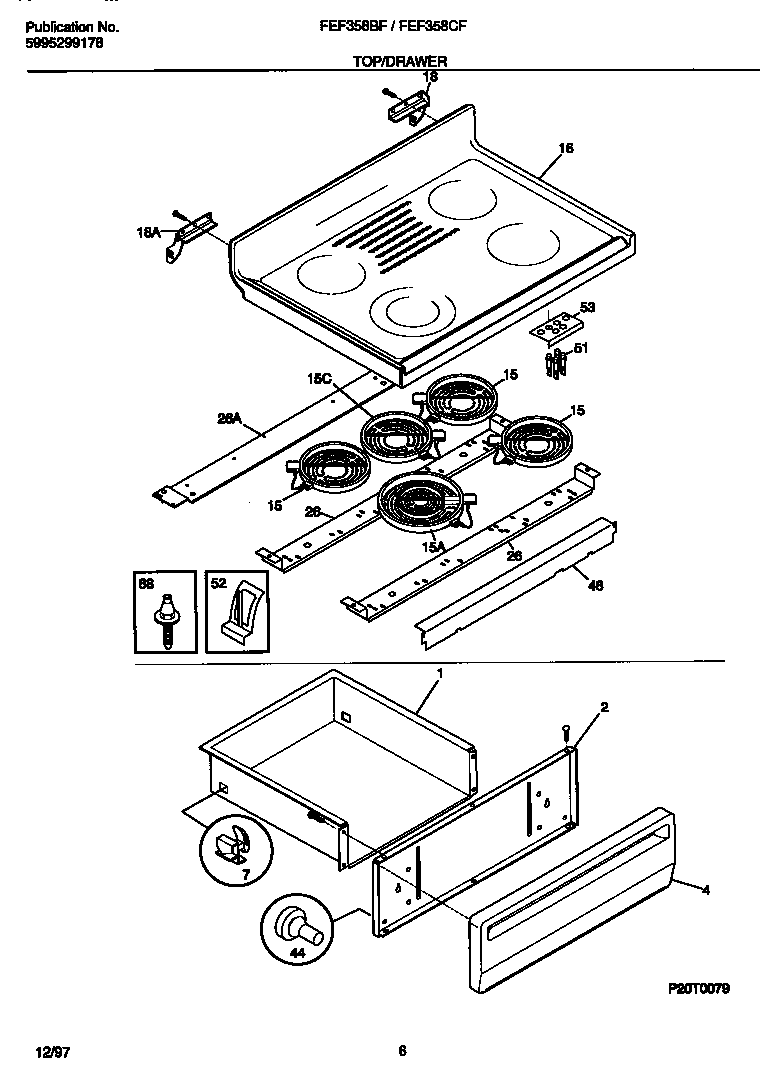

FEF358BFWA 04 – TOP/DRAWER

FEF358BFWA 04 – TOP/DRAWER

Written by

in

FEF358BFWA 04 – TOP/DRAWER

Products

PositionProduct
*75536RIVET-POP, WARING-PLATE
*75540WCI 316089600
*75541WCI 5309951550
*75535SCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT ILLUSTRATED)
*75539WCI 5303280311
*75543WCI 316001748
*75542Clip,wiring harness ,green ,main top
*75538Screw,cup pt ,8-18 x 0.375 ,chrome
*75534316021109 Frigidaire Oven Screw
*75537316021105 Frigidaire Oven Screw
1DRAWER-UTILITY
2SHIELD-PNL
4WCI 316084405
73051163 Frigidaire Oven Range Rear Broiler Drawer Glide
15318198817 Frigidaire Oven Element
15WCI 316098200
15389082702 Frigidaire Element
16WCI 316098127
18HINGE-MAIN TOP (LH)
18HINGE-MAIN TOP (RH)
26WCI 316099101
26WCI 316099201
443131903 Frigidaire Door/Drawer Bumper
48WCI 316100200
52Clip,element mtg
53WCI 316099300
88316099500 Frigidaire Oven Pin
