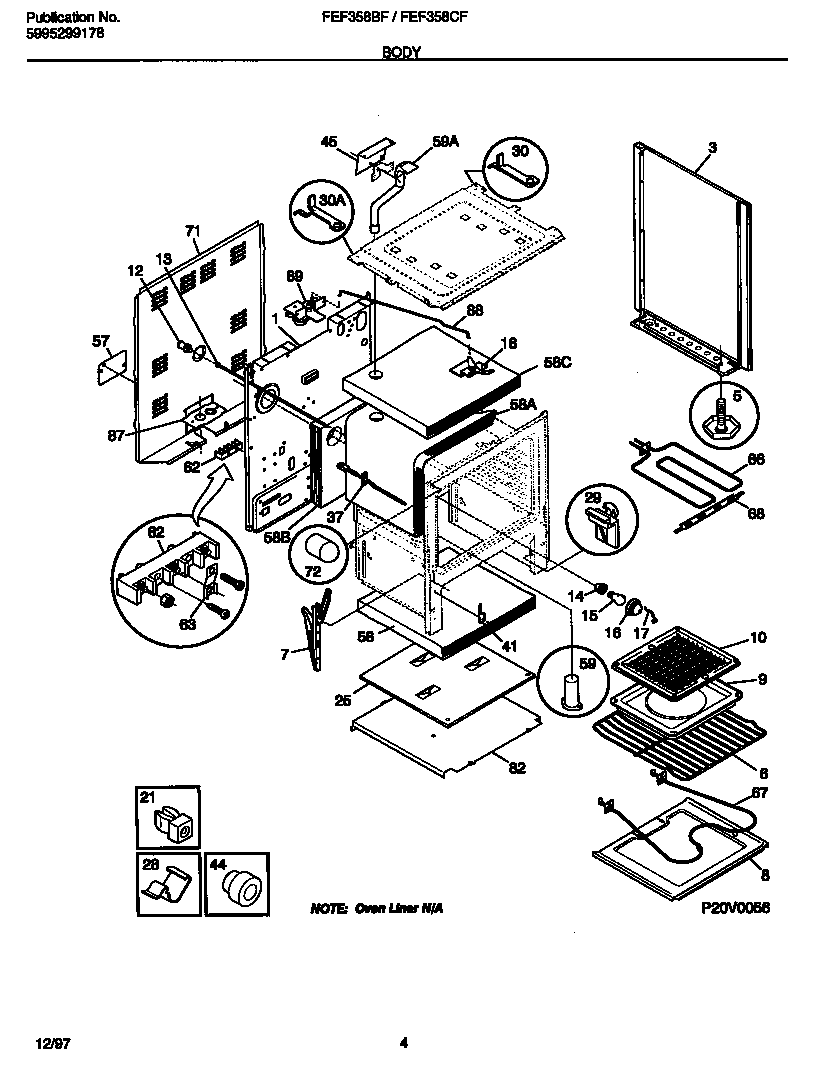

FEF358CFSA 03 – BODY

FEF358CFSA 03 – BODY

Written by

in

FEF358CFSA 03 – BODY

Products

PositionProduct
*75527NUT, T,TYPE, LEVELING SCREW (NOT ILLUSTRATED)
*75526316116000 Frigidaire Screw
*75525WCI 3934058
*75531WCI 316101600
*75532316205500 Frigidaire Oven Nut
*75528BRACKET-MOUNTING,VENT TUBE
*75524WCI 316081029
*755293203550 Frigidaire Oven Plug
*75530Screw,cup pt ,8-18 x 0.375 ,chrome
1WCI 316080801
3WCI 316081028
5SCREW-LEVELING
6316067902 Frigidaire Oven Rack
7WCI 316007002
8PANEL-OVEN BOTTOM
9WCI 316073800
10WCI 3205234
12SWITCH-OVEN LIGHT, DOOR FRAME
13WCI 316026800
14316116400 Frigidaire Oven Light Socket
15316538904 Frigidaire Oven Lamp Light
165304524341 Frigidaire Lens
17316087500 Frigidaire Oven Retainer
18WCI 316036300
21SPACER-BODYSIDE, (8)
25WCI 3200848
28Clip,wiring harness ,green ,main top
293051162 Frigidaire Oven Range Front Broiler Drawer Glide
30BRACKET-HINGE, MAIN TOP RH
30BRACKET-HINGE, MAIN TOP, LH
375304497424 Frigidaire Oven Temperature Sensor Probe Kit
41WCI 3131570
443131903 Frigidaire Door/Drawer Bumper
45WCI 316066100
57WCI 316081101
58INSULATION, OVEN WRAPPER
58316403803 Frigidaire Insulation
58INSULATION, OVEN TOP
58WCI 316054200
59WCI 316023601
59WCI 316073602
625304409888 Frigidaire Oven Terminal Block with Hardware
63PLATE=GROUND STRAP
665303051140 Frigidaire Broil Element
67316075103 Frigidaire Oven Bake Element
68316203400 Frigidaire Oven Support
71WCI 316015805
72COVER-LIGHT/SWITCH ROD
82WCI 5303289913
87316081200 Frigidaire Oven Bracket
88WCI 316026400
89WCI 316028101
