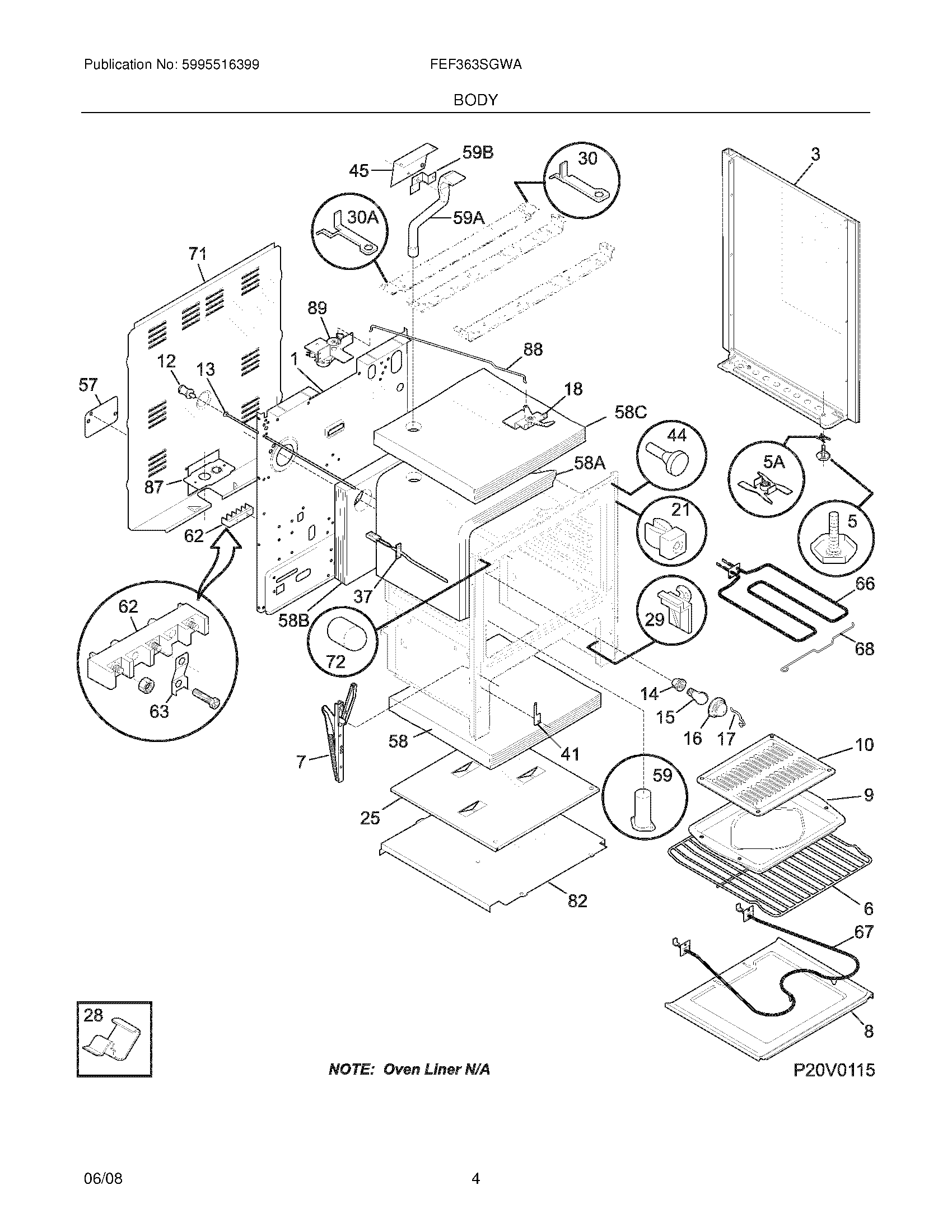

FEF363SGWA 05 – BODY

Products

PositionProduct
NI316116000 Frigidaire Screw
NIWCI 316101600
NIWCI 316081029
NIWCI 3934058
NIBRACKET-MOUNTING,VENT TUBE
NI316205500 Frigidaire Oven Nut
NIClip,wiring harness ,green ,main top
NIWCI 316001540
NI3203550 Frigidaire Oven Plug
NIScrew,cup pt ,8-18 x 0.375 ,chrome
1WCI 316080804
3WCI 316081028
5ANUT, T,TYPE, LEVELING SCREW (NOT ILLUSTRATED)
5SCREW-LEVELING
6316067902 Frigidaire Oven Rack
7HINGE-OVEN DOOR,ASSEMBLY
8PANEL-OVEN BOTTOM
9WCI 316073800
10WCI 3205234
12SWITCH-OVEN LIGHT, DOOR FRAME
13WCI 316026800
14316116400 Frigidaire Oven Light Socket
15316538904 Frigidaire Oven Lamp Light
165304524341 Frigidaire Lens
17316087500 Frigidaire Oven Retainer
18WCI 316036300
21SPACER-BODYSIDE, (8)
25WCI 3200848
293051162 Frigidaire Oven Range Front Broiler Drawer Glide
30BRACKET-HINGE, MAIN TOP RH
30ABRACKET-HINGE, MAIN TOP, LH
375304497424 Frigidaire Oven Temperature Sensor Probe Kit
41WCI 3131570
443131903 Frigidaire Door/Drawer Bumper
45WCI 316066100
57WCI 316081101
58AINSULATION, OVEN WRAPPER
58CINSULATION, OVEN TOP
58B316054202 Frigidaire Insulation
58316403803 Frigidaire Insulation
59WCI 316073602
59AWCI 316023601
625304409888 Frigidaire Oven Terminal Block with Hardware
63PLATE=GROUND STRAP
665303051140 Frigidaire Broil Element
67316075103 Frigidaire Oven Bake Element
68316203400 Frigidaire Oven Support
71WCI 316015805
72COVER-LIGHT/SWITCH ROD
82WCI 5303289913
87316081200 Frigidaire Oven Bracket
88WCI 316026400
89WCI 316028101
