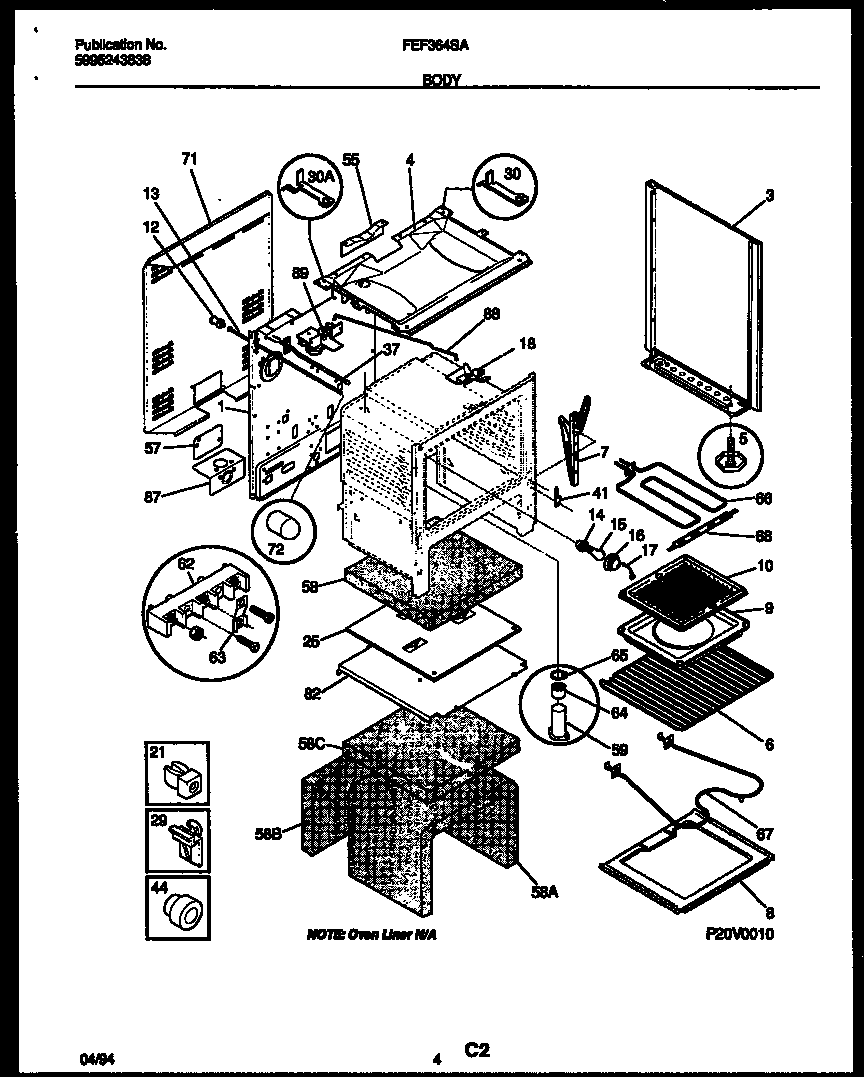

FEF364SAWA 03 – BODY PARTS

Products

PositionProduct
*978193203550 Frigidaire Oven Plug
*97819FASTENER-EDGE MTG (NOT ILLUSTRATED)
1BACK-MAIN, AUTOLATCH
3CSHIELD, HEAT, BODY SIDE (NOT ILLUSTRATED)
3BWCI 5303269545
3WCI 5303269543
4WCI 5303271756
5SCREW-LEVELING
5ANUT, T,TYPE, LEVELING SCREW (NOT ILLUSTRATED)
5BANTI-TIP KIT (NOT ILLUSTRATED)
6316067902 Frigidaire Oven Rack
7Hinge,oven door ,(2)
8PANEL-OVEN BOTTOM
9PAN-BROILER
10WCI 5303131356
12SWITCH-OVEN LIGHT, DOOR FRAME
13WCI 316026800
14316116400 Frigidaire Oven Light Socket
15316538904 Frigidaire Oven Lamp Light
165304524341 Frigidaire Lens
17RETAINER-GLASS
18WCI 316036300
21SPACER-BODYSIDE, (8)
25WCI 3200848
293051162 Frigidaire Oven Range Front Broiler Drawer Glide
30BRACKET-HINGE, MAIN TOP RH
30ABRACKET-HINGE, MAIN TOP, LH
375304497424 Frigidaire Oven Temperature Sensor Probe Kit
41WCI 3131570
443131903 Frigidaire Door/Drawer Bumper
55COVER-FLUE
57COVER-ACCESS
58CINSULATION, OVEN TOP
58BINSULATION OVEN BACK (NON-ILLUSTRATED)
58316403803 Frigidaire Insulation
58AWCI 316047700
59WCI 3051344
625304409888 Frigidaire Oven Terminal Block with Hardware
62A316205500 Frigidaire Oven Nut
63PLATE-GROUND STRAP
64WCI 08067810
65WCI 08010606
665303051140 Frigidaire Broil Element
67316075103 Frigidaire Oven Bake Element
68316203400 Frigidaire Oven Support
71SHIELD-REAR WALL, LOWER
72COVER-LIGHT/SWITCH ROD
82SHIELD, OVEN BOTTOM
87WCI 5303206618
88WCI 316026400
89WCI 316028101
