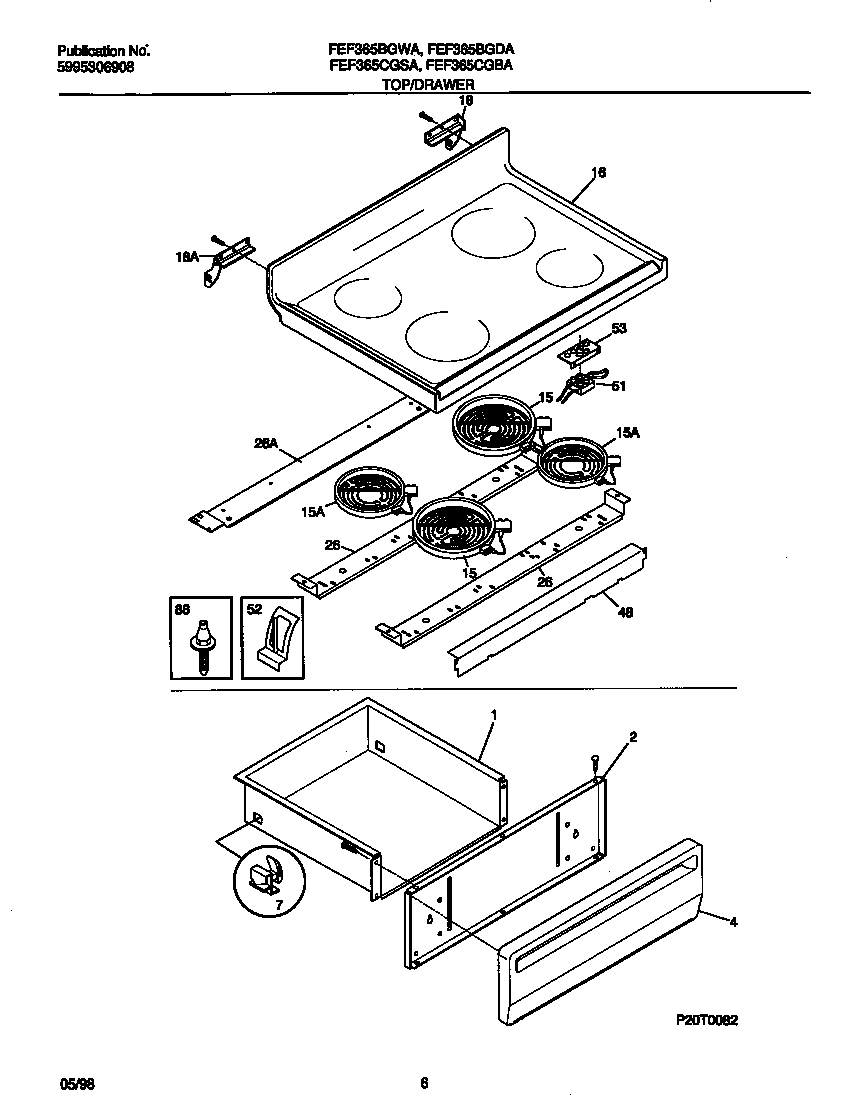

FEF365BGDA 04 – TOP/DRAWER

Products

Position	Product
*15382	RIVET-POP, WARING-PLATE
*15385	WCI 316089600
*15386	WCI 5303280311
*15387	WCI 5309951550
*15384	Clip,wiring harness ,green ,main top
*15383	Screw,cup pt ,8-18 x 0.375 ,chrome
*15380	316021109 Frigidaire Oven Screw
*15381	316021105 Frigidaire Oven Screw
1	DRAWER-UTILITY
2	SHIELD-PNL
4	WCI 316084406
7	3051163 Frigidaire Oven Range Rear Broiler Drawer Glide
15A	318198817 Frigidaire Oven Element
15B	318198834 Frigidaire Oven Element
16	WCI 316098104
18	HINGE-MAIN TOP (RH)
18	HINGE-MAIN TOP (LH)
26	WCI 316099101
26	WCI 316099201
48	WCI 316100200
52	Clip,element mtg
53	WCI 316099300
88	316099500 Frigidaire Oven Pin
