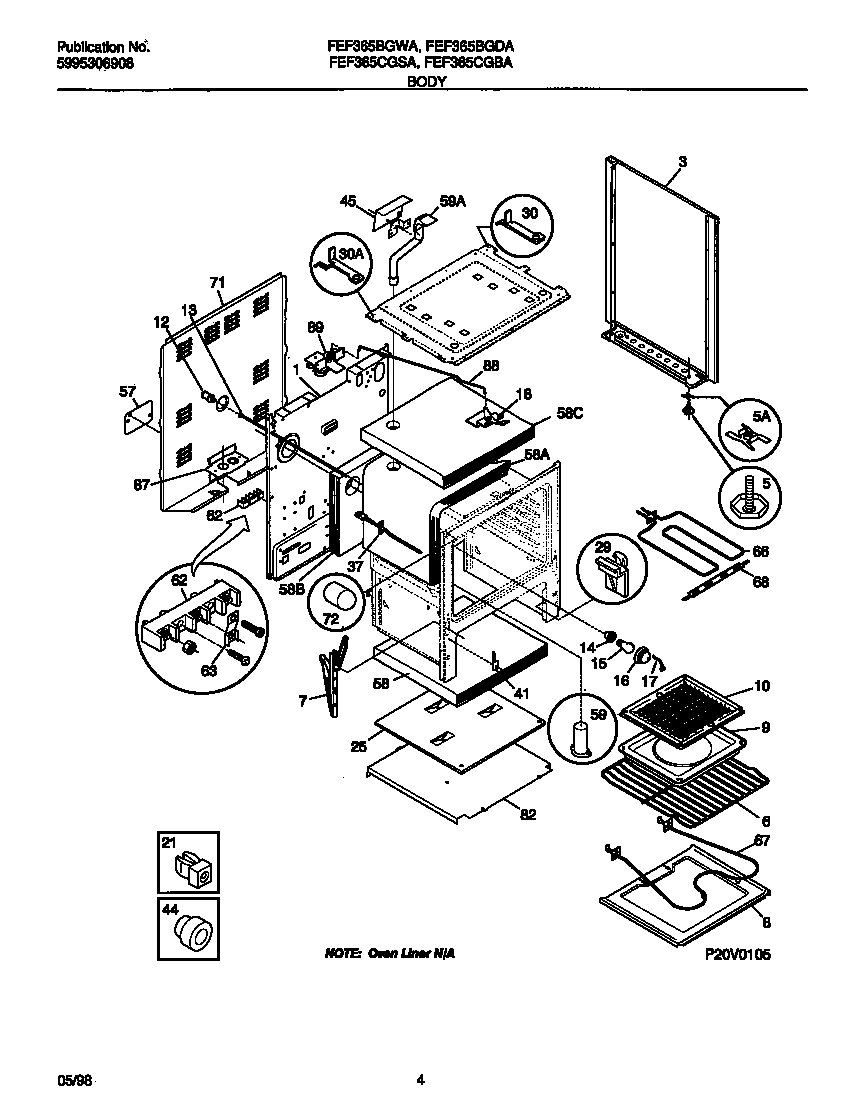

FEF365BGWA 03 – BODY

FEF365BGWA 03 – BODY

Written by

in

FEF365BGWA 03 – BODY

Products

PositionProduct
*15374316021105 Frigidaire Oven Screw
*15371NUT, T,TYPE, LEVELING SCREW (NOT ILLUSTRATED)
*15370316116000 Frigidaire Screw
*15369WCI 3934058
*15377WCI 316101600
*15378316205500 Frigidaire Oven Nut
*15376Clip,wiring harness ,green ,main top
*15372BRACKET-MOUNTING,VENT TUBE
*153733203550 Frigidaire Oven Plug
*15375Screw,cup pt ,8-18 x 0.375 ,chrome
*15366WCI 316081029
1WCI 316080801
3WCI 316081028
5SCREW-LEVELING
6316067902 Frigidaire Oven Rack
7WCI 316007002
8PANEL-OVEN BOTTOM
9WCI 316073800
10WCI 3205234
12SWITCH-OVEN LIGHT, DOOR FRAME
13WCI 316026800
14316116400 Frigidaire Oven Light Socket
15316538904 Frigidaire Oven Lamp Light
165304524341 Frigidaire Lens
17316087500 Frigidaire Oven Retainer
18WCI 316036300
21SPACER-BODYSIDE, (8)
25WCI 3200848
293051162 Frigidaire Oven Range Front Broiler Drawer Glide
30BRACKET-HINGE, MAIN TOP, LH
30BRACKET-HINGE, MAIN TOP RH
375304497424 Frigidaire Oven Temperature Sensor Probe Kit
41WCI 3131570
45WCI 316066100
57WCI 316081101
58316403803 Frigidaire Insulation
58INSULATION, OVEN TOP
58WCI 316054200
58INSULATION, OVEN WRAPPER
59WCI 316023601
59WCI 316073602
625304409888 Frigidaire Oven Terminal Block with Hardware
63PLATE=GROUND STRAP
665303051140 Frigidaire Broil Element
67316075103 Frigidaire Oven Bake Element
68316203400 Frigidaire Oven Support
71WCI 316015805
72COVER-LIGHT/SWITCH ROD
82WCI 5303289913
87316081200 Frigidaire Oven Bracket
88WCI 316026400
89WCI 316028101
