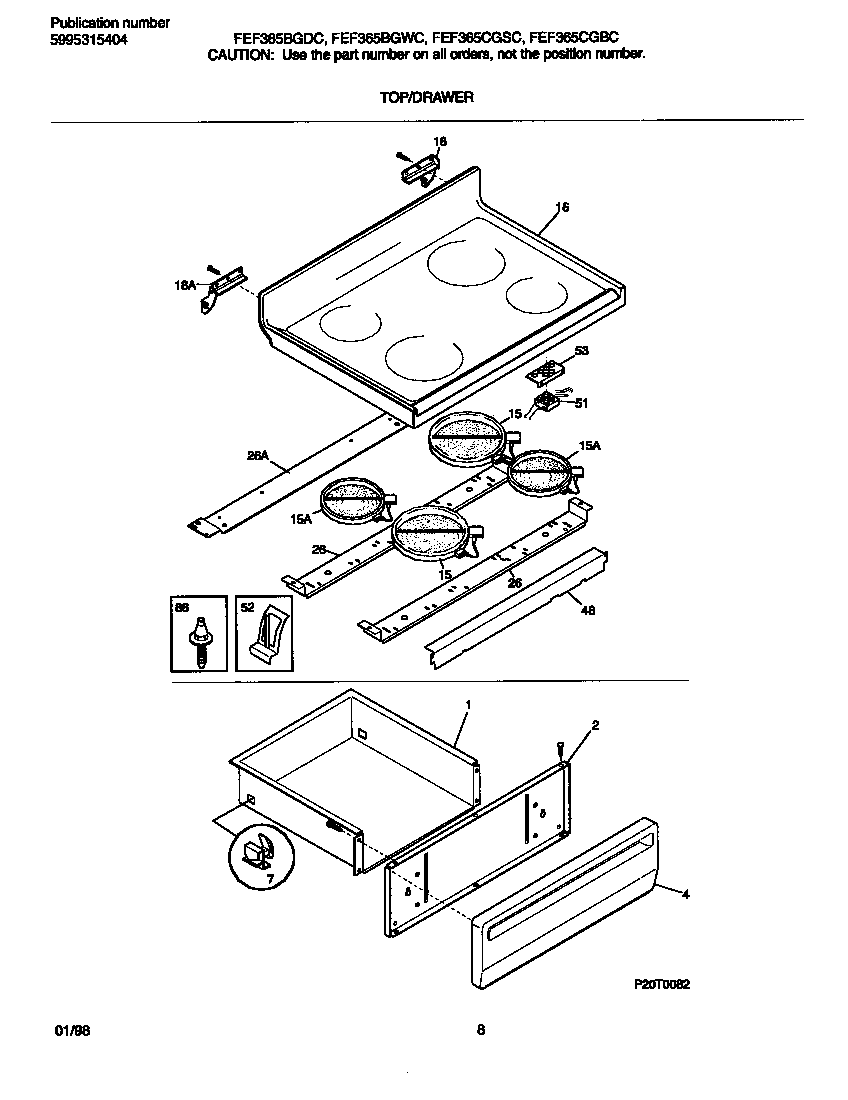

FEF365BGWC 04 – TOP/DRAWER

Products

Position	Product
*12656	Clip,wiring harness ,green ,main top
*12659	WCI 5309951550
*12653	316021109 Frigidaire Oven Screw
*12652	Screw,cup pt ,8-18 x 0.375 ,chrome
*12658	WCI 5303280311
*12657	WCI 316089600
1	DRAWER-UTILITY
2	SHIELD-PNL
4	WCI 316084405
7	3051163 Frigidaire Oven Range Rear Broiler Drawer Glide
10	WCI 5303280308
15	318198817 Frigidaire Oven Element
15	318198834 Frigidaire Oven Element
16	WCI 316098103
18	HINGE-MAIN TOP (LH)
18	HINGE-MAIN TOP (RH)
26	WCI 316099101
26	WCI 316099201
44	3131903 Frigidaire Door/Drawer Bumper
48	WCI 316100200
51	WCI 80142193
52	Clip,element mtg
53	WCI 316099300
60	316021105 Frigidaire Oven Screw
88	316099500 Frigidaire Oven Pin
