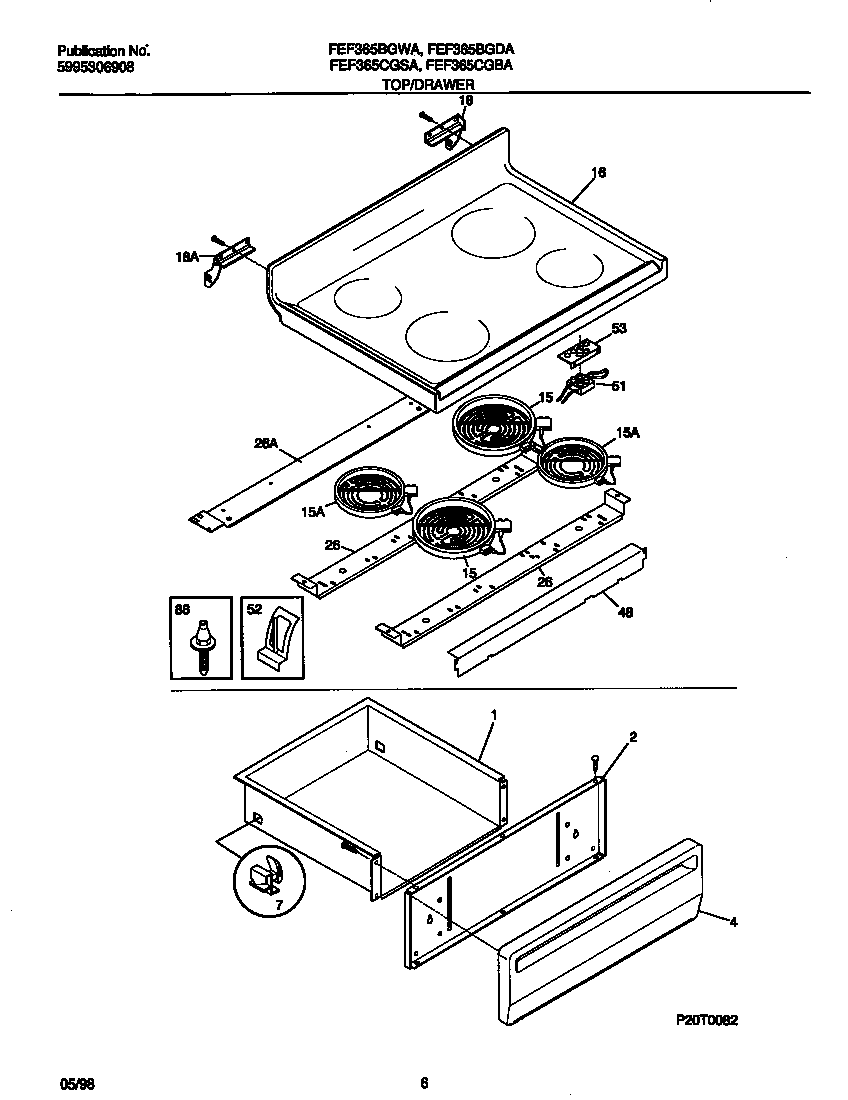

FEF365CGSA 04 – TOP/DRAWER

FEF365CGSA 04 – TOP/DRAWER

Written by

in

FEF365CGSA 04 – TOP/DRAWER

Products

PositionProduct
*15382RIVET-POP, WARING-PLATE
*15385WCI 316089600
*15386WCI 5303280311
*15387WCI 5309951550
*15384Clip,wiring harness ,green ,main top
*15383Screw,cup pt ,8-18 x 0.375 ,chrome
*15379316021109 Frigidaire Oven Screw
*15381316021105 Frigidaire Oven Screw
1DRAWER-UTILITY
2SHIELD-PNL
4WCI 316084405
73051163 Frigidaire Oven Range Rear Broiler Drawer Glide
15A318198817 Frigidaire Oven Element
15B318198834 Frigidaire Oven Element
16Panel-main top,white ,smooth top assy
18HINGE-MAIN TOP (RH)
18HINGE-MAIN TOP (LH)
26WCI 316099101
26WCI 316099201
48WCI 316100200
52Clip,element mtg
53WCI 316099300
88316099500 Frigidaire Oven Pin
