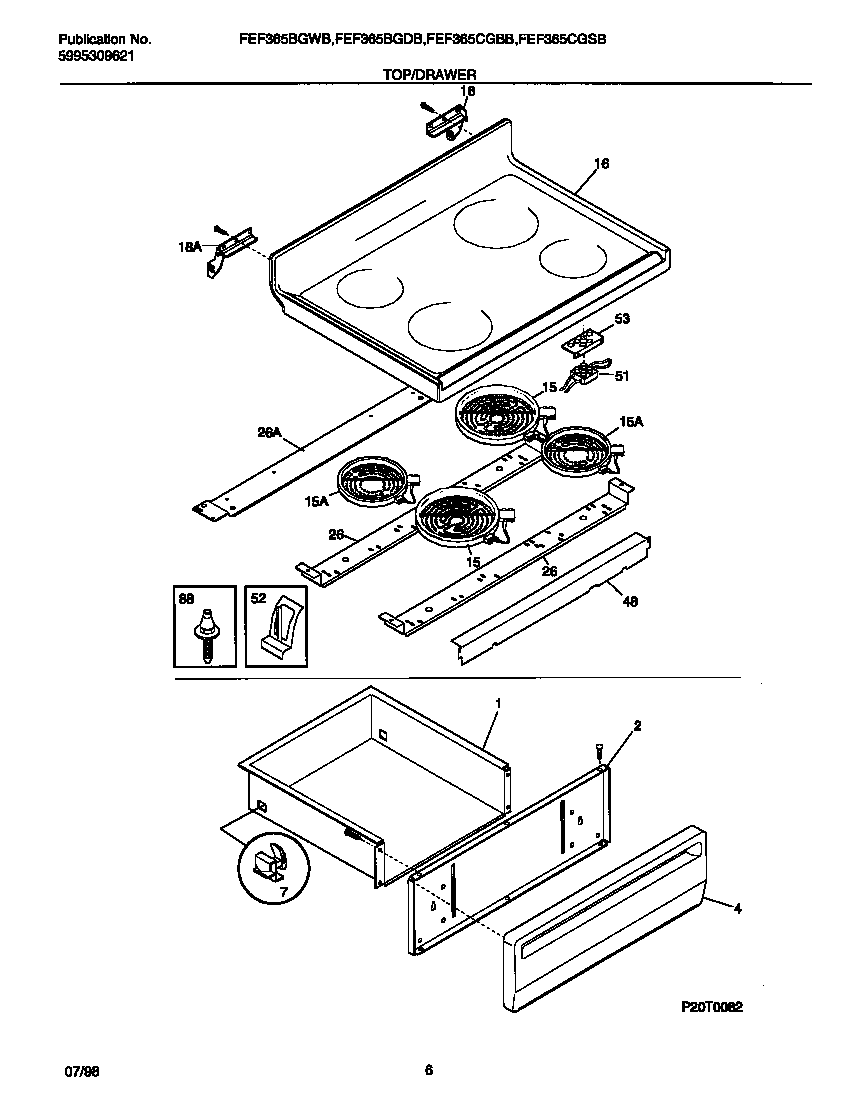

FEF365CGSB 04 – TOP/DRAWER

FEF365CGSB 04 – TOP/DRAWER

Written by

in

FEF365CGSB 04 – TOP/DRAWER

Products

PositionProduct
*37295RIVET-POP, WARING-PLATE
*37303WCI 5309951550
*37301WCI 316089600
*37302WCI 5303280311
*37300Clip,wiring harness ,green ,main top
*37296Screw,cup pt ,8-18 x 0.375 ,chrome
*37299316021109 Frigidaire Oven Screw
1DRAWER-UTILITY
2SHIELD-PNL
4WCI 316084405
73051163 Frigidaire Oven Range Rear Broiler Drawer Glide
15318198817 Frigidaire Oven Element
15318198834 Frigidaire Oven Element
16Panel-main top,white ,smooth top assy
18HINGE-MAIN TOP (LH)
18HINGE-MAIN TOP (RH)
26WCI 316099201
26WCI 316099101
48WCI 316100200
51WCI 316005100
52Clip,element mtg
53WCI 316099300
88316099500 Frigidaire Oven Pin
