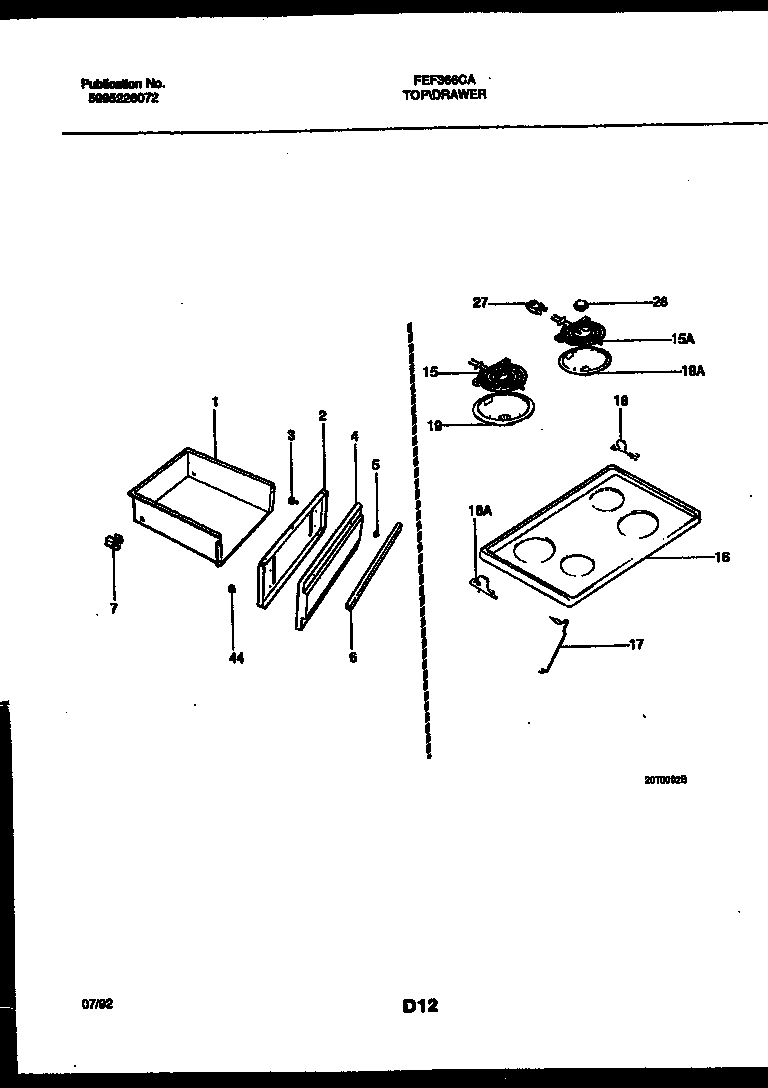

FEF366CASA 05 – COOKTOP AND DRAWER PARTS

Products

Position	Product
1	DRAWER-UTILITY
2	SHIELD-PNL
3	SCREW-DRAWER HANDLE, 8 TRUSS HEAD, 10-16 X 1/2
4A	SCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT ILLUSTRATED)
4	PNL-DRAWER (WHTE)
5	FSTNR, SPACER (2)
6	HANDLE-DRAWER, WHITE
7	3051163 Frigidaire Oven Range Rear Broiler Drawer Glide
15A	318372211 Frigidaire Oven 6" Electric Range Burner Kit
15	316442301 Frigidaire Oven 8 Coil Element 2600W
16	WCI 5303013511
17	ROD-MAIN SUPPORT (2)
18A	BRACKET-HINGE,MAIN TOP LH
18	BRACKET-HINGE,MAIN TOP RH
19A	316048414 Frigidaire Oven Range Chrome 6" Drip Bowl
19	316048413 Frigidaire Oven Range Chrome 8" Drip Bow
27	5303935058 Frigidaire Oven Burner Receptacle Kit
28	5303017715 Frigidaire Medallion
44	3131903 Frigidaire Door/Drawer Bumper
