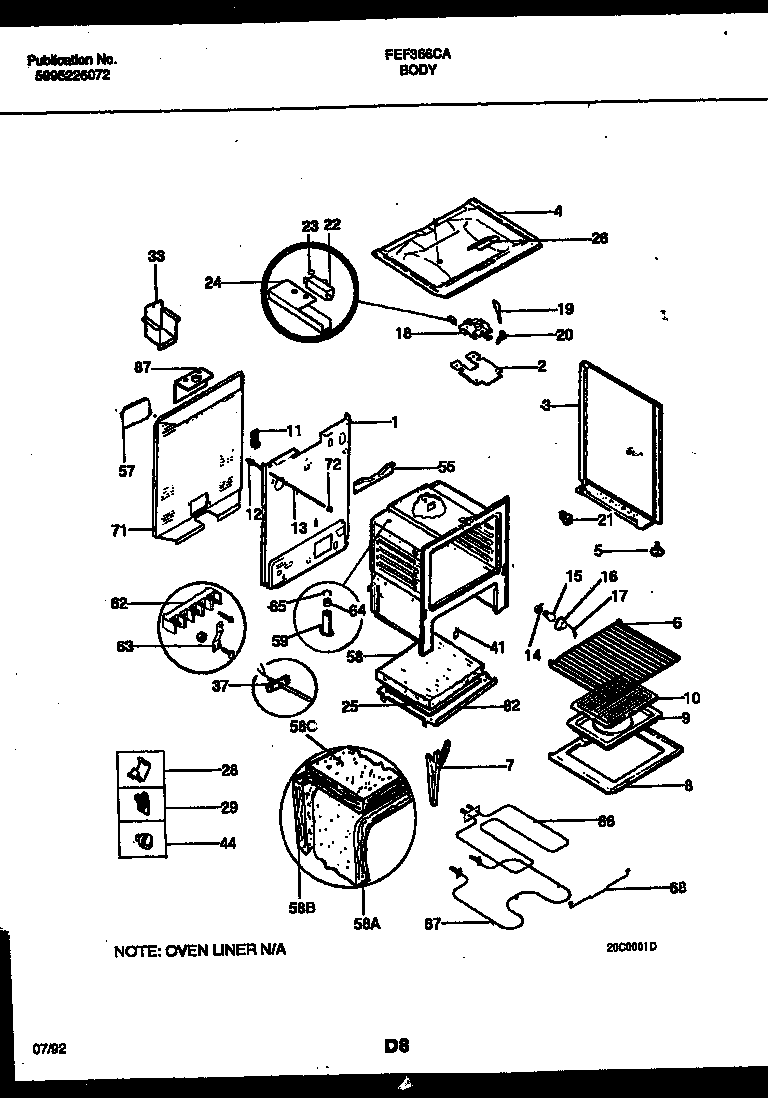

FEF366CASB 03 – BODY PARTS

Products

Position	Product
1A	FASTENER-EDGE MTG (NOT ILLUSTRATED)
1	WCI 3203082
2	SHIELD-LATCH (NON-ILLUSTRATED)
3B	SHIELD, HEAT, BODY SIDE (NOT ILLUSTRATED)
3A	PNL-B/S-LH-WHITE
3	PNL-B/S-RH-WHITE
4	WCI 5303271658
5B	NUT, T,TYPE, LEVELING SCREW (NOT ILLUSTRATED)
5	SCREW-LEVELING
5A	ANTI-TIP KIT (NOT ILLUSTRATED)
6	316067902 Frigidaire Oven Rack
7	WCI 316007002
8	PANEL-OVEN BOTTOM
9	PAN-BROILER
10	WCI 5303131356
11	WCI 5303131289
12	SWITCH-OVEN LITE DOOR
13	WCI 5303269501
14	316116400 Frigidaire Oven Light Socket
15	316538904 Frigidaire Oven Lamp Light
16	5304524341 Frigidaire Lens
17	RETAINER-GLASS
18	WCI 5303015361
19	WCI 5303131357
20	WCI 316029200
20A	WCI 08013188
21	SPACER-BODYSIDE, (8)
22A	STUD SPACER (2) (NON-ILLUSTRATED)
22	SWITCH-LATCH
23	FSTNR-PUSH ON
24	SHIELD-LATCH
25	WCI 3200848
26	WCI 08067757
28	WCI 3051367
29	3051162 Frigidaire Oven Range Front Broiler Drawer Glide
33	WCI 3203582
37	5304497424 Frigidaire Oven Temperature Sensor Probe Kit
41	WCI 3131570
44	3131903 Frigidaire Door/Drawer Bumper
55	COVER-FLUE
57	COVER-ACCESS
