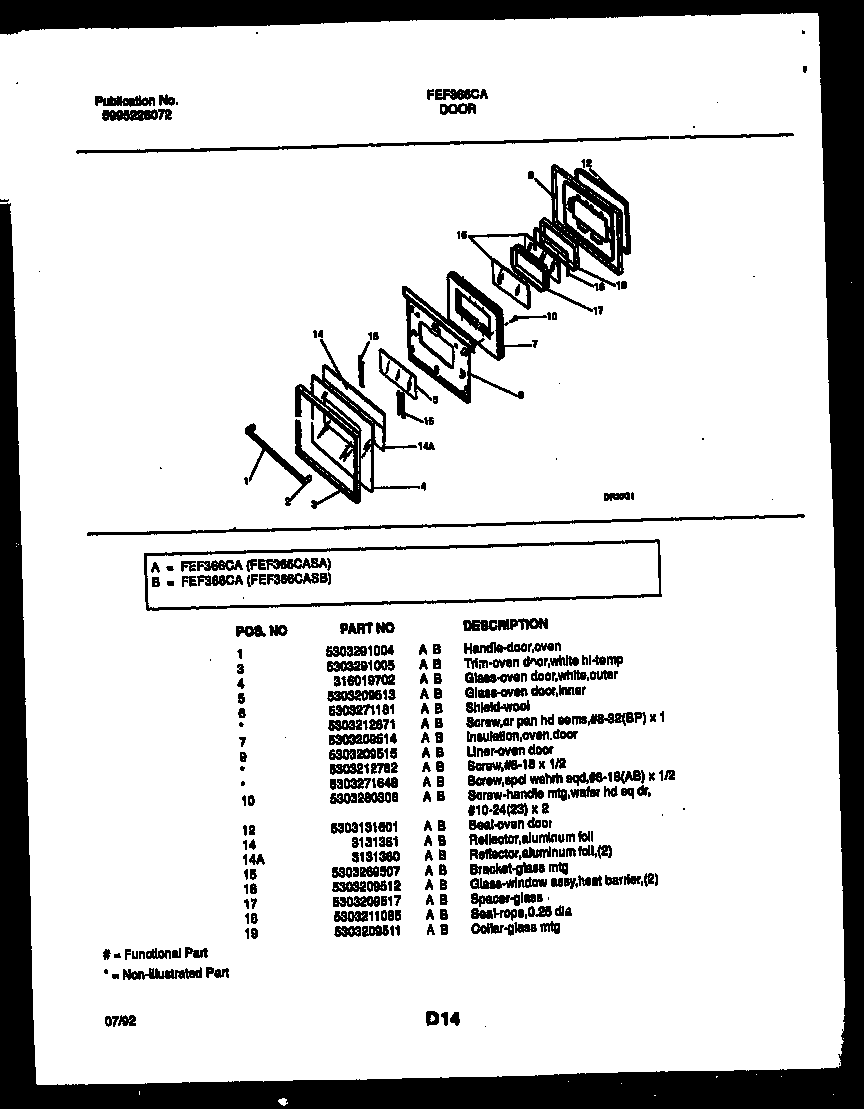

FEF366CASB 06 – DOOR PARTS

FEF366CASB 06 – DOOR PARTS

Written by

in

FEF366CASB 06 – DOOR PARTS

Products

PositionProduct
1WCI 5303291004
3WCI 5303291005
4WCI 316019702
5GLASS-OVEN DOOR, INNER
6SHIELD-INSULATION, WHITE
6ASCREW, CR PAN HD SEMS, 8-32BP X 1.00
7INSULATION-OVEN DOOR
9A5303300265 Frigidaire Oven Screw
9B5303271648 Frigidaire Oven Screw
9WCI 5303209515
10WCI 5303280308
125303131601 Frigidaire Oven Seal
14ALUM FOIL-B/G GLASS
14A5303208655 Frigidaire Reflector Assembly
15BRKT GLASS
16GLASS-OVEN DOOR, HEAT BARRIER, (2)
17WCI 5303209517
18SEAL-ROPE, 0.25 DIA
19WCI 5303209511
