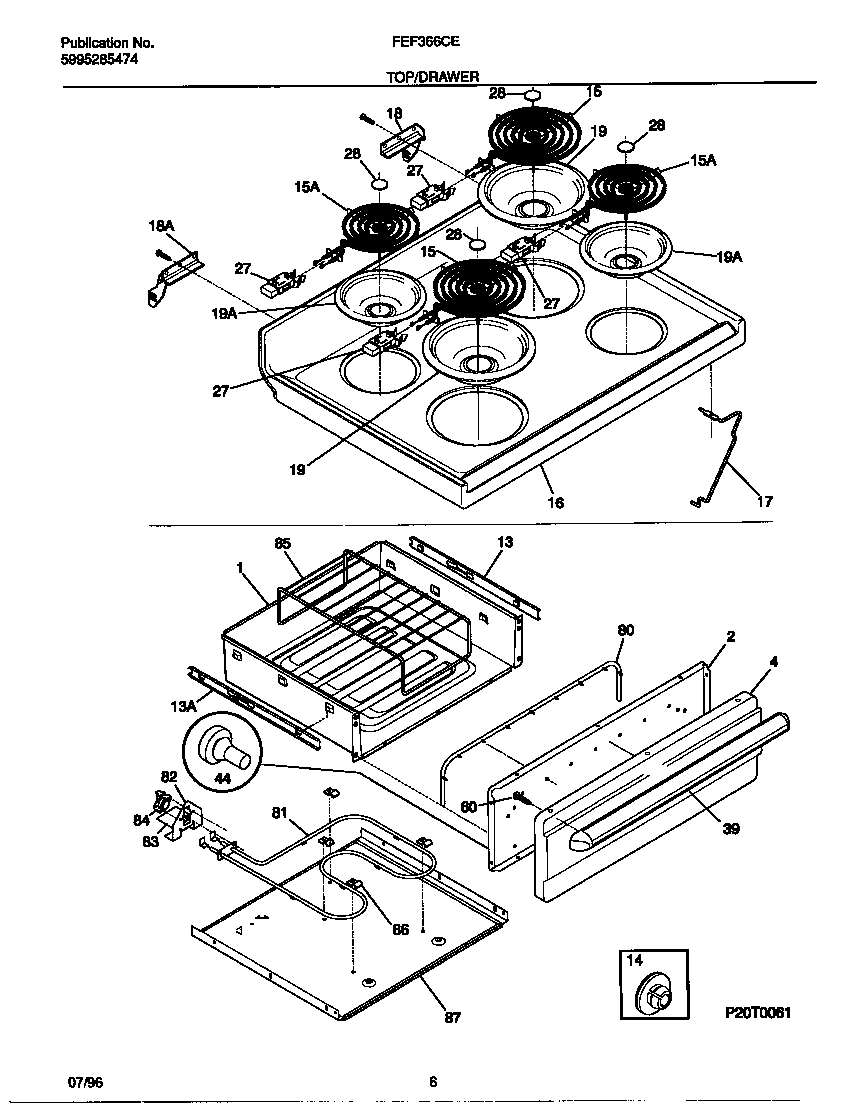

FEF366CETA 04 – TOP/DRAWER

FEF366CETA 04 – TOP/DRAWER

Written by

in

FEF366CETA 04 – TOP/DRAWER

Products

PositionProduct
*62246RIVET-POP, WARING-PLATE
*62250131243700 Frigidaire Screw
*62247WCI 316001725
*62249WCI 5303280311
*62251WCI 5303288574
*62248Screw,cup pt ,8-18 x 0.375 ,chrome
1WCI 316094601
2WCI 316092901
4WCI 316056206
4SCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT ILLUSTRATED)
13WCI 316096501
13WCI 316096500
14WCI 3206216
15316442301 Frigidaire Oven 8 Coil Element 2600W
15318372211 Frigidaire Oven 6" Electric Range Burner Kit
16WCI 316020908
17316057601 Frigidaire Oven Rod
18HINGE-MAIN TOP (LH)
18HINGE-MAIN TOP (RH)
19PAN-SURFACE ELEMENT,ALMOND ,SMALL/6 INCH,(2)
19PAN-SURFACE ELEMENT,ALMOND ,LARGE/8 INCH,(2)
275303935058 Frigidaire Oven Burner Receptacle Kit
28A5303017715 Frigidaire Medallion
28BWCI 5303296595
39WCI 316026104
443131903 Frigidaire Door/Drawer Bumper
60316089500 Frigidaire Oven Screw
80WCI 316093000
81WCI 316093100
82316093200 Frigidaire Bracket
83WCI 316093300
84WCI 316093500
85807328301 Frigidaire Oven Rack
86316095800 Frigidaire Oven Clip
87WCI 316091902
