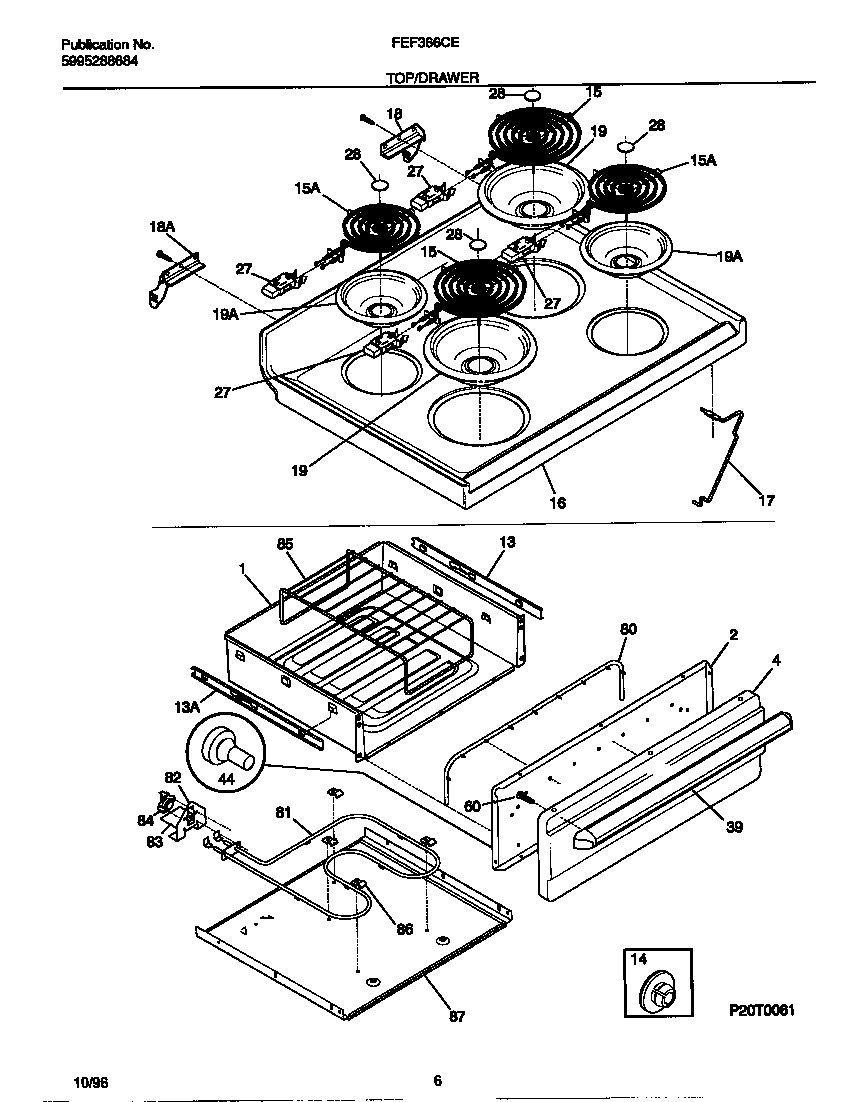

FEF366CETB 04 – TOP/DRAWERadmin2025-04-26T08:55:22+00:00FEF366CETB 04 – TOP/DRAWER
Products
| Position | Product |
|---|
| *29646 | WCI 316001725 |
| *29647 | Screw,cup pt ,8-18 x 0.375 ,chrome |
| *29650 | WCI 5303288574 |
| *29648 | WCI 5303280311 |
| *29649 | 131243700 Frigidaire Screw |
| 1 | WCI 316094601 |
| 2 | WCI 316092901 |
| 4 | WCI 316056206 |
| 4 | SCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT ILLUSTRATED) |
| 13 | WCI 316096500 |
| 13 | WCI 316096501 |
| 14 | WCI 3206216 |
| 15 | 316442301 Frigidaire Oven 8 Coil Element 2600W |
| 15 | 318372211 Frigidaire Oven 6" Electric Range Burner Kit |
| 16 | WCI 316020908 |
| 17 | 316057601 Frigidaire Oven Rod |
| 18B | RIVET-POP, WARING-PLATE |
| 18 | HINGE-MAIN TOP (LH) |
| 18A | HINGE-MAIN TOP (RH) |
| 19 | PAN-SURFACE ELEMENT,ALMOND ,SMALL/6 INCH,(2) |
| 19 | PAN-SURFACE ELEMENT,ALMOND ,LARGE/8 INCH,(2) |
| 27 | 5303935058 Frigidaire Oven Burner Receptacle Kit |
| 28A | 5303017715 Frigidaire Medallion |
| 28B | WCI 5303296595 |
| 39 | WCI 316026104 |
| 44 | 3131903 Frigidaire Door/Drawer Bumper |
| 60 | 316089500 Frigidaire Oven Screw |
| 80 | WCI 316093000 |
| 81 | WCI 316093100 |
| 82 | 316093200 Frigidaire Bracket |
| 83 | WCI 316093300 |
| 84 | WCI 316093500 |
| 85 | 807328301 Frigidaire Oven Rack |
| 86 | 316095800 Frigidaire Oven Clip |
| 87 | WCI 316091902 |
