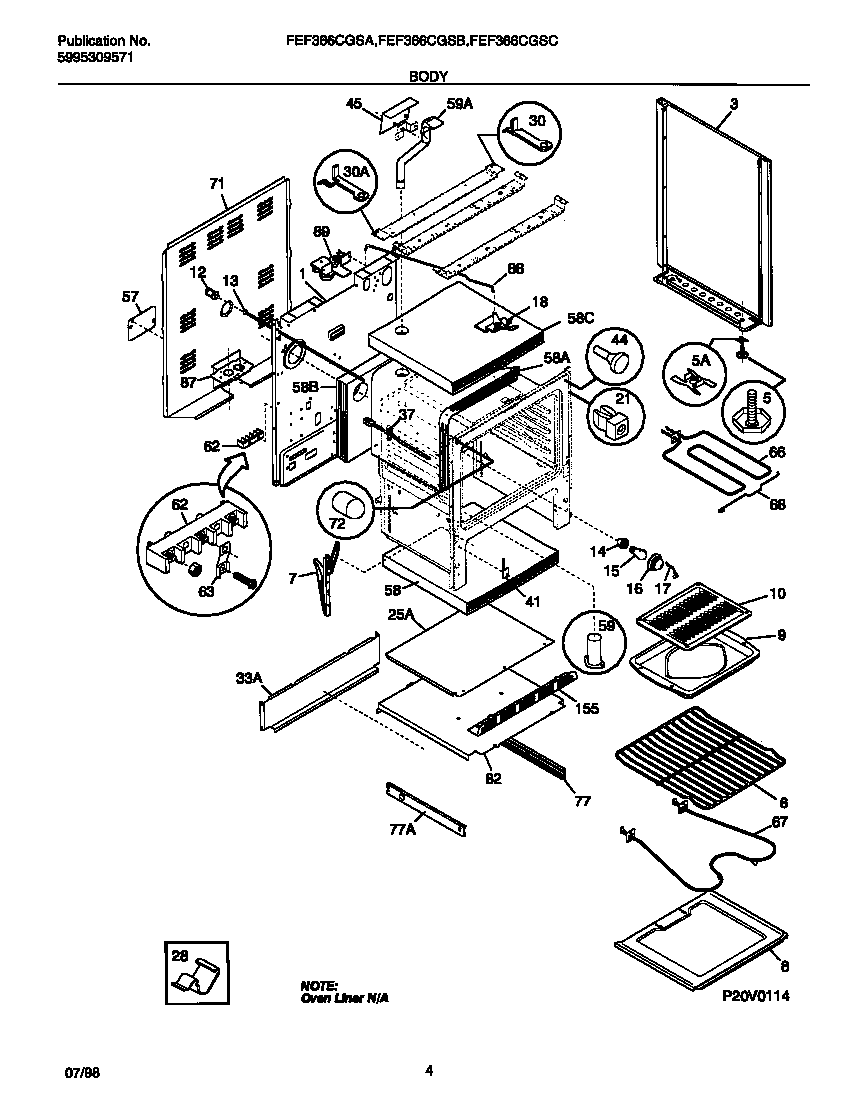

FEF366CGSA 03 – BODY

FEF366CGSA 03 – BODY

Written by

in

FEF366CGSA 03 – BODY

Products

PositionProduct
*37329316021105 Frigidaire Oven Screw
*37325WCI 3934058
*37333316205500 Frigidaire Oven Nut
*37331Clip,wiring harness ,green ,main top
*37332WCI 316101600
*373283203550 Frigidaire Oven Plug
*37330Screw,cup pt ,8-18 x 0.375 ,chrome
*37327BRACKET-MOUNTING,VENT TUBE
*37324WCI 316081029
*37326316116000 Frigidaire Screw
1WCI 316080804
3WCI 316081028
5NUT, T,TYPE, LEVELING SCREW (NOT ILLUSTRATED)
5SCREW-LEVELING
6316067902 Frigidaire Oven Rack
7WCI 316007002
8PANEL-OVEN BOTTOM
9WCI 316073800
10WCI 3205234
12SWITCH-OVEN LIGHT, DOOR FRAME
13WCI 316026800
14316116400 Frigidaire Oven Light Socket
15316538904 Frigidaire Oven Lamp Light
165304524341 Frigidaire Lens
17316087500 Frigidaire Oven Retainer
18WCI 316036300
21SPACER-BODYSIDE, (8)
25WCI 316092400
28CLIP-WIRE
30BRACKET-HINGE, MAIN TOP, LH
30BRACKET-HINGE, MAIN TOP RH
33WCI 316095301
375304497424 Frigidaire Oven Temperature Sensor Probe Kit
41WCI 3131570
443131903 Frigidaire Door/Drawer Bumper
45WCI 316066100
57WCI 316081101
58INSULATION, OVEN TOP
58INSULATION, OVEN WRAPPER
58316403803 Frigidaire Insulation
58316054202 Frigidaire Insulation
59WCI 316023601
59WCI 316073602
625304409888 Frigidaire Oven Terminal Block with Hardware
63PLATE=GROUND STRAP
665303051140 Frigidaire Broil Element
67316075103 Frigidaire Oven Bake Element
68316203400 Frigidaire Oven Support
71WCI 316015805
72COVER-LIGHT/SWITCH ROD
77Rail,drawer ,RH outer
77RAIL-DRAWER,LH,OUTER
82WCI 5303289913
87316081200 Frigidaire Oven Bracket
88WCI 316026400
89WCI 316028103
155WCI 316095201
