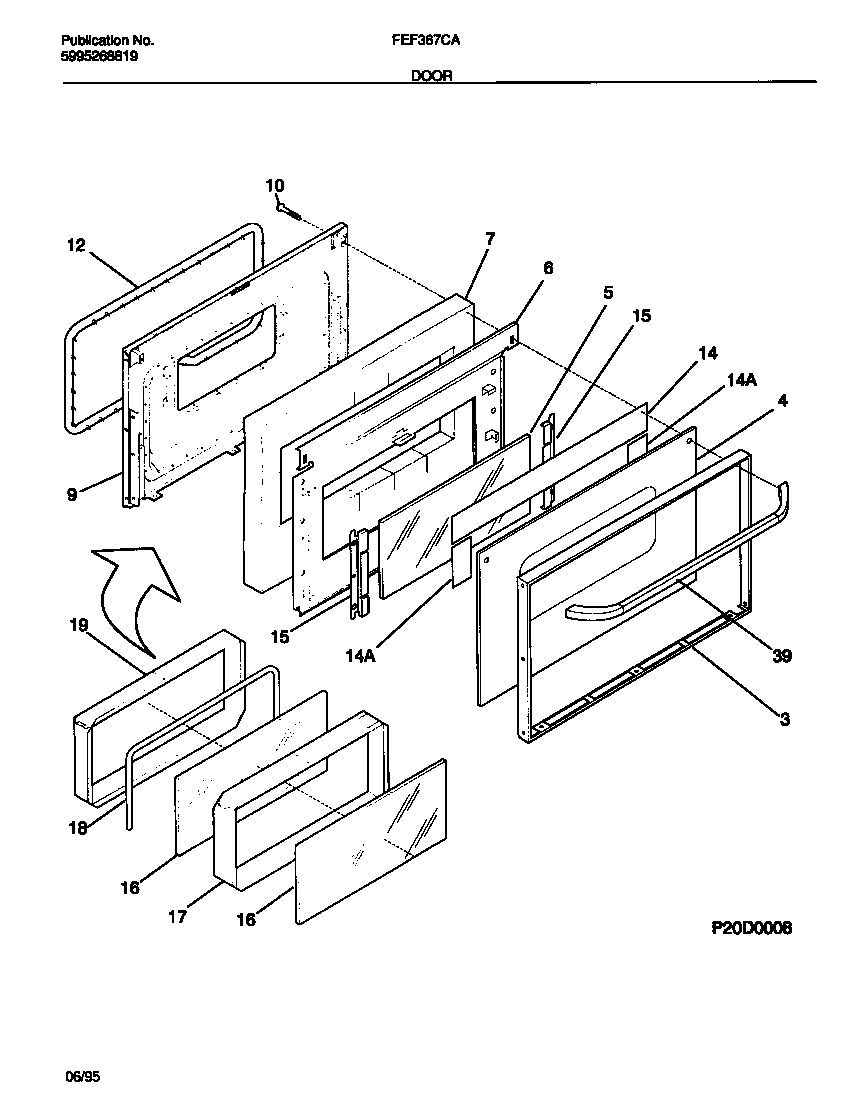

FEF367CABC 05 – DOOR

FEF367CABC 05 – DOOR

Written by

in

FEF367CABC 05 – DOOR

Products

PositionProduct
*06494RIVET-POP, WARING-PLATE
*06495WCI 316065300
*06496SCREW, CR PAN HD SEMS, 8-32BP X 1.00
*064975303300265 Frigidaire Oven Screw
*064985303285179 Frigidaire Oven Door Screw
3WCI 316067802
4GLASS-OVEN DOOR, BLACK, OUTER
5GLASS-OVEN DOOR, INNER
6SHIELD-INSULATION
7WCI 316076400
9WCI 316066603
10SCREW-OVEN DOOR, WASHER HEAD, 10-24 X 1.81
125303131601 Frigidaire Oven Seal
14REFLECTOR, ALUMINUM FOIL
145303208655 Frigidaire Reflector Assembly
15BRACKET-GLASS MTG
16GLASS-OVEN DOOR, HEAT BARRIER, (2)
17WCI 5303209517
18SEAL-ROPE, 0.25 DIA
19WCI 316067600
395304529996 Frigidaire Handle Kit
