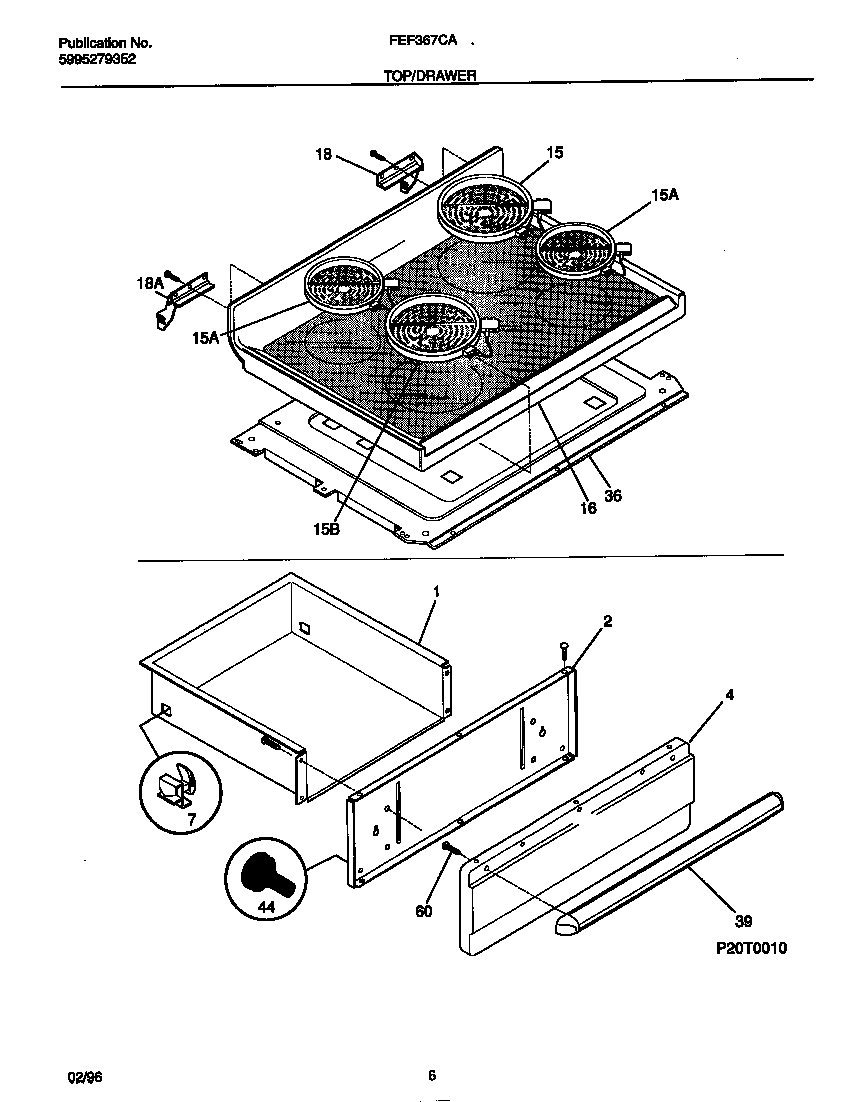

FEF367CASE 04 – TOP/DRAWER

Products

Position	Product
*72447	RIVET-POP, WARING-PLATE
*72448	WCI 316001729
*72449	Screw,cup pt ,8-18 x 0.375 ,chrome
*72451	WCI 5303288574
*72452	WCI 5309951550
*72450	131243700 Frigidaire Screw
1	DRAWER-UTILITY
2	SHIELD-PNL
4	SCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT ILLUSTRATED)
4	PANEL-BROILER, WHITE
7	3051163 Frigidaire Oven Range Rear Broiler Drawer Glide
15	318198817 Frigidaire Oven Element
15	318198834 Frigidaire Oven Element
15	WCI 316049701
16	WCI 316035507
18	HINGE-MAIN TOP (LH)
18	HINGE-MAIN TOP (RH)
36C	WCI 316041001
36B	WCI 316023301
36A	WCI 316033610
39	WCI 316026103
44	3131903 Frigidaire Door/Drawer Bumper
60	WCI 5303280308
