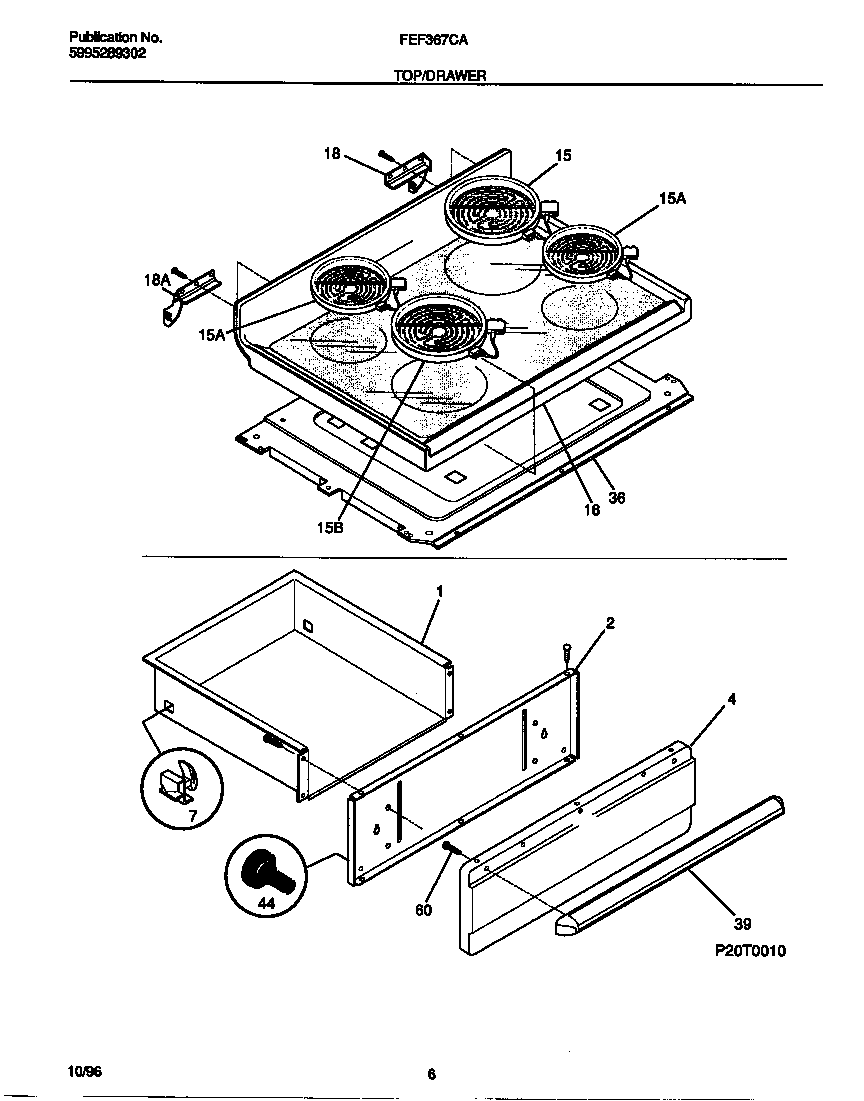

FEF367CASG 04 – TOP/DRAWER

FEF367CASG 04 – TOP/DRAWER

Written by

in

FEF367CASG 04 – TOP/DRAWER

Products

PositionProduct
*55729RIVET-POP, WARING-PLATE
*55734WCI 5309951550
*55732131243700 Frigidaire Screw
*55735WCI 316001729
*55731WCI 5303280311
*55733WCI 5303288574
*55728LIGHT/LAMP, IND, HOT SURFACE
*55730Screw,cup pt ,8-18 x 0.375 ,chrome
1DRAWER-UTILITY
2SHIELD-PNL
4SCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT ILLUSTRATED)
4PANEL-BROILER, WHITE
73051163 Frigidaire Oven Range Rear Broiler Drawer Glide
15WCI 316049701
15318198817 Frigidaire Oven Element
15318198834 Frigidaire Oven Element
16WCI 316035591
18HINGE-MAIN TOP (LH)
18HINGE-MAIN TOP (RH)
36BWCI 316023301
36CWCI 316041001
36AWCI 316033610
39WCI 316026103
443131903 Frigidaire Door/Drawer Bumper
60316089500 Frigidaire Oven Screw
