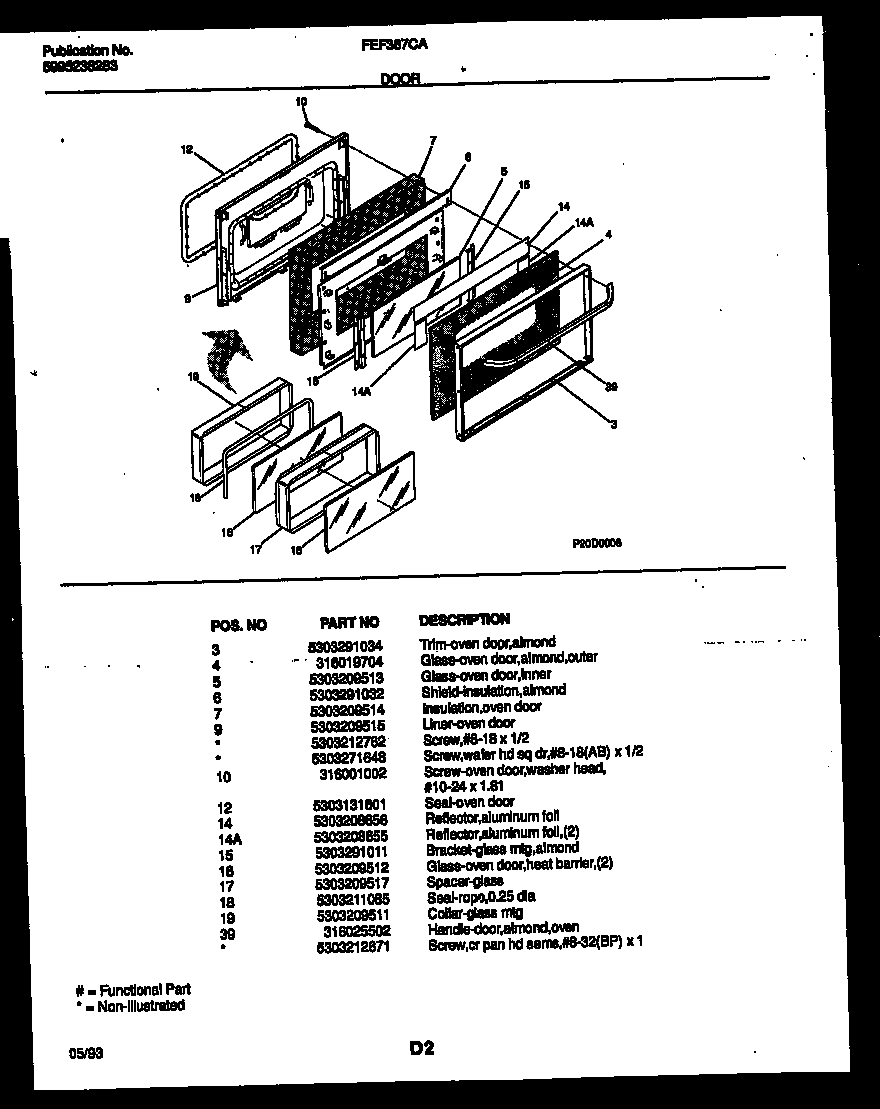

FEF367CATA 05 – DOOR PARTS

FEF367CATA 05 – DOOR PARTS

Written by

in

FEF367CATA 05 – DOOR PARTS

Products

PositionProduct
*76404SCREW, CR PAN HD SEMS, 8-32BP X 1.00
3WCI 5303291034
4WCI 316019704
5GLASS-OVEN DOOR, INNER
6SHIELD-INSULATION, ALMOND
7INSULATION-OVEN DOOR
9B5303271648 Frigidaire Oven Screw
9A5303300265 Frigidaire Oven Screw
9WCI 5303209515
10SCREW-OVEN DOOR, WASHER HEAD, 10-24 X 1.81
125303131601 Frigidaire Oven Seal
14REFLECTOR, ALUMINUM FOIL
14A5303208655 Frigidaire Reflector Assembly
15WCI 5303291011
16GLASS-OVEN DOOR, HEAT BARRIER, (2)
17WCI 5303209517
18SEAL-ROPE, 0.25 DIA
19WCI 5303209511
39WCI 316025502
