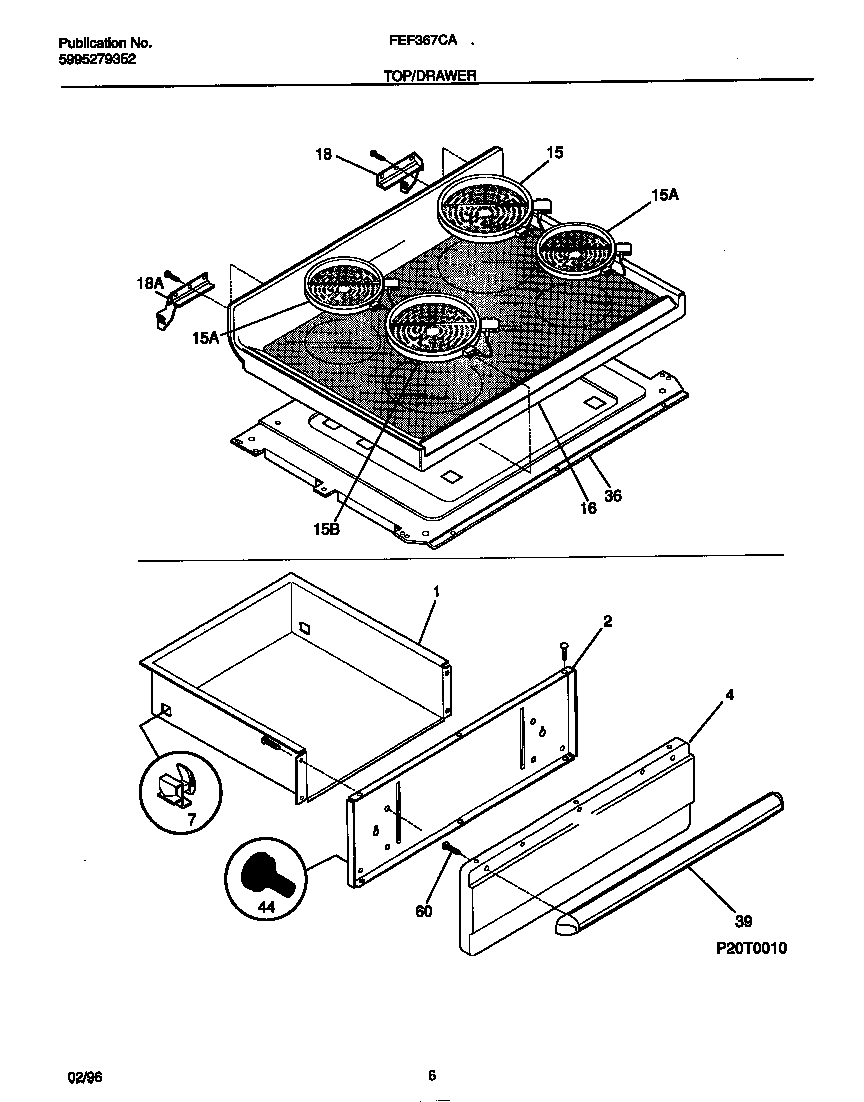

FEF367CATE 04 – TOP/DRAWER

FEF367CATE 04 – TOP/DRAWER

Written by

in

FEF367CATE 04 – TOP/DRAWER

Products

PositionProduct
*72447RIVET-POP, WARING-PLATE
*72450131243700 Frigidaire Screw
*72452WCI 5309951550
*72451WCI 5303288574
*72449Screw,cup pt ,8-18 x 0.375 ,chrome
*72448WCI 316001729
1DRAWER-UTILITY
2SHIELD-PNL
4SCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT ILLUSTRATED)
4WCI 316056206
73051163 Frigidaire Oven Range Rear Broiler Drawer Glide
15318198817 Frigidaire Oven Element
15318198834 Frigidaire Oven Element
15WCI 316049701
16WCI 316035508
18HINGE-MAIN TOP (LH)
18HINGE-MAIN TOP (RH)
36CWCI 316041001
36BWCI 316023301
36AWCI 316033610
39WCI 316026102
443131903 Frigidaire Door/Drawer Bumper
60WCI 5303280308
