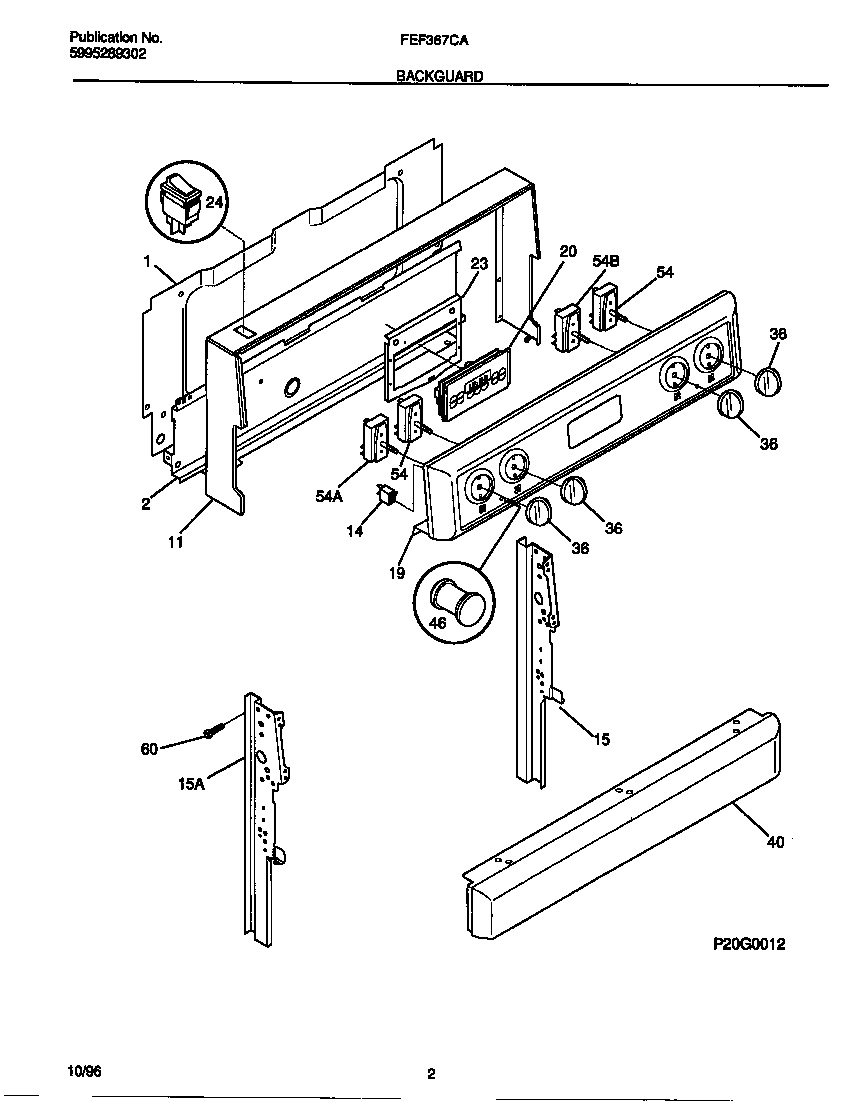

FEF367CATG 02 – BACKGUARD

FEF367CATG 02 – BACKGUARD

Written by

in

FEF367CATG 02 – BACKGUARD

Products

PositionProduct
*55720316021105 Frigidaire Oven Screw
*55721Screw,cup pt ,8-18 x 0.375 ,chrome
*55722WCI 5303288574
*55723SCREW-SWITCH MTG, 8-32 X 3/16, SW TO CNTL PNL, (8)
1WCI 316081601
2WCI 316015905
11WCI 316083701
14316022503 Frigidaire Light Lamp P-1
15WCI 316023110
15WCI 316023111
19WCI 316024427
20CLOCK/TIMER, EOC, ALMOND, WITH OVERLAY
23WCI 316033203
24SWITCH-ROCKER,OVEN LIGHT ,ALMOND
36KNOB-CONTROL, INFINITE SW, ALMOND, (4)
40PANEL-MANIFOLD
46ALENS-LIGHT/LAMP, INDICATOR
46B318228310 Frigidaire Oven Lens
54WCI 316023700
545303935086 Frigidaire Oven Top Burner Switch Kit
54316436001 Frigidaire Oven Range Infinite Burner Switch
