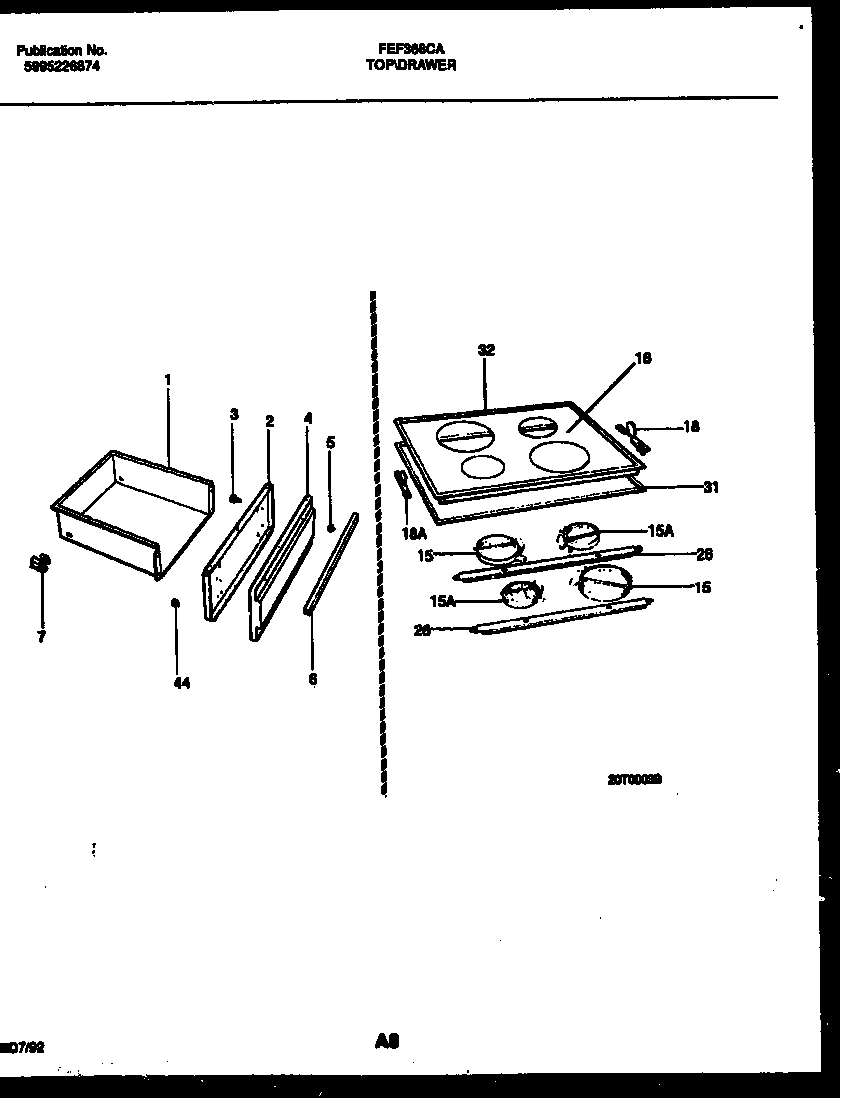

FEF368CASB 05 – COOKTOP AND DRAWER PARTS

FEF368CASB 05 – COOKTOP AND DRAWER PARTS

Written by

in

FEF368CASB 05 – COOKTOP AND DRAWER PARTS

Products

PositionProduct
*67148WCI 3015757
1AWCI 5303281584
1DRAWER-UTILITY
2SHIELD-PNL
3SCREW-DRAWER HANDLE, 8 TRUSS HEAD, 10-16 X 1/2
4ASCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT ILLUSTRATED)
4PNL-DRAWER (WHTE)
5FSTNR, SPACER (2)
6HANDLE-DRAWER, WHITE
73051163 Frigidaire Oven Range Rear Broiler Drawer Glide
15BWCI 316001705
15ASMALL ELEMENT ASSY-INCLUDES ELEMENT-LIMIT SWITCH
15318198834 Frigidaire Oven Element
16WCI 316035800
18WCI 5303291056
18AWCI 5303291055
26CHANNEL-TOP ELEMENT MTG
31SEAL-GLASS COOKTOP
32WCI 316051501
443131903 Frigidaire Door/Drawer Bumper
