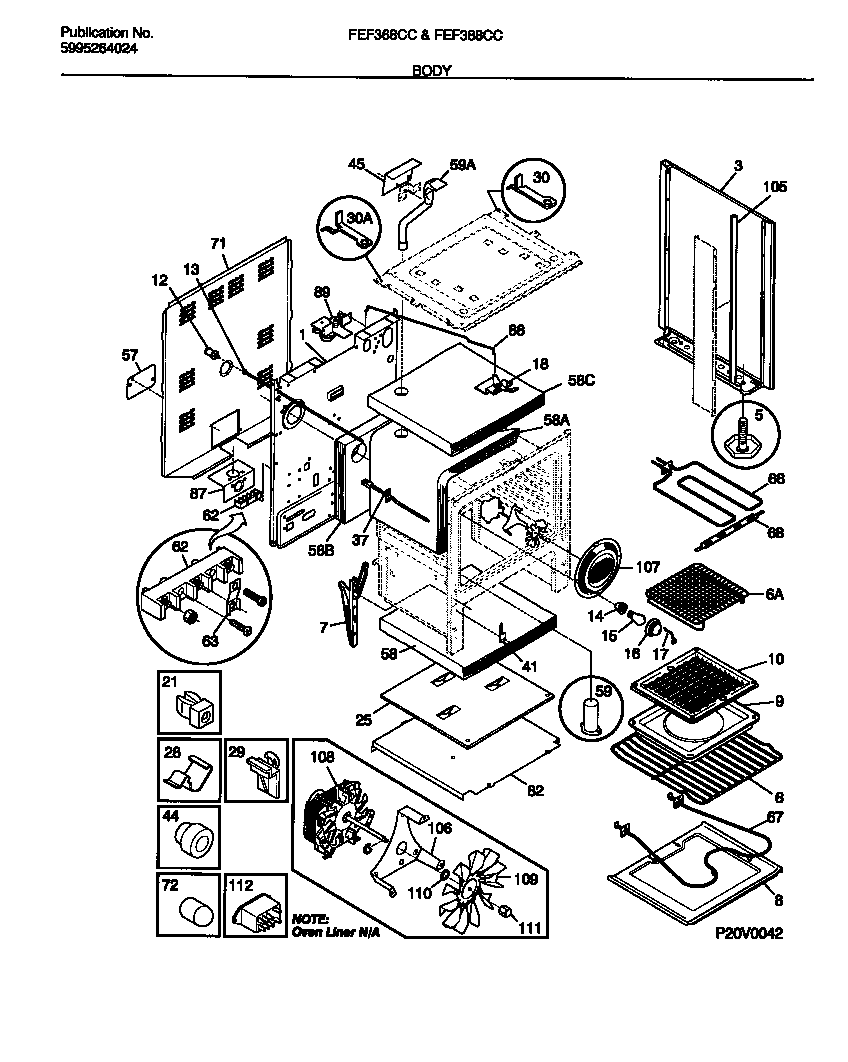

FEF368CCBA 03 – BODY

FEF368CCBA 03 – BODY

Written by

in

FEF368CCBA 03 – BODY

Products

PositionProduct
*38808WCI 5303281584
*38802WCI 316001176
*38804FASTENER-EDGE MTG (NOT ILLUSTRATED)
*38807316205500 Frigidaire Oven Nut
*38806WCI 316075400
*388053203550 Frigidaire Oven Plug
1WCI 316029410
3WCI 316081002
3WCI 316081003
3SHIELD, HEAT, BODY SIDE (NOT ILLUSTRATED)
5BWCI 3934058
5ASCREW-LEVELING
5DNUT, T,TYPE, LEVELING SCREW (NOT ILLUSTRATED)
5C316116000 Frigidaire Screw
6316067902 Frigidaire Oven Rack
7WCI 316007002
8PANEL-OVEN BOTTOM
9WCI 316073800
10WCI 316073900
12SWITCH-OVEN LIGHT, DOOR FRAME
13WCI 316026800
14316116400 Frigidaire Oven Light Socket
15316538904 Frigidaire Oven Lamp Light
165304524341 Frigidaire Lens
17RETAINER-GLASS
18WCI 316036300
21SPACER-BODYSIDE, (8)
25WCI 3200848
28Clip,wiring harness ,green ,main top
293051162 Frigidaire Oven Range Front Broiler Drawer Glide
30BRACKET-HINGE, MAIN TOP RH
30BRACKET-HINGE, MAIN TOP, LH
375304497424 Frigidaire Oven Temperature Sensor Probe Kit
41WCI 3131570
443131903 Frigidaire Door/Drawer Bumper
45WCI 316066101
57COVER-ACCESS
58316403803 Frigidaire Insulation
58INSULATION, OVEN WRAPPER
58WCI 316054200
58INSULATION, OVEN TOP
59WCI 316073602
59BRACKET-MOUNTING,VENT TUBE
59WCI 316023601
625304409888 Frigidaire Oven Terminal Block with Hardware
63PLATE-GROUND STRAP
665303051140 Frigidaire Broil Element
67316075103 Frigidaire Oven Bake Element
68316203400 Frigidaire Oven Support
71SHIELD, REAR WALL, REAR WALL
72COVER-LIGHT/SWITCH ROD
82SHIELD, OVEN BOTTOM
87WCI 5303206618
88WCI 316026400
89WCI 316028101
