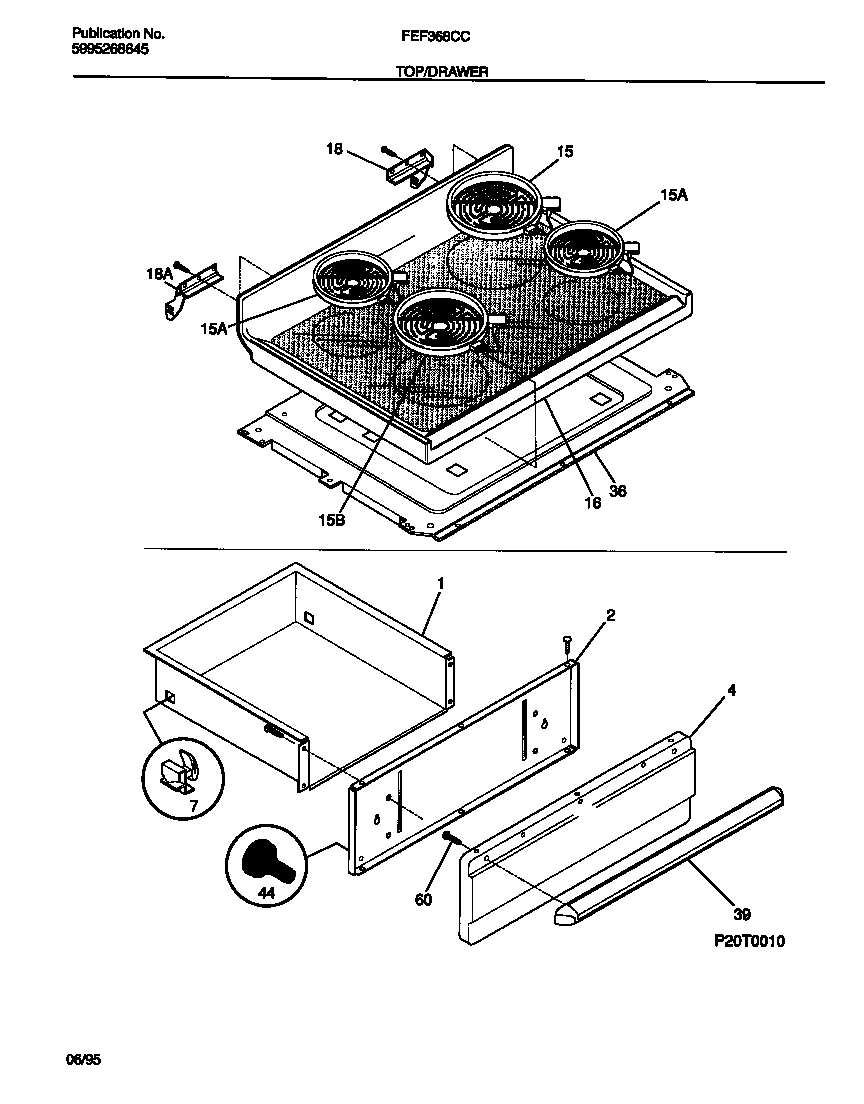

FEF368CCBB 04 – TOP/DRAWER

FEF368CCBB 04 – TOP/DRAWER

Written by

in

FEF368CCBB 04 – TOP/DRAWER

Products

PositionProduct
*13449WCI 5303281379
*13448LENS-LIGHT/LAMP, INDICATOR
*13452WCI 5309951550
*13447LIGHT/LAMP, IND, HOT SURFACE
*13451131243700 Frigidaire Screw
*13450WCI 5303281584
1DRAWER-UTILITY
2SHIELD-PNL
4SCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT ILLUSTRATED)
4WCI 316056207
73051163 Frigidaire Oven Range Rear Broiler Drawer Glide
15A318198834 Frigidaire Oven Element
15BWCI 5303305628
15BLIMITER SWITCH, LARGE/8 INCH (NOT ILLUSTRATED)
15A318178110 Frigidaire Oven Range 6" Surface Element
15WCI 316049700
16WCI 316035530
18HINGE-MAIN TOP (LH)
18HINGE-MAIN TOP (RH)
36CWCI 316041001
36BWCI 316023301
36AWCI 316033610
39WCI 316026100
443131903 Frigidaire Door/Drawer Bumper
60SCREW-DRAWER HANDLE, 8 TRUSS HEAD, 10-16 X 1/2
