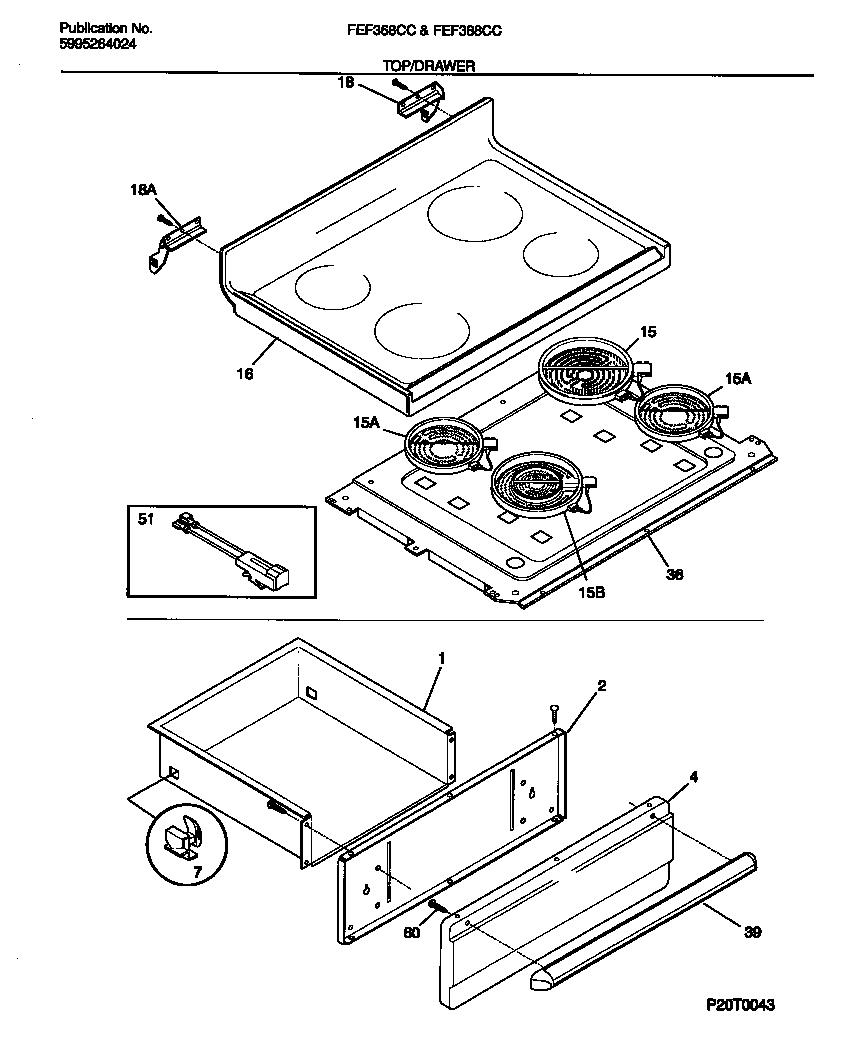

FEF368CCSA 04 – TOP/DRAWER

FEF368CCSA 04 – TOP/DRAWER

Written by

in

FEF368CCSA 04 – TOP/DRAWER

Products

PositionProduct
*38809LENS-LIGHT/LAMP, INDICATOR
*38810WCI 5309951550
*38811131243700 Frigidaire Screw
*38812WCI 5303288574
1DRAWER-UTILITY
2SHIELD-PNL
4PANEL-BROILER, WHITE
4SCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT ILLUSTRATED)
73051163 Frigidaire Oven Range Rear Broiler Drawer Glide
15AWCI 316049700
15BLIMITER SWITCH, LARGE/8 INCH (NOT ILLUSTRATED)
15WCI 5303305628
15BLIMITER SWITCH, LARGE/8“, DUAL COIL (NON-ILLUSTRATED)
15318178110 Frigidaire Oven Range 6" Surface Element
15A318198834 Frigidaire Oven Element
16WCI 316035531
18HINGE-MAIN TOP (RH)
18HINGE-MAIN TOP (LH)
36AWCI 316033609
36CWCI 316041001
36BWCI 316023301
39WCI 316026101
51LIGHT/LAMP, IND, HOT SURFACE
60WCI 5303281584
