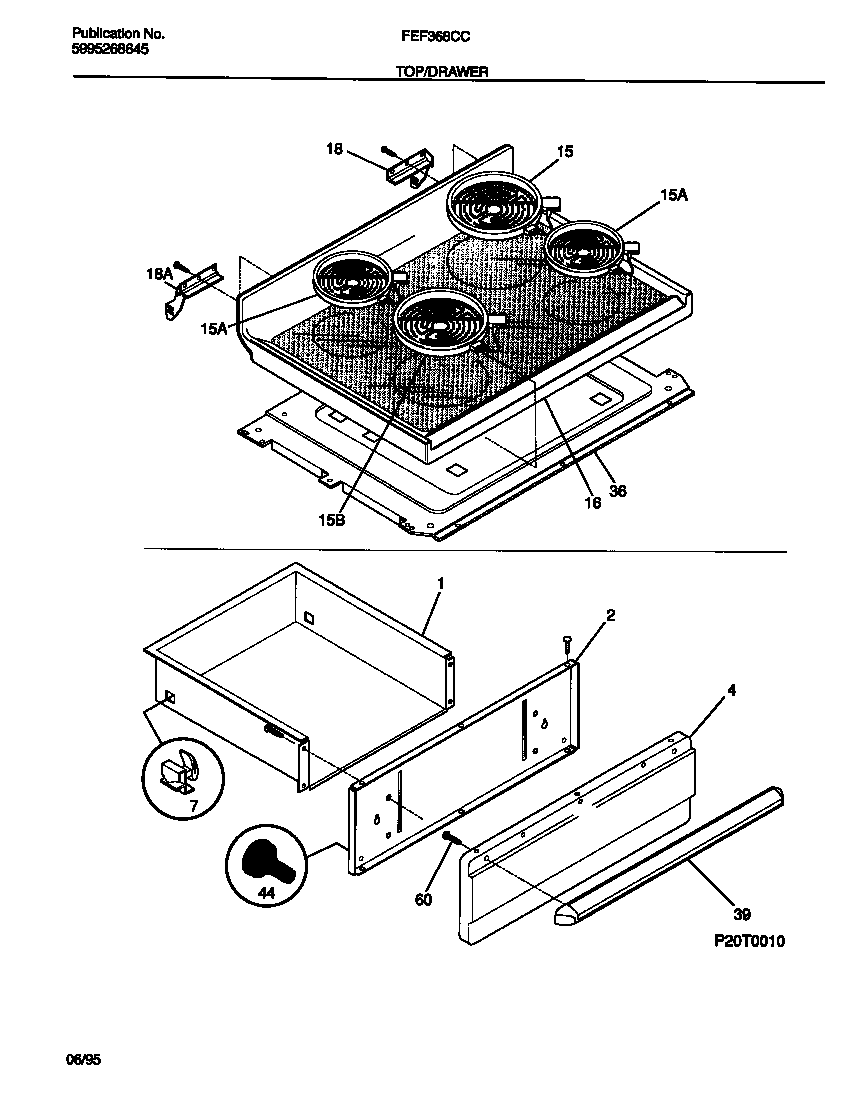

FEF368CCSB 04 – TOP/DRAWER

Products

Position	Product
*13449	WCI 5303281379
*13448	LENS-LIGHT/LAMP, INDICATOR
*13452	WCI 5309951550
*13447	LIGHT/LAMP, IND, HOT SURFACE
*13451	131243700 Frigidaire Screw
*13450	WCI 5303281584
1	DRAWER-UTILITY
2	SHIELD-PNL
4	PANEL-BROILER, WHITE
4	SCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT ILLUSTRATED)
7	3051163 Frigidaire Oven Range Rear Broiler Drawer Glide
15A	318178110 Frigidaire Oven Range 6" Surface Element
15B	WCI 5303305628
15	WCI 316049700
15A	318198834 Frigidaire Oven Element
15B	LIMITER SWITCH, LARGE/8 INCH (NOT ILLUSTRATED)
16	WCI 316035531
18	HINGE-MAIN TOP (LH)
18	HINGE-MAIN TOP (RH)
36B	WCI 316023301
36C	WCI 316041001
36A	WCI 316033610
39	WCI 316026103
44	3131903 Frigidaire Door/Drawer Bumper
60	SCREW-DRAWER HANDLE, 8 TRUSS HEAD, 10-16 X 1/2
