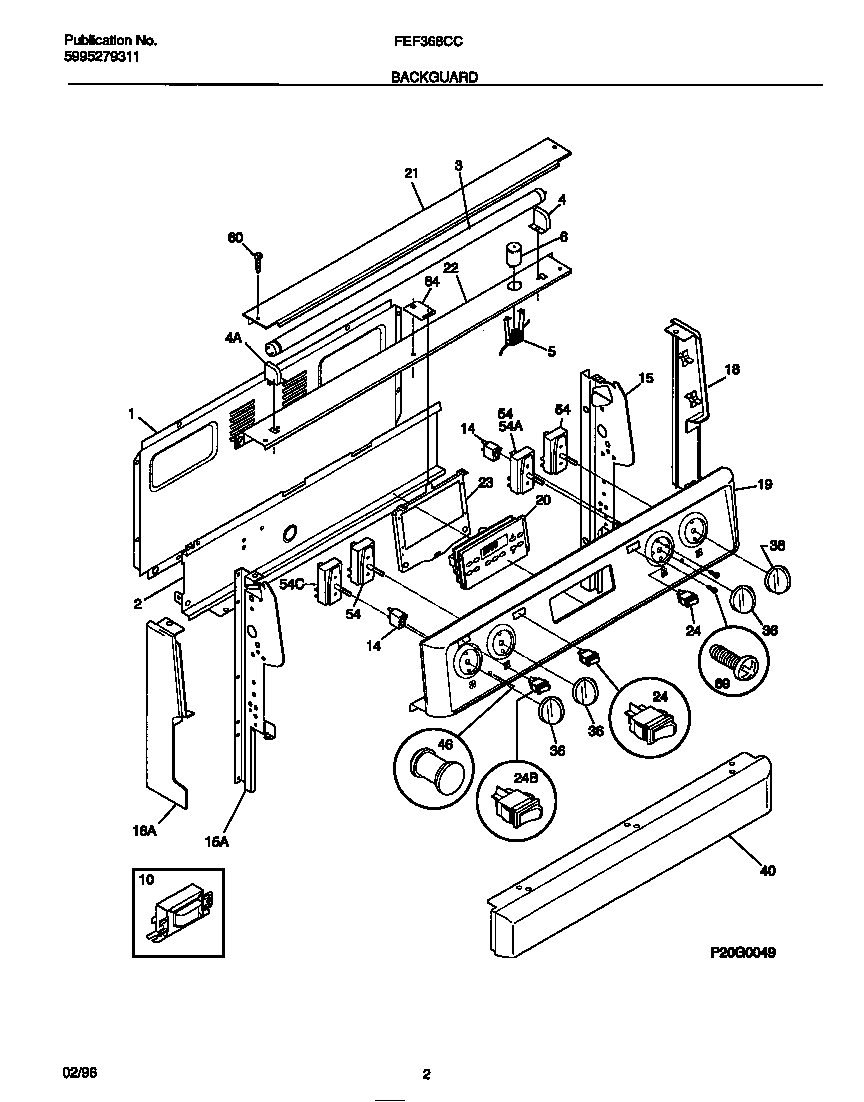

FEF368CCSD 02 – BACKGUARD

FEF368CCSD 02 – BACKGUARD

Written by

in

FEF368CCSD 02 – BACKGUARD

Products

PositionProduct
*80122WCI 5303290188
*80120Screw,cup pt ,8-18 x 0.375 ,chrome
*80121WCI 5303288574
1WCI 316081601
2WCI 316015905
3BULB-FLUOR
4RECEPTACLE-FLU LT RH
4RECEPTACLE-FLU LT LH
5WCI 316053200
6STARTER-LAMP
10WCI 5303051115
14BLIGHT/LAMP, IND, HOT SURFACE
14A316022503 Frigidaire Light Lamp P-1
15WCI 316049107
15WCI 316049106
18END CAP, WHITE, LH
18END CAP, WHITE, RH
19WCI 316024523
20WCI 316027421
20WCI 316076101
21WCI 316024902
22WCI 316059901
23WCI 316060003
24SWITCH-ROCKER,WHITE, DUAL ELEMENT
245304527842 Frigidaire Rocker Switch
36316025106 Frigidaire Control Knob
40WCI 316025808
46ALENS-LIGHT/LAMP, INDICATOR
46B318228310 Frigidaire Oven Lens
545303935086 Frigidaire Oven Top Burner Switch Kit
545304528972 Frigidaire Switch
54316436001 Frigidaire Oven Range Infinite Burner Switch
60316021105 Frigidaire Oven Screw
64WCI 316062400
69SCREW-SWITCH MTG, 8-32 X 3/16, SW TO CNTL PNL, (8)
