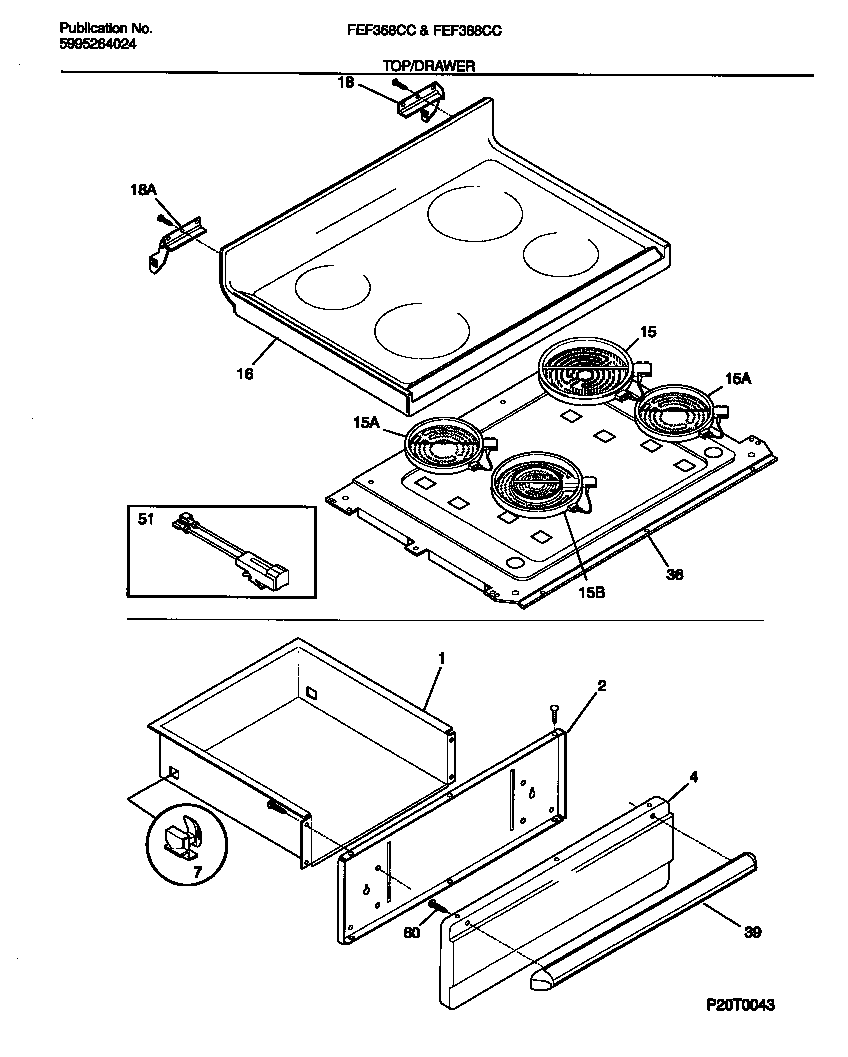

FEF368CCTA 04 – TOP/DRAWER

FEF368CCTA 04 – TOP/DRAWER

Written by

in

FEF368CCTA 04 – TOP/DRAWER

Products

PositionProduct
*38814WCI 5303305633
*38813WCI 5303305632
*38809LENS-LIGHT/LAMP, INDICATOR
*38819WCI 5303288574
*38818131243700 Frigidaire Screw
*38817WCI 5309951550
1DRAWER-UTILITY
2SHIELD-PNL
4WCI 316056206
4SCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT ILLUSTRATED)
4WCI 316056207
73051163 Frigidaire Oven Range Rear Broiler Drawer Glide
15WCI 5303305628
15BLIMITER SWITCH, LARGE/8 INCH (NOT ILLUSTRATED)
15BLIMITER SWITCH, LARGE/8“, DUAL COIL (NON-ILLUSTRATED)
15WCI 316027900
15A318198834 Frigidaire Oven Element
15WCI 316028000
15AWCI 316049700
16WCI 316035542
16WCI 316035545
18HINGE-MAIN TOP (LH)
18HINGE-MAIN TOP (RH)
36CWCI 316041001
36BWCI 316023301
36AWCI 316033609
39WCI 316026100
39WCI 316026104
51WCI 316078200
51318178110 Frigidaire Oven Range 6" Surface Element
51LIGHT/LAMP, IND, HOT SURFACE
53WCI 316082401
60WCI 5303281584
