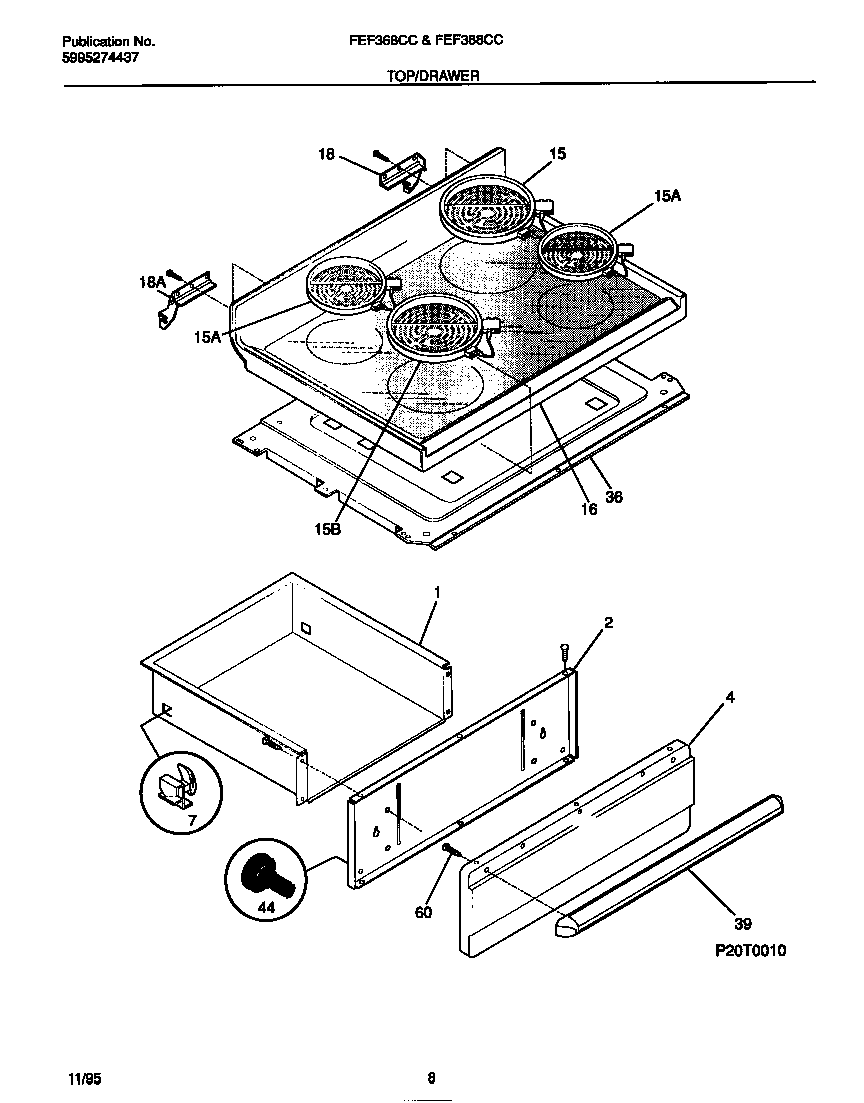

FEF368CCTC 05 – TOP/DRAWER

Products

Position	Product
*25449	RIVET-POP, WARING-PLATE
*25451	131243700 Frigidaire Screw
*25450	WCI 5303281584
*25452	WCI 5309951550
1	DRAWER-UTILITY
2	SHIELD-PNL
4	WCI 316056206
4	SCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT ILLUSTRATED)
7	3051163 Frigidaire Oven Range Rear Broiler Drawer Glide
15	WCI 316049700
15	318178110 Frigidaire Oven Range 6" Surface Element
15	LIMITER SWITCH, LARGE/8 INCH (NOT ILLUSTRATED)
15	WCI 5303305628
15	318198834 Frigidaire Oven Element
16	WCI 316035545
18	HINGE-MAIN TOP (LH)
18	HINGE-MAIN TOP (RH)
36C	WCI 316041001
36B	WCI 316023301
36A	WCI 316033610
39	WCI 316026104
44	3131903 Frigidaire Door/Drawer Bumper
60	SCREW-DRAWER HANDLE, 8 TRUSS HEAD, 10-16 X 1/2
