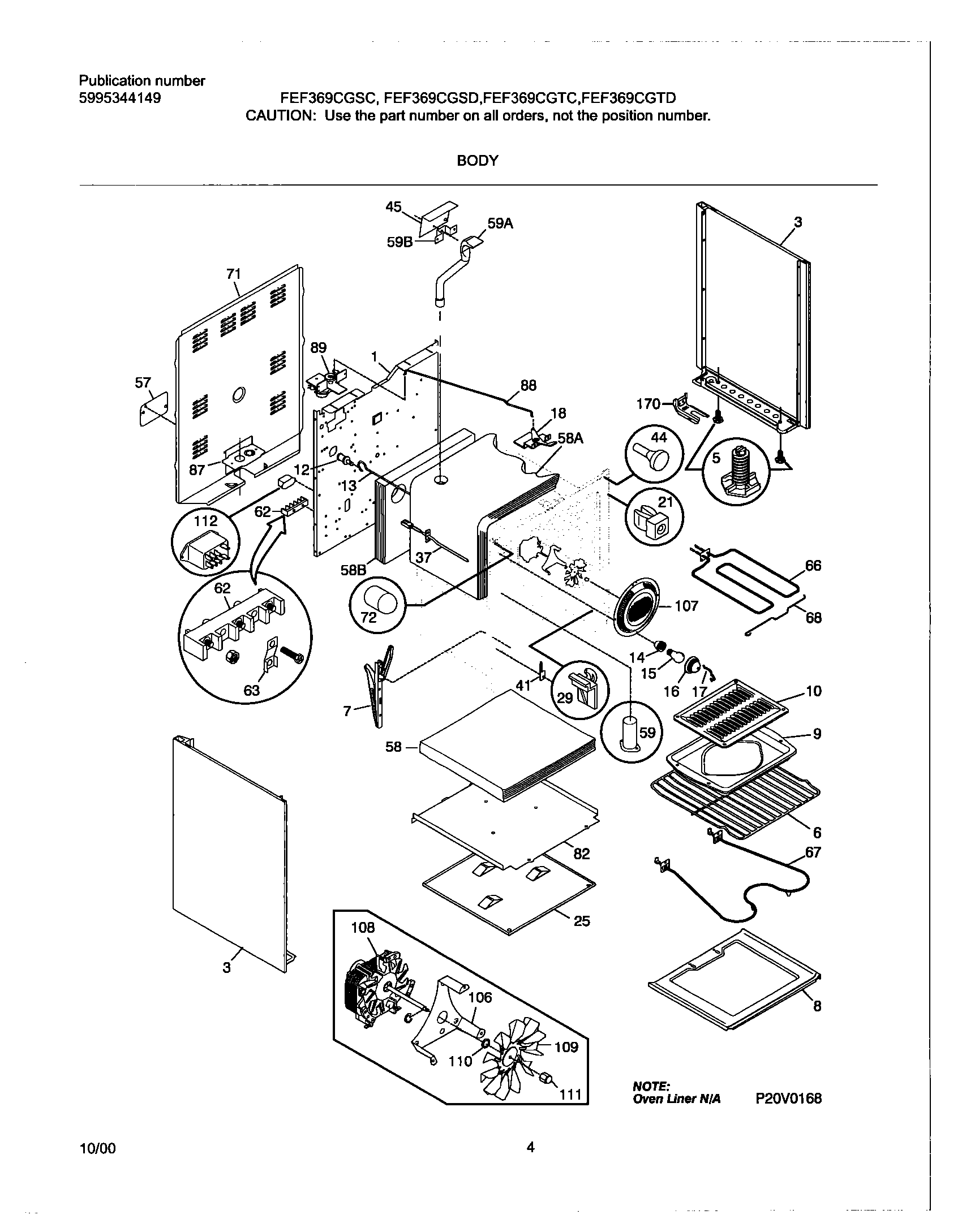

FEF369CGTC 05 – BODY

FEF369CGTC 05 – BODY

Written by

in

FEF369CGTC 05 – BODY

Products

PositionProduct
NI316021105 Frigidaire Oven Screw
NIWCI 316001571
NIScrew,cup pt ,8-18 x 0.375 ,chrome
NI316205500 Frigidaire Oven Nut
NI5308014215 Frigidaire Oven Screw
NI3203550 Frigidaire Oven Plug
NIClip,wiring harness ,green ,main top
1WCI 316080803
3WCI 316081036
3WCI 316081037
5WCI 316129200
6316067902 Frigidaire Oven Rack
7WCI 316007002
8PANEL-OVEN BOTTOM
9WCI 316081900
10Insert,broiler panOPTIONAL ACCESS0RY
12SWITCH-OVEN LIGHT, DOOR FRAME
13WCI 316026800
14316116400 Frigidaire Oven Light Socket
15316538904 Frigidaire Oven Lamp Light
165304524341 Frigidaire Lens
17316087500 Frigidaire Oven Retainer
18WCI 316036300
21SPACER-BODYSIDE, (8)
25WCI 3200848
293051162 Frigidaire Oven Range Front Broiler Drawer Glide
375304497424 Frigidaire Oven Temperature Sensor Probe Kit
41WCI 3131570
443131903 Frigidaire Door/Drawer Bumper
45WCI 316066100
57WCI 316081100
58AINSULATION, OVEN WRAPPER
58BWCI 316054201
58316403803 Frigidaire Insulation
59BBRACKET-MOUNTING,VENT TUBE
59WCI 316073602
59AWCI 316023600
62WCI 316085600
625304409888 Frigidaire Oven Terminal Block with Hardware
63PLATE=GROUND STRAP
665303051140 Frigidaire Broil Element
67316075103 Frigidaire Oven Bake Element
68316203400 Frigidaire Oven Support
71WCI 316015804
72COVER-LIGHT/SWITCH ROD
