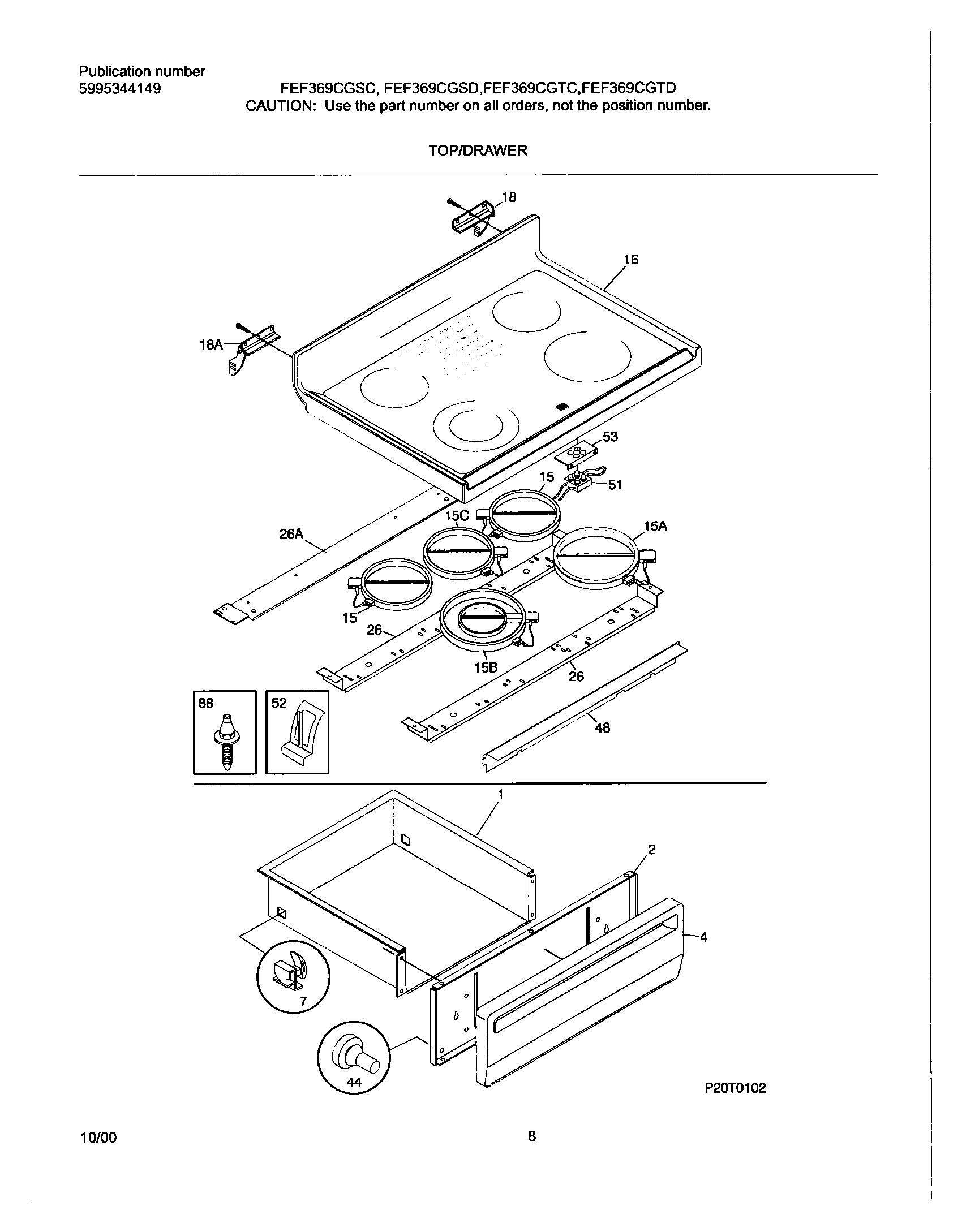

FEF369CGTD 09 – TOP/DRAWER

FEF369CGTD 09 – TOP/DRAWER

Written by

in

FEF369CGTD 09 – TOP/DRAWER

Products

PositionProduct
NI316021105 Frigidaire Oven Screw
NIWCI 316112101
NIWCI 316089600
NIWCI 5303280311
NIClip,wiring harness ,green ,main top
NI5308014215 Frigidaire Oven Screw
NIScrew,cup pt ,8-18 x 0.375 ,chrome
NI316021109 Frigidaire Oven Screw
1DRAWER-UTILITY
2WCI 5303288582
4WCI 316084406
73051163 Frigidaire Oven Range Rear Broiler Drawer Glide
15B389082702 Frigidaire Element
15A318178110 Frigidaire Oven Range 6" Surface Element
15CWCI 316098201
15318198834 Frigidaire Oven Element
16WCI 316098140
18AHINGE-MAIN TOP (LH)
18HINGE-MAIN TOP (RH)
26Channel-support,element ,galv steel ,(2)
26AWCI 316099200
443131903 Frigidaire Door/Drawer Bumper
48WCI 316100200
51WCI 316001759
52Clip,element mtg
53WCI 316099300
88316099500 Frigidaire Oven Pin
