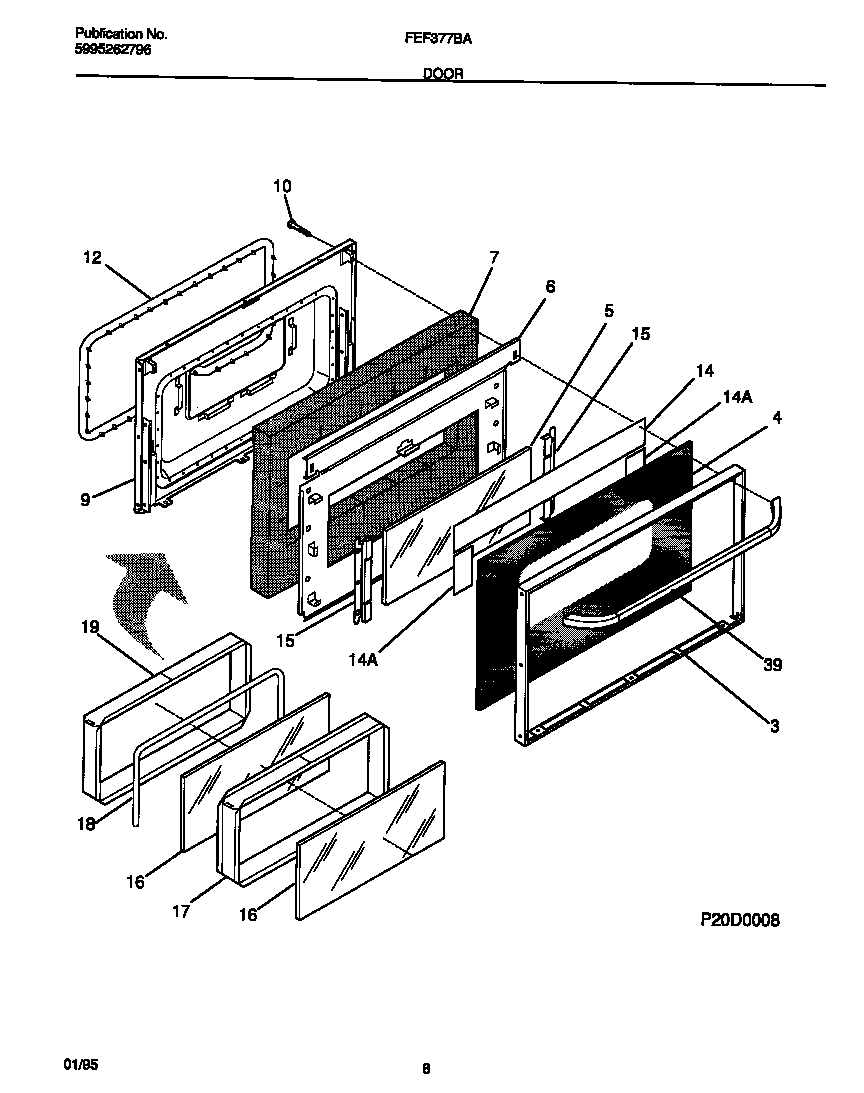

FEF377BADB 05 – DOOR

FEF377BADB 05 – DOOR

Written by

in

FEF377BADB 05 – DOOR

Products

PositionProduct
*37655RIVET-POP, WARING-PLATE
*37654WCI 316065300
*37656SCREW, CR PAN HD SEMS, 8-32BP X 1.00
*37657WCI 5303269859
3WCI 5303209518
4WCI 316019706
5GLASS-OVEN DOOR, INNER
6SHIELD-INSULATION
7INSULATION-OVEN DOOR
9WCI 5303209515
10SCREW-OVEN DOOR, WASHER HEAD, 10-24 X 1.81
125303131601 Frigidaire Oven Seal
145303208655 Frigidaire Reflector Assembly
14REFLECTOR, ALUMINUM FOIL
15BRACKET-GLASS MTG
16GLASS-OVEN DOOR, HEAT BARRIER, (2)
17WCI 5303209517
18ASEAL-ROPE, 0.25 DIA
18B131243700 Frigidaire Screw
19WCI 316067600
395304529996 Frigidaire Handle Kit
