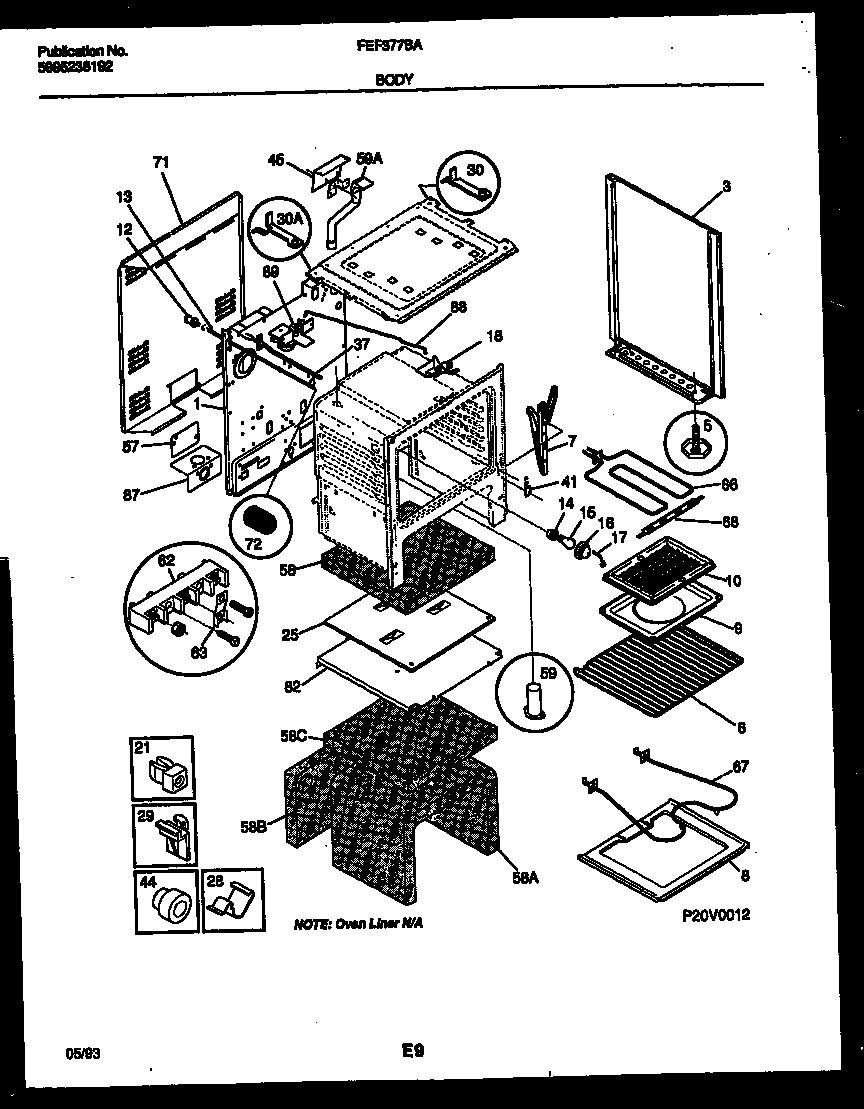

FEF377BAWA 03 – BODY PARTS

FEF377BAWA 03 – BODY PARTS

Written by

in

FEF377BAWA 03 – BODY PARTS

Products

PositionProduct
*765763203550 Frigidaire Oven Plug
1BACK-MAIN, AUTOLATCH
3PNL-B/S-RH-WHITE
3APNL-B/S-LH-WHITE
3BSHIELD, HEAT, BODY SIDE (NOT ILLUSTRATED)
3CFASTENER-EDGE MTG (NOT ILLUSTRATED)
5AANTI-TIP KIT (NOT ILLUSTRATED)
5BNUT, T,TYPE, LEVELING SCREW (NOT ILLUSTRATED)
5SCREW-LEVELING
6316067902 Frigidaire Oven Rack
7WCI 316007002
8PANEL-OVEN BOTTOM
9PAN-BROILER
10WCI 5303131356
12SWITCH-OVEN LIGHT, DOOR FRAME
13WCI 316026800
14316116400 Frigidaire Oven Light Socket
15316538904 Frigidaire Oven Lamp Light
165304524341 Frigidaire Lens
17RETAINER-GLASS
18WCI 316036300
21SPACER-BODYSIDE, (8)
25WCI 3200848
28Clip,wiring harness ,green ,main top
293051162 Frigidaire Oven Range Front Broiler Drawer Glide
30ABRACKET-HINGE, MAIN TOP, LH
30BRACKET-HINGE, MAIN TOP RH
375304497424 Frigidaire Oven Temperature Sensor Probe Kit
41WCI 3131570
443131903 Frigidaire Door/Drawer Bumper
45WCI 316048001
57COVER-ACCESS
58316403803 Frigidaire Insulation
58BINSULATION OVEN BACK (NON-ILLUSTRATED)
58AWCI 316047700
58CINSULATION, OVEN TOP
59BBRACKET-MOUNTING,VENT TUBE
59AWCI 316023601
59WCI 5303271905
62A316205500 Frigidaire Oven Nut
625304409888 Frigidaire Oven Terminal Block with Hardware
63PLATE-GROUND STRAP
665303051140 Frigidaire Broil Element
67316075103 Frigidaire Oven Bake Element
68316203400 Frigidaire Oven Support
71SHIELD-REAR WALL, LOWER
72COVER-LIGHT/SWITCH ROD
82SHIELD, OVEN BOTTOM
87WCI 5303206618
88WCI 316026400
89WCI 316028101
