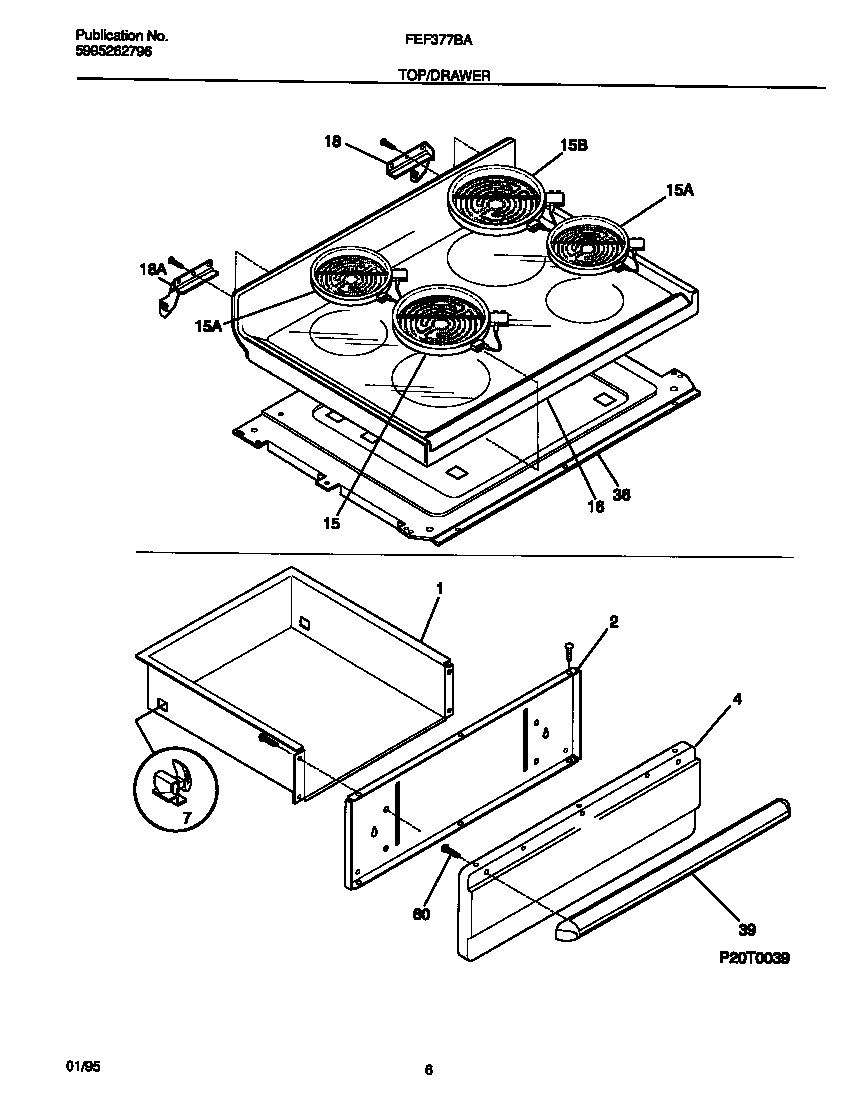

FEF377BAWB 04 – TOP/DRAWERadmin2025-04-26T10:54:45+00:00FEF377BAWB 04 – TOP/DRAWER
Products
| Position | Product |
|---|
| *37650 | LIGHT/LAMP, IND, HOT SURFACE |
| *37652 | WCI 5303281584 |
| *37653 | WCI 5309951550 |
| *37651 | LENS-LIGHT/LAMP, INDICATOR |
| 1 | DRAWER-UTILITY |
| 2 | SHIELD-PNL |
| 4 | PANEL-BROILER, WHITE |
| 4 | SCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT ILLUSTRATED) |
| 7 | 3051163 Frigidaire Oven Range Rear Broiler Drawer Glide |
| 15 | WCI 5303305628 |
| 15 | WCI 316028000 |
| 15A | WCI 316027900 |
| 15 | WCI 5303305633 |
| 15B | WCI 5303305632 |
| 15 | LIMITER SWITCH, LARGE/8``, DUAL COIL (NON-ILLUSTRATED) |
| 15 | WCI 316049700 |
| 15 | 318178110 Frigidaire Oven Range 6" Surface Element |
| 16 | WCI 316035514 |
| 18 | 131243700 Frigidaire Screw |
| 18 | HINGE-MAIN TOP (LH) |
| 18 | HINGE-MAIN TOP (RH) |
| 36A | PANEL, ELEMENT MOUNTING, GLASS TOP |
| 36C | WCI 316041001 |
| 36B | WCI 316023301 |
| 39 | WCI 316026100 |
| 60 | WCI 5303288574 |
