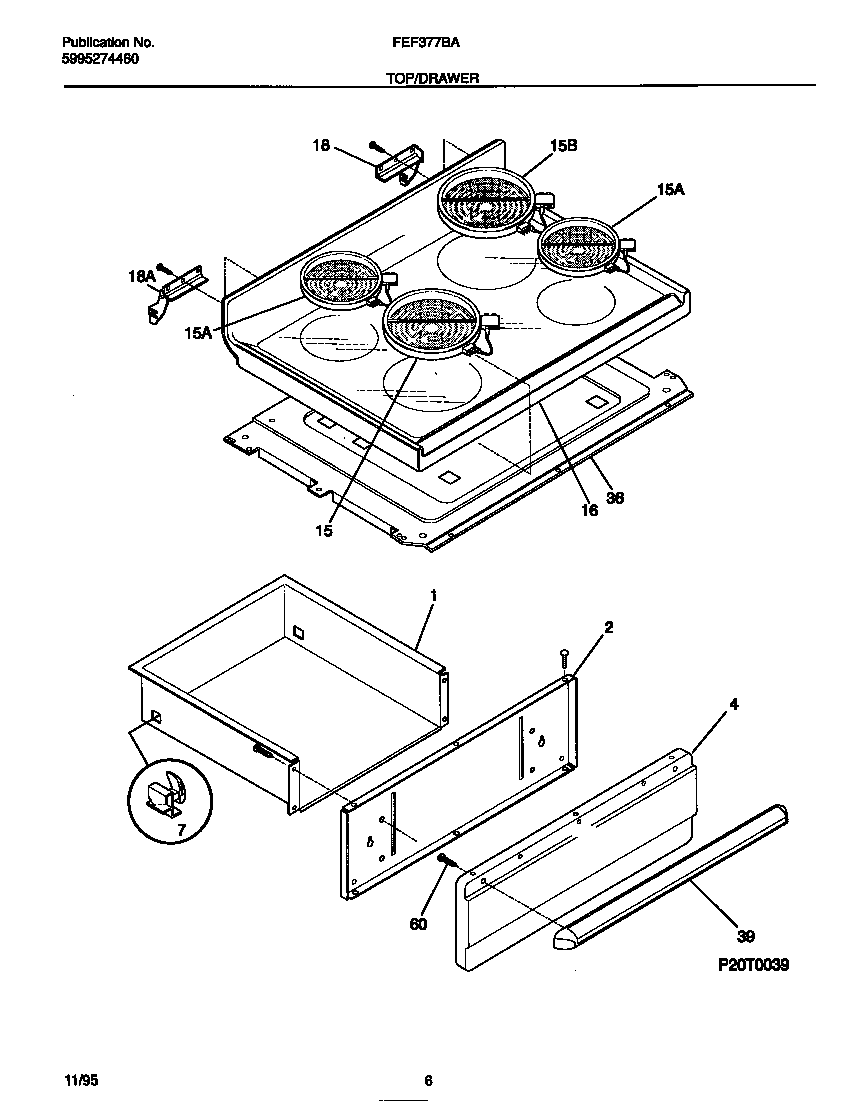

FEF377BAWD 04 – TOP/DRAWER

FEF377BAWD 04 – TOP/DRAWER

Written by

in

FEF377BAWD 04 – TOP/DRAWER

Products

PositionProduct
*87727RIVET-POP, WARING-PLATE
*87729131243700 Frigidaire Screw
*877263131903 Frigidaire Door/Drawer Bumper
*87728WCI 5303281584
*87730WCI 5309951550
1DRAWER-UTILITY
2SHIELD-PNL
4PANEL-BROILER, WHITE
4SCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT ILLUSTRATED)
73051163 Frigidaire Oven Range Rear Broiler Drawer Glide
15BWCI 316028000
15A318178110 Frigidaire Oven Range 6" Surface Element
15WCI 316027900
15WCI 316049700
15CWCI 5303305628
16WCI 316035514
18HINGE-MAIN TOP (LH)
18HINGE-MAIN TOP (RH)
36CWCI 316041001
36BWCI 316023301
36AWCI 316033610
39WCI 316026100
60SCREW-DRAWER HANDLE, 8 TRUSS HEAD, 10-16 X 1/2
