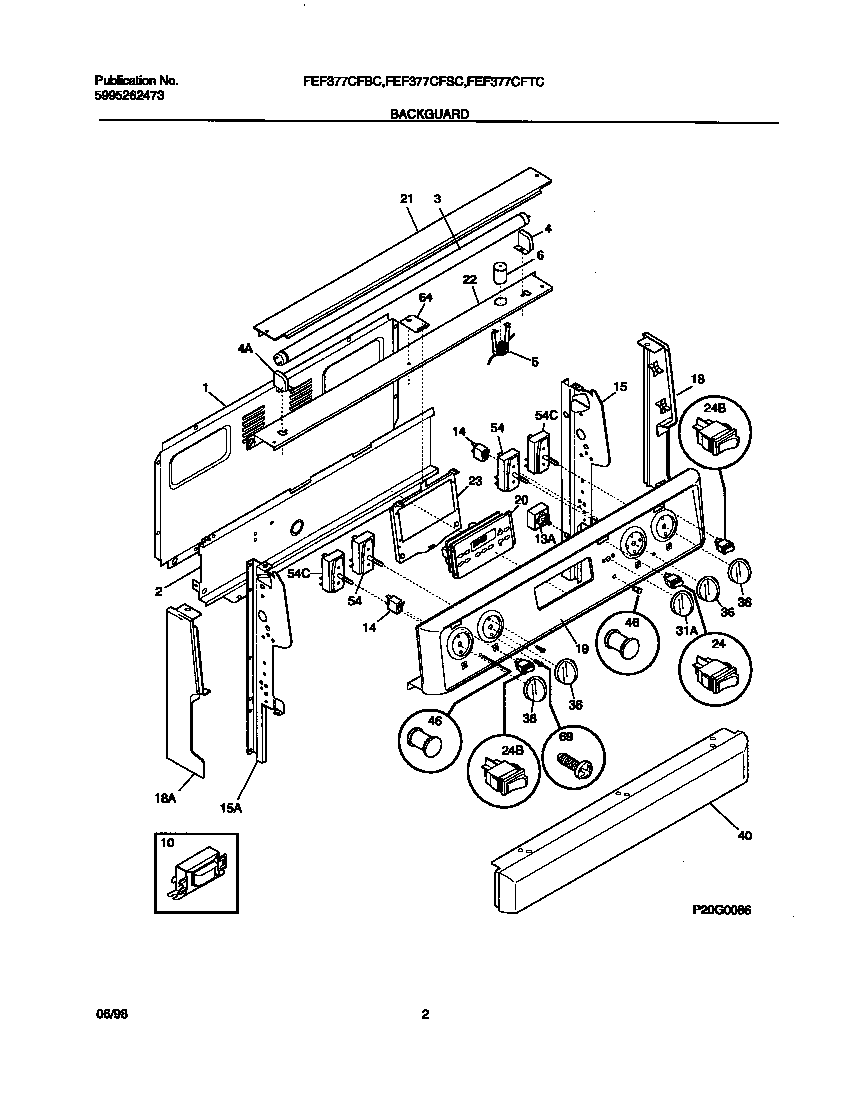

FEF377CFBC 02 – BACKGUARD

FEF377CFBC 02 – BACKGUARD

Written by

in

FEF377CFBC 02 – BACKGUARD

Products

PositionProduct
*39120WCI 316003018
*39121316021105 Frigidaire Oven Screw
*39125WCI 316089307
*39123316021109 Frigidaire Oven Screw
*39122Screw,cup pt ,8-18 x 0.375 ,chrome
1WCI 316081601
2WCI 316015905
3BULB-FLUOR
4RECEPTACLE-FLU LT RH
4RECEPTACLE-FLU LT LH
5WCI 316053200
6STARTER-LAMP
10WCI 316099800
135304508926 Frigidaire Oven Temperature Control Switch
14A316022500 Frigidaire Oven Warmer Drawer Zone Indicator Light Lamp
14B316022503 Frigidaire Light Lamp P-1
15WCI 316049104
15WCI 316049105
18WCI 316026900
18WCI 316026901
19WCI 316024543
21WCI 316024900
22WCI 316059901
23WCI 316060002
245304527841 Frigidaire Oven Rocker Switch (Black)
24316083100 Frigidaire Oven Range Rocker Switch
31WCI 316095600
36WCI 316025105
40WCI 316025800
46318228310 Frigidaire Oven Lens
545304528972 Frigidaire Switch
545303935086 Frigidaire Oven Top Burner Switch Kit
60WCI 5303288574
64WCI 316062400
69SCREW-SWITCH MTG, 8-32 X 3/16, SW TO CNTL PNL, (8)
