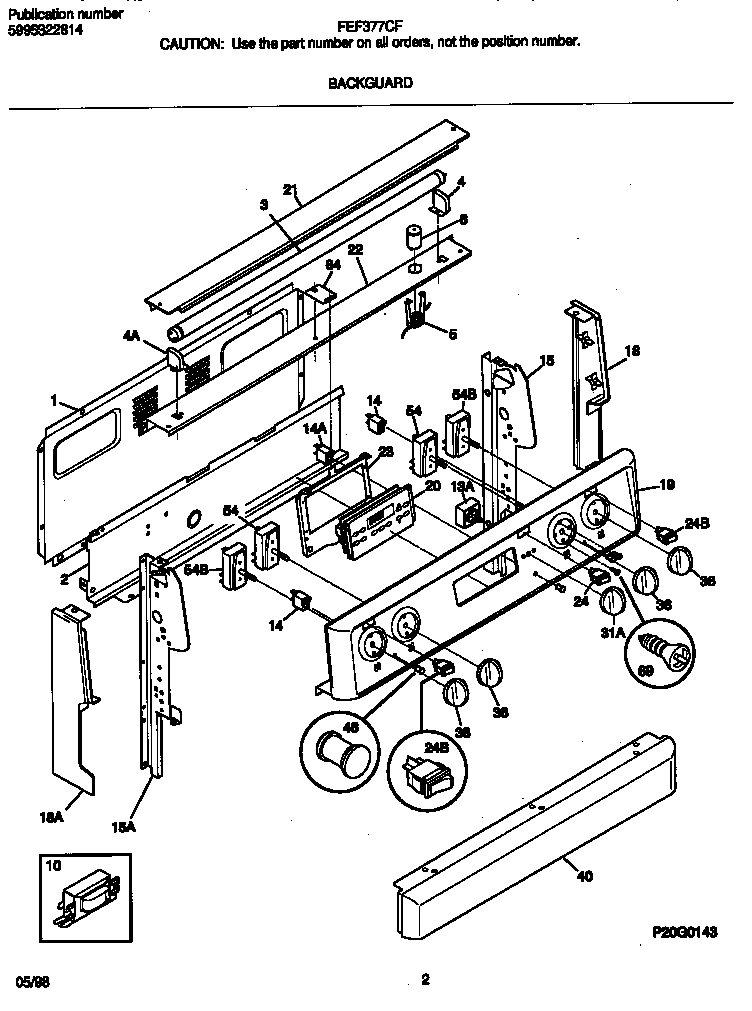

FEF377CFBD 02 – BACKGUARD

Products

Position	Product
*11244	WCI 316085600
*11246	SCREW-SWITCH MTG, 8-32 X 3/16, SW TO CNTL PNL, (8)
*11248	WCI 316089307
*11242	316021109 Frigidaire Oven Screw
*11240	WCI 316081302
*11241	Screw,cup pt ,8-18 x 0.375 ,chrome
*11245	316112500 Frigidaire Oven Template
1	WCI 316081601
2	WCI 316015905
3	BULB-FLUOR
4	RECEPTACLE-FLU LT RH
4	RECEPTACLE-FLU LT LH
5	WCI 316053200
6	STARTER-LAMP
10	WCI 316099800
13	5304508926 Frigidaire Oven Temperature Control Switch
14	316022500 Frigidaire Oven Warmer Drawer Zone Indicator Light Lamp
14	316022503 Frigidaire Light Lamp P-1
15	WCI 316049104
15	WCI 316049105
18	WCI 316026901
18	WCI 316026900
19	WCI 316024543
20	WCI 5303935120
21	WCI 316024900
22	WCI 316059901
23	WCI 316060002
24	316083100 Frigidaire Oven Range Rocker Switch
24	5304527841 Frigidaire Oven Rocker Switch (Black)
31	WCI 316095600
36	WCI 316025105
40	WCI 316025800
46	318228310 Frigidaire Oven Lens
54	5304528972 Frigidaire Switch
54	5303935086 Frigidaire Oven Top Burner Switch Kit
64	WCI 316062400
