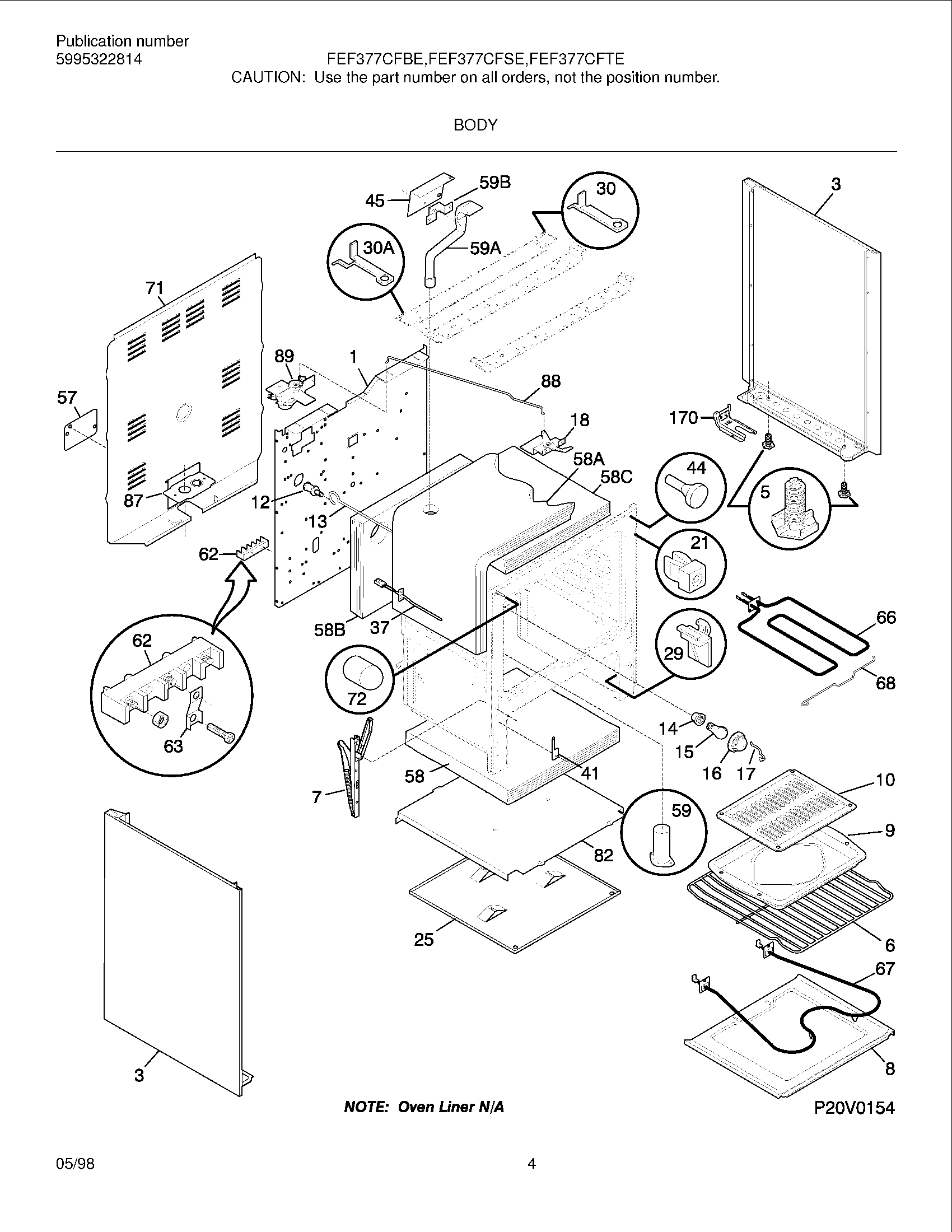

FEF377CFBE 05 – BODY

FEF377CFBE 05 – BODY

Written by

in

FEF377CFBE 05 – BODY

Products

PositionProduct
NI316116000 Frigidaire Screw
NIINSULATION, OVEN WRAPPER
NIWCI 316001353
NI316054202 Frigidaire Insulation
NIWCI 316081039
NI316205500 Frigidaire Oven Nut
NI3203550 Frigidaire Oven Plug
NIClip,wiring harness ,green ,main top
NIScrew,cup pt ,8-18 x 0.375 ,chrome
1WCI 316080804
3WCI 316081038
5WCI 316107300
6316067902 Frigidaire Oven Rack
7WCI 316007002
8PANEL-OVEN BOTTOM
9WCI 316073800
10WCI 3205234
12SWITCH-OVEN LIGHT, DOOR FRAME
13WCI 316026800
14316116400 Frigidaire Oven Light Socket
15316538904 Frigidaire Oven Lamp Light
165304524341 Frigidaire Lens
17316087500 Frigidaire Oven Retainer
18WCI 316036300
21SPACER-BODYSIDE, (8)
25WCI 3200848
293051162 Frigidaire Oven Range Front Broiler Drawer Glide
30BRACKET-HINGE, MAIN TOP RH
30ABRACKET-HINGE, MAIN TOP, LH
375304497424 Frigidaire Oven Temperature Sensor Probe Kit
41WCI 3131570
443131903 Frigidaire Door/Drawer Bumper
45WCI 316066100
57WCI 316081101
58A316047707 Frigidaire Insulation
58BWCI 316054200
58316403803 Frigidaire Insulation
59WCI 316073602
59BBRACKET-MOUNTING,VENT TUBE
59AWCI 316023601
625304409888 Frigidaire Oven Terminal Block with Hardware
63PLATE=GROUND STRAP
665303051140 Frigidaire Broil Element
67316075103 Frigidaire Oven Bake Element
68316203400 Frigidaire Oven Support
71WCI 316015805
72COVER-LIGHT/SWITCH ROD
82WCI 5303289913
87316081200 Frigidaire Oven Bracket
88WCI 316026400
89WCI 316028101
170316112005 Frigidaire Oven Anti-Tip Range Bracket Kit
