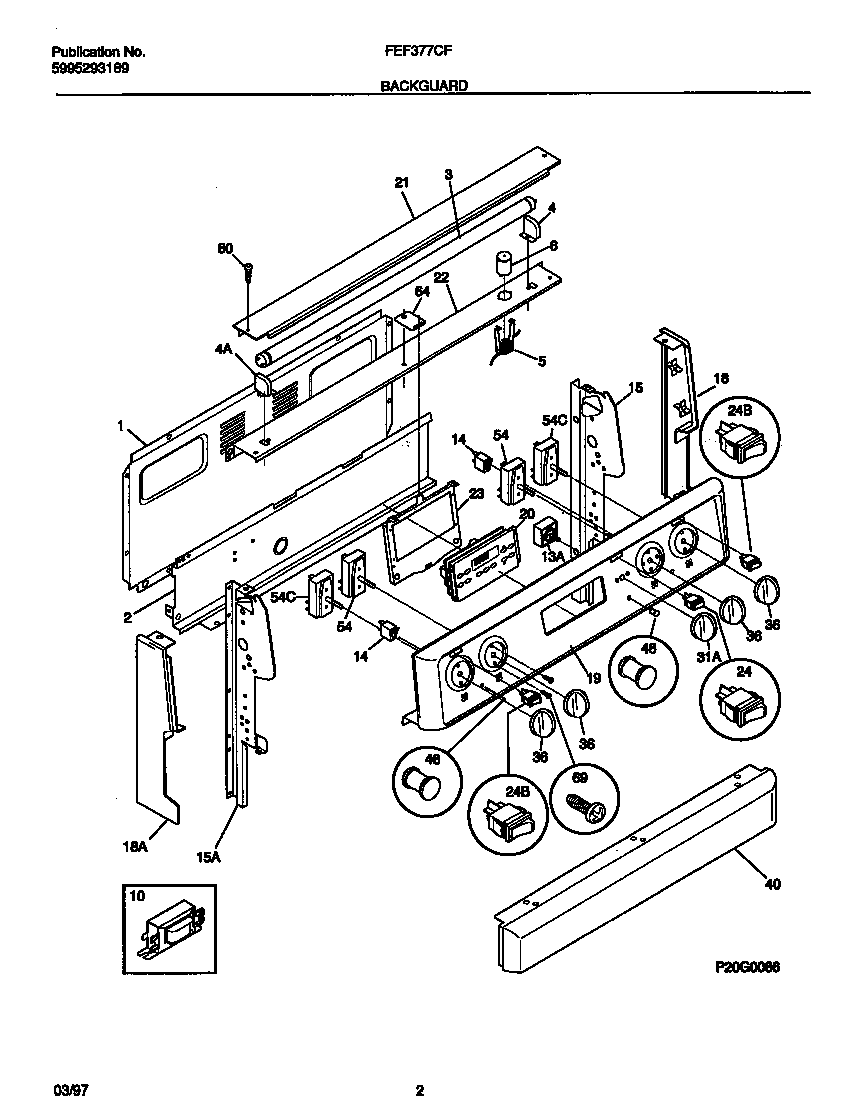

FEF377CFSA 02 – BACKGUARD

FEF377CFSA 02 – BACKGUARD

Written by

in

FEF377CFSA 02 – BACKGUARD

Products

PositionProduct
*26520Screw,cup pt ,8-18 x 0.375 ,chrome
*26521WCI 5303288574
1WCI 316081601
2WCI 316015905
3BULB-FLUOR
4RECEPTACLE-FLU LT RH
4RECEPTACLE-FLU LT LH
5WCI 316053200
6STARTER-LAMP
10WCI 316099800
135304508926 Frigidaire Oven Temperature Control Switch
14B316022500 Frigidaire Oven Warmer Drawer Zone Indicator Light Lamp
14A316022503 Frigidaire Light Lamp P-1
15WCI 316049107
15WCI 316049106
18END CAP, WHITE, RH
18END CAP, WHITE, LH
19WCI 316024541
20WCI 5303935107
20WCI 316089306
21WCI 316024902
22WCI 316059901
23WCI 316060003
245304527842 Frigidaire Rocker Switch
24WCI 316086901
31KNOB-WARMER, WHITE, (2)
36316025106 Frigidaire Control Knob
40WCI 316025808
46318228310 Frigidaire Oven Lens
545304528972 Frigidaire Switch
545303935086 Frigidaire Oven Top Burner Switch Kit
60316021105 Frigidaire Oven Screw
64WCI 316062400
69SCREW-SWITCH MTG, 8-32 X 3/16, SW TO CNTL PNL, (8)
