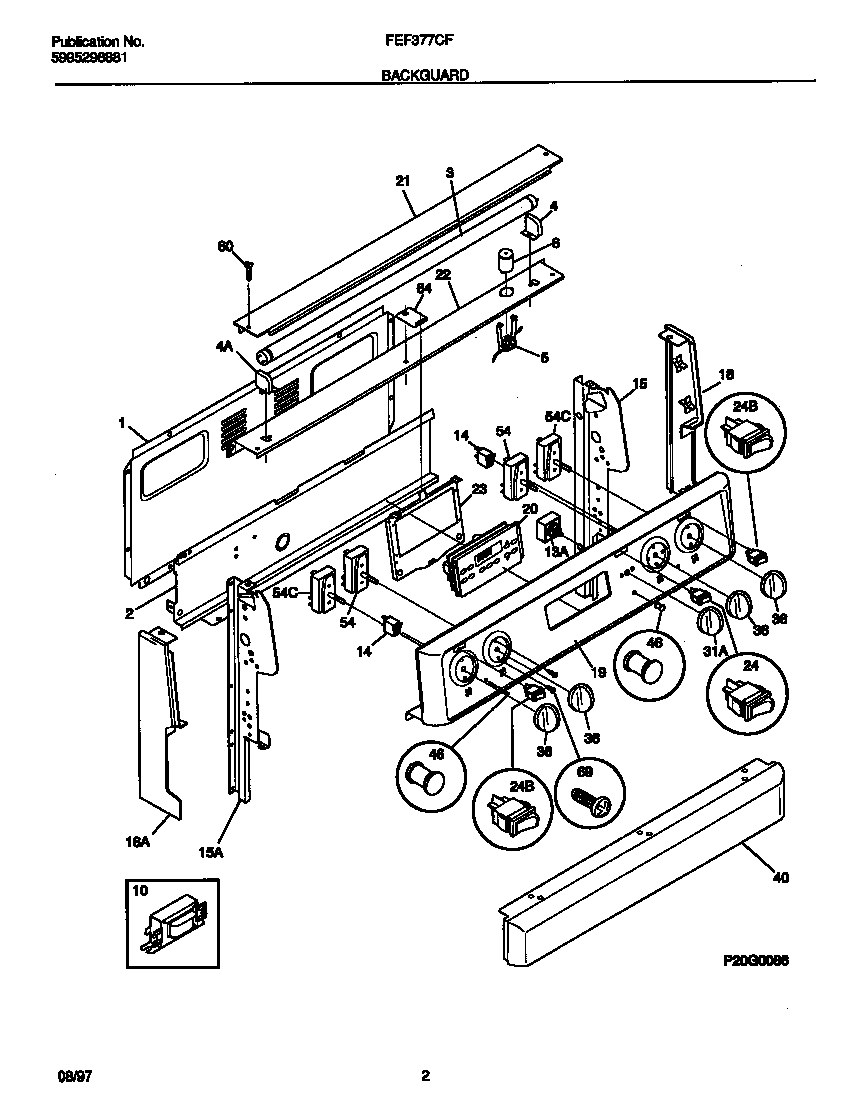

FEF377CFSB 02 – BACKGUARD

FEF377CFSB 02 – BACKGUARD

Written by

in

FEF377CFSB 02 – BACKGUARD

Products

PositionProduct
*76601WCI 5303288574
*76602WCI 5303290188
*76600Screw,cup pt ,8-18 x 0.375 ,chrome
1WCI 316081601
2WCI 316015905
3BULB-FLUOR
4RECEPTACLE-FLU LT LH
4RECEPTACLE-FLU LT RH
5WCI 316053200
6STARTER-LAMP
10WCI 316099800
135304508926 Frigidaire Oven Temperature Control Switch
14A316022503 Frigidaire Light Lamp P-1
14B316022500 Frigidaire Oven Warmer Drawer Zone Indicator Light Lamp
15WCI 316049104
15WCI 316049105
18END CAP, WHITE, RH
18END CAP, WHITE, LH
19WCI 316024541
20WCI 5303935107
20WCI 316089306
21WCI 316024902
22WCI 316059901
23WCI 316060002
24WCI 316086901
245304527842 Frigidaire Rocker Switch
31KNOB-WARMER, WHITE, (2)
36316025106 Frigidaire Control Knob
40WCI 316025808
46318228310 Frigidaire Oven Lens
545303935086 Frigidaire Oven Top Burner Switch Kit
545304528972 Frigidaire Switch
60316021105 Frigidaire Oven Screw
64WCI 316062400
69SCREW-SWITCH MTG, 8-32 X 3/16, SW TO CNTL PNL, (8)
