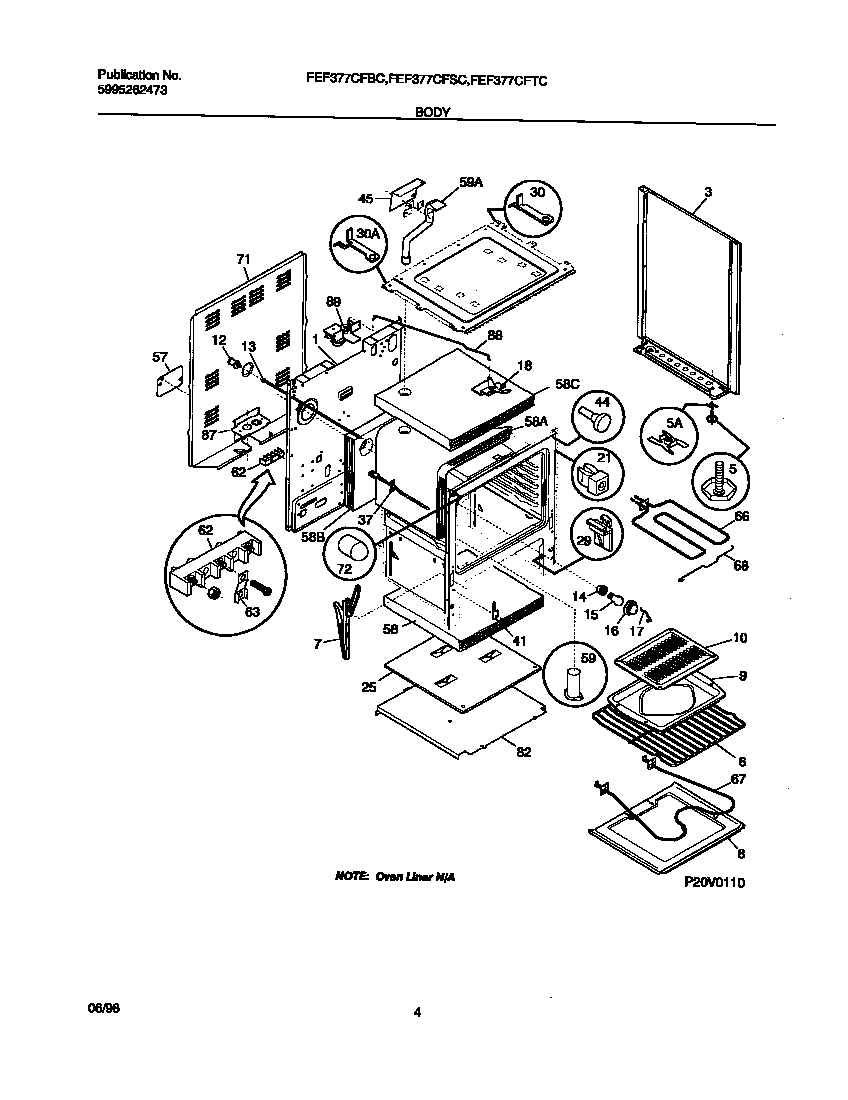

FEF377CFSC 03 – BODY

FEF377CFSC 03 – BODY

Written by

in

FEF377CFSC 03 – BODY

Products

PositionProduct
*39128316021105 Frigidaire Oven Screw
*39132WCI 316001353
*39137316116000 Frigidaire Screw
*39136WCI 3934058
*391383203010 Frigidaire Clip
*39131316205500 Frigidaire Oven Nut
*39130Clip,wiring harness ,green ,main top
*39134WCI 316081029
*391273203550 Frigidaire Oven Plug
*39129Screw,cup pt ,8-18 x 0.375 ,chrome
*39139BRACKET-MOUNTING,VENT TUBE
1WCI 316080804
3WCI 316081028
5NUT, T,TYPE, LEVELING SCREW (NOT ILLUSTRATED)
5SCREW-LEVELING
6316067902 Frigidaire Oven Rack
7WCI 316007002
8PANEL-OVEN BOTTOM
9WCI 316073800
10WCI 3205234
12SWITCH-OVEN LIGHT, DOOR FRAME
13WCI 316026800
14316116400 Frigidaire Oven Light Socket
15316538904 Frigidaire Oven Lamp Light
165304524341 Frigidaire Lens
17316087500 Frigidaire Oven Retainer
18WCI 316036300
21SPACER-BODYSIDE, (8)
25WCI 3200848
293051162 Frigidaire Oven Range Front Broiler Drawer Glide
30BRACKET-HINGE, MAIN TOP RH
30BRACKET-HINGE, MAIN TOP, LH
375304497424 Frigidaire Oven Temperature Sensor Probe Kit
41WCI 3131570
443131903 Frigidaire Door/Drawer Bumper
45WCI 316066100
57WCI 316081101
58INSULATION, OVEN TOP
58INSULATION, OVEN WRAPPER
58B316054202 Frigidaire Insulation
58316403803 Frigidaire Insulation
58AWCI 316054200
59WCI 316023601
59WCI 316073602
625304409888 Frigidaire Oven Terminal Block with Hardware
63PLATE=GROUND STRAP
665303051140 Frigidaire Broil Element
67316075103 Frigidaire Oven Bake Element
68316203400 Frigidaire Oven Support
71WCI 316015805
72COVER-LIGHT/SWITCH ROD
82WCI 5303289913
87316081200 Frigidaire Oven Bracket
88WCI 316026400
89WCI 316028101
