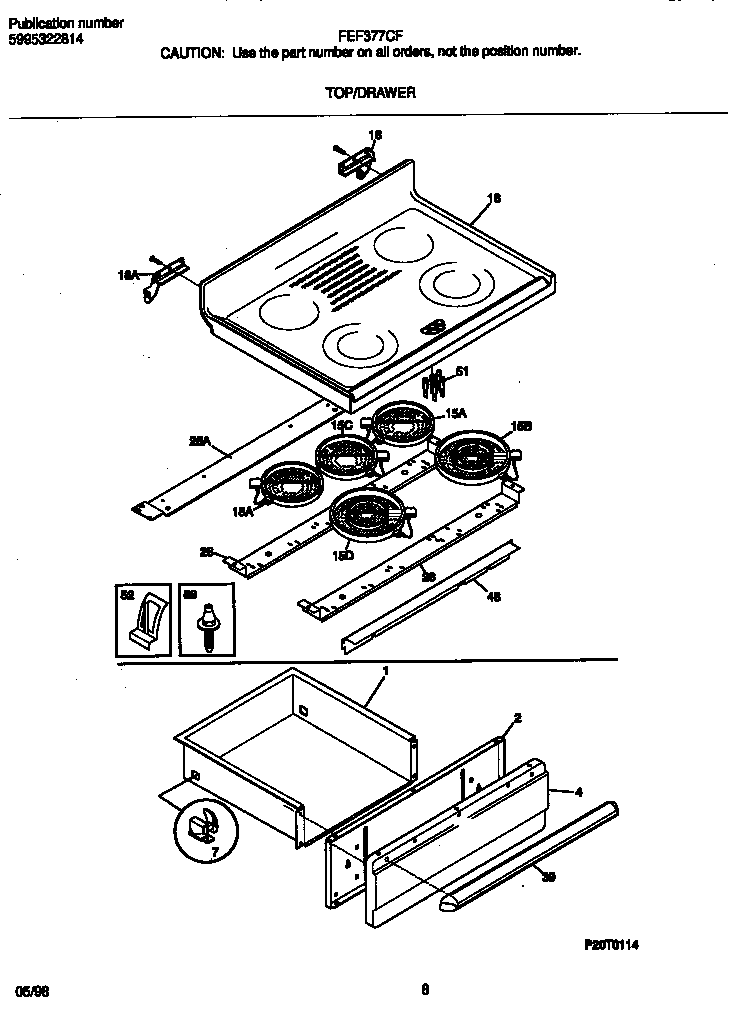

FEF377CFSD 04 – TOP/DRAWER

Products

Position	Product
*11260	WCI 316112101
*11261	WCI 5303280311
*11262	WCI 316001745
*11259	Clip,wiring harness ,green ,main top
*11255	Screw,cup pt ,8-18 x 0.375 ,chrome
*11256	316021109 Frigidaire Oven Screw
1	DRAWER-UTILITY
2	SHIELD-PNL
4	WCI 316056201
7	3051163 Frigidaire Oven Range Rear Broiler Drawer Glide
15	WCI 316098200
15	WCI 316049702
15	389082702 Frigidaire Element
15	318198817 Frigidaire Oven Element
16	WCI 316098120
18	HINGE-MAIN TOP (RH)
18	HINGE-MAIN TOP (LH)
26	WCI 316099201
26	WCI 316099101
39	WCI 316026106
48	WCI 316100200
51	WCI 316105200
52	Clip,element mtg
88	316099500 Frigidaire Oven Pin
