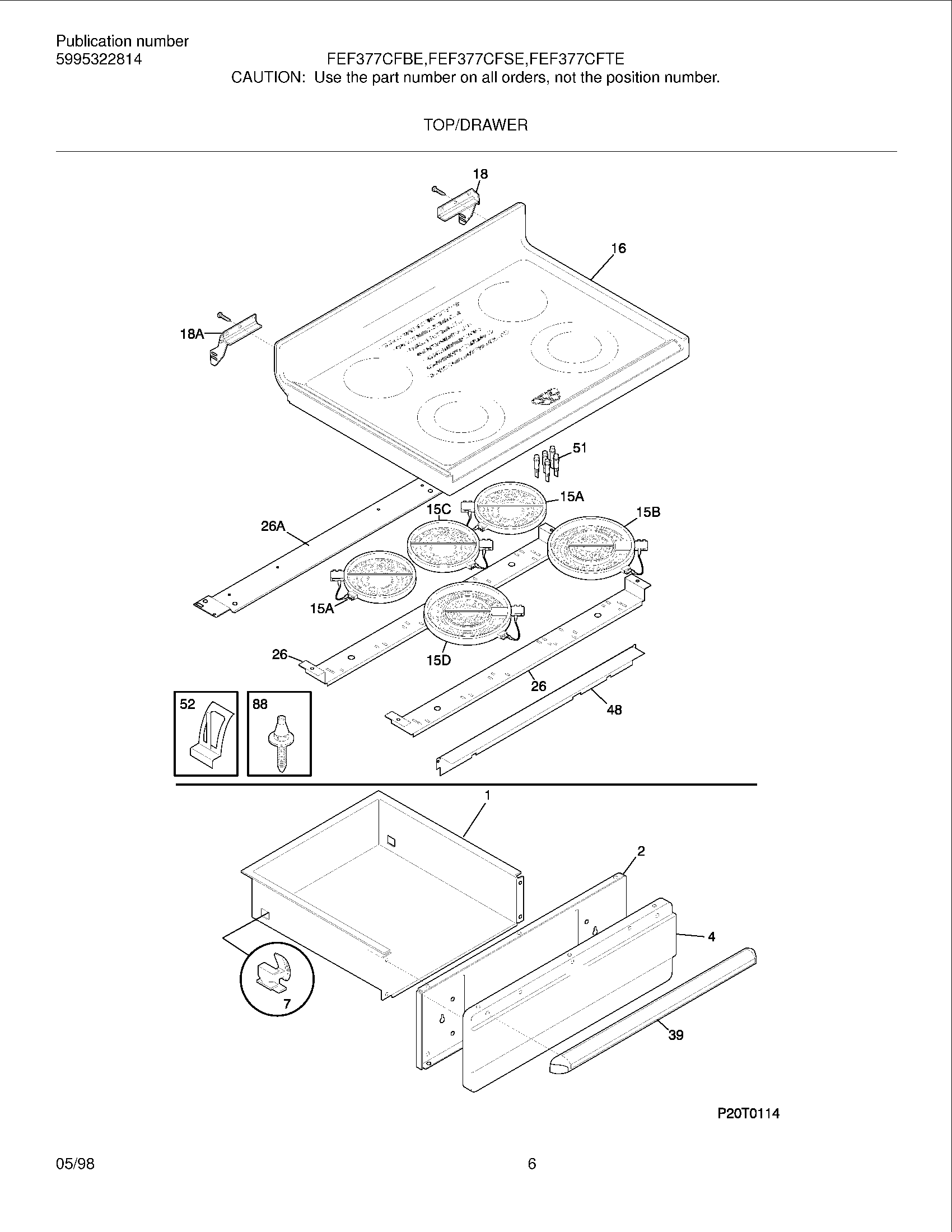

FEF377CFSE 07 – TOP/DRAWER

FEF377CFSE 07 – TOP/DRAWER

Written by

in

FEF377CFSE 07 – TOP/DRAWER

Products

PositionProduct
NIWCI 316001760
NI3131903 Frigidaire Door/Drawer Bumper
NIWCI 5303280311
NIWCI 316112101
NIClip,wiring harness ,green ,main top
NIScrew,cup pt ,8-18 x 0.375 ,chrome
NI316021109 Frigidaire Oven Screw
1DRAWER-UTILITY
2SHIELD-PNL
4WCI 316056201
73051163 Frigidaire Oven Range Rear Broiler Drawer Glide
15CWCI 316098201
15DWCI 316049702
15B389082702 Frigidaire Element
15A318198817 Frigidaire Oven Element
16WCI 316098120
18AHINGE-MAIN TOP (LH)
18HINGE-MAIN TOP (RH)
26WCI 316099101
26AWCI 316099201
39WCI 316026106
48WCI 316100200
51WCI 316105200
52Clip,element mtg
88316099500 Frigidaire Oven Pin
