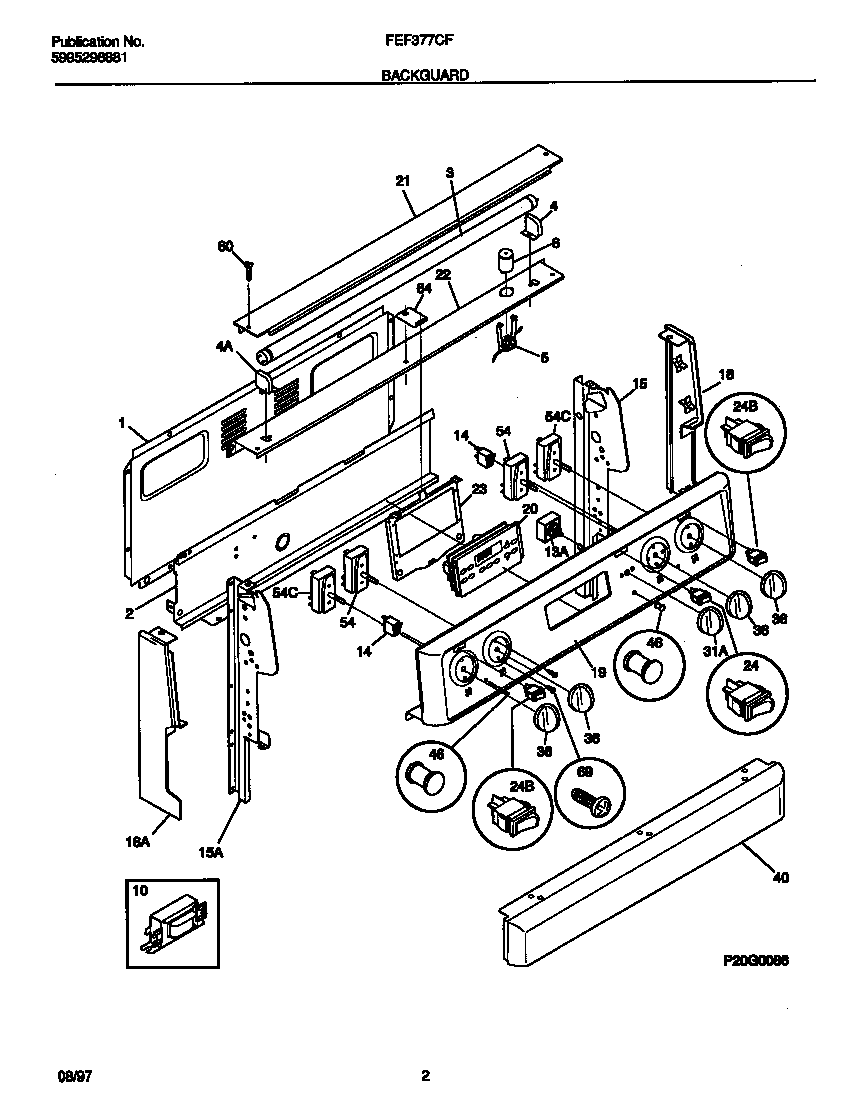

FEF377CFTB 02 – BACKGUARD

FEF377CFTB 02 – BACKGUARD

Written by

in

FEF377CFTB 02 – BACKGUARD

Products

PositionProduct
*76601WCI 5303288574
*76602WCI 5303290188
*76600Screw,cup pt ,8-18 x 0.375 ,chrome
1WCI 316081601
2WCI 316015905
3BULB-FLUOR
4RECEPTACLE-FLU LT RH
4RECEPTACLE-FLU LT LH
5WCI 316053200
6STARTER-LAMP
10WCI 316099800
135304508926 Frigidaire Oven Temperature Control Switch
14A316022503 Frigidaire Light Lamp P-1
14B316022500 Frigidaire Oven Warmer Drawer Zone Indicator Light Lamp
15WCI 316049104
15WCI 316049105
18WCI 316026907
18WCI 316026906
19WCI 316024542
20WCI 5303935119
20WCI 316089308
21WCI 316024903
22WCI 316059901
23WCI 316060002
24SWITCH-ROCKER, ALMOND, DUAL ELEMENT
24SWITCH-ROCKER,OVEN LIGHT ,ALMOND
31WCI 316095602
36KNOB-CONTROL, INFINITE SW, ALMOND, (4)
40PANEL-MANIFOLD
46318228310 Frigidaire Oven Lens
545303935086 Frigidaire Oven Top Burner Switch Kit
545304528972 Frigidaire Switch
60316021105 Frigidaire Oven Screw
64WCI 316062400
69SCREW-SWITCH MTG, 8-32 X 3/16, SW TO CNTL PNL, (8)
