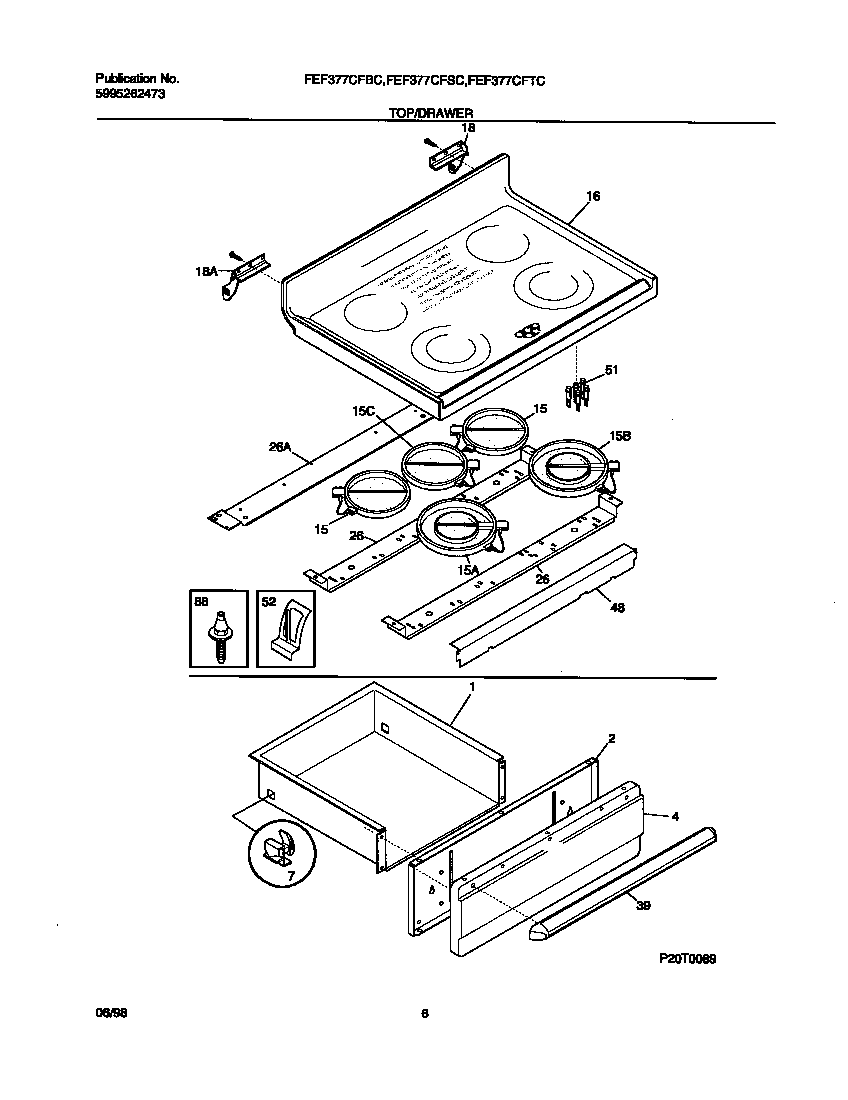

FEF377CFTC 04 – TOP/DRAWER

FEF377CFTC 04 – TOP/DRAWER

Written by

in

FEF377CFTC 04 – TOP/DRAWER

Products

PositionProduct
*39140RIVET-POP, WARING-PLATE
*39148WCI 5309951550
*39147WCI 5303280311
*39146Clip,wiring harness ,green ,main top
*39149WCI 316001745
*39142Screw,cup pt ,8-18 x 0.375 ,chrome
*39145316021109 Frigidaire Oven Screw
*39141316021105 Frigidaire Oven Screw
1DRAWER-UTILITY
2SHIELD-PNL
4WCI 316056202
73051163 Frigidaire Oven Range Rear Broiler Drawer Glide
10WCI 5303280308
15WCI 316098200
15318198817 Frigidaire Oven Element
15B389082702 Frigidaire Element
15AWCI 316049702
16WCI 316098121
18HINGE-MAIN TOP (LH)
18HINGE-MAIN TOP (RH)
26WCI 316099101
26WCI 316099201
39WCI 316026107
443131903 Frigidaire Door/Drawer Bumper
48WCI 316100200
51WCI 316105200
52Clip,element mtg
60WCI 5303288574
88316099500 Frigidaire Oven Pin
