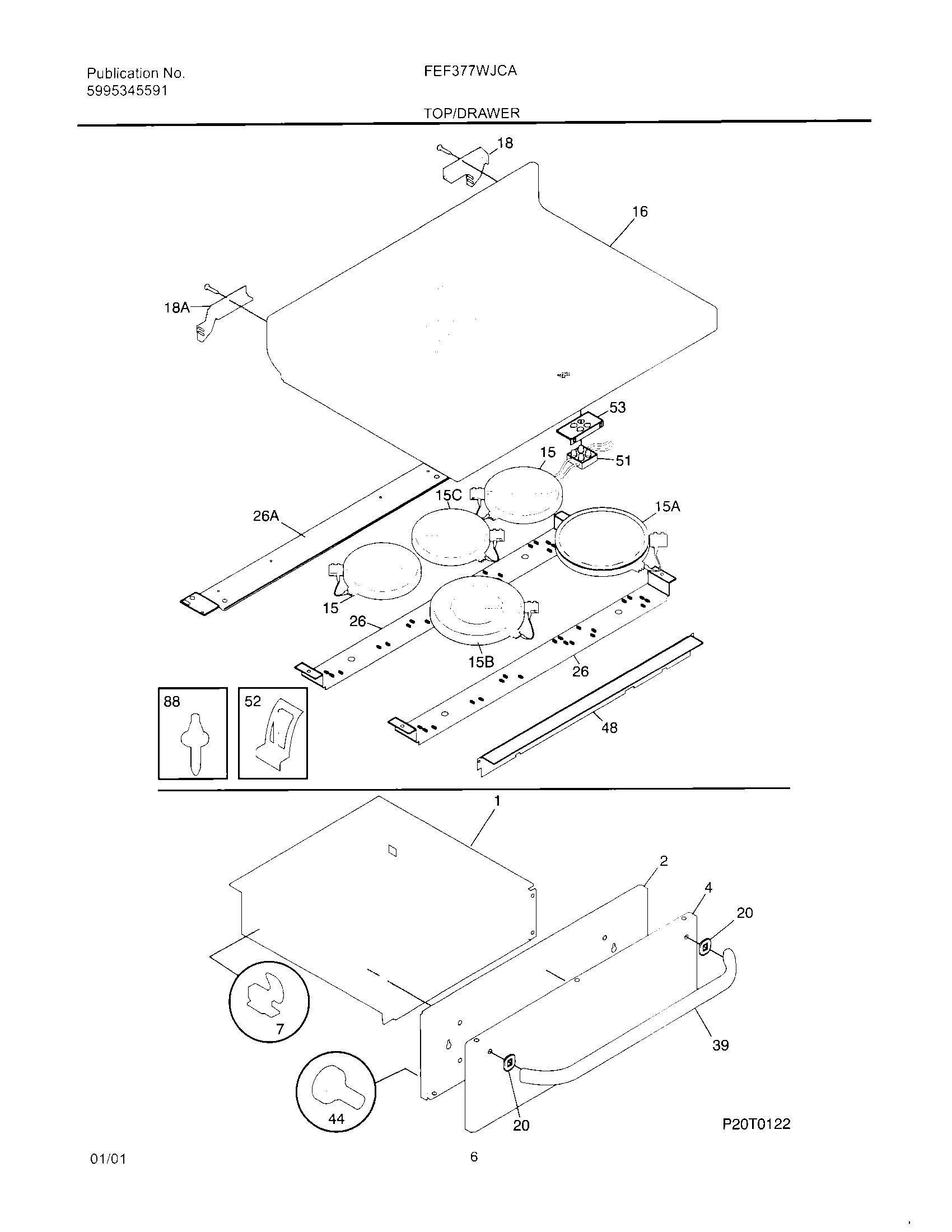

FEF377WJCA 07 – TOP/DRAWER

Products

Position	Product
NI	316021105 Frigidaire Oven Screw
NI	WCI 316112101
NI	WCI 5303280311
NI	WCI 218490900
NI	WCI 316133600
NI	Clip,wiring harness ,green ,main top
NI	5308014215 Frigidaire Oven Screw
NI	Screw,cup pt ,8-18 x 0.375 ,chrome
NI	316021109 Frigidaire Oven Screw
1	DRAWER-UTILITY
2	WCI 5303288582
4	WCI 316079401
7	3051163 Frigidaire Oven Range Rear Broiler Drawer Glide
15	318178110 Frigidaire Oven Range 6" Surface Element
15	WCI 316098201
15	389082702 Frigidaire Element
15	318198834 Frigidaire Oven Element
16	Main Top,smooth top ,black ,16
18	HINGE-MAIN TOP (RH)
18	HINGE-MAIN TOP (LH)
26	WCI 316099200
26	Channel-support,element ,galv steel ,(2)
39	WCI 316091117
44	3131903 Frigidaire Door/Drawer Bumper
48	WCI 316100200
51	WCI 316001759
52	Clip,element mtg
53	WCI 316099300
88	316099500 Frigidaire Oven Pin
