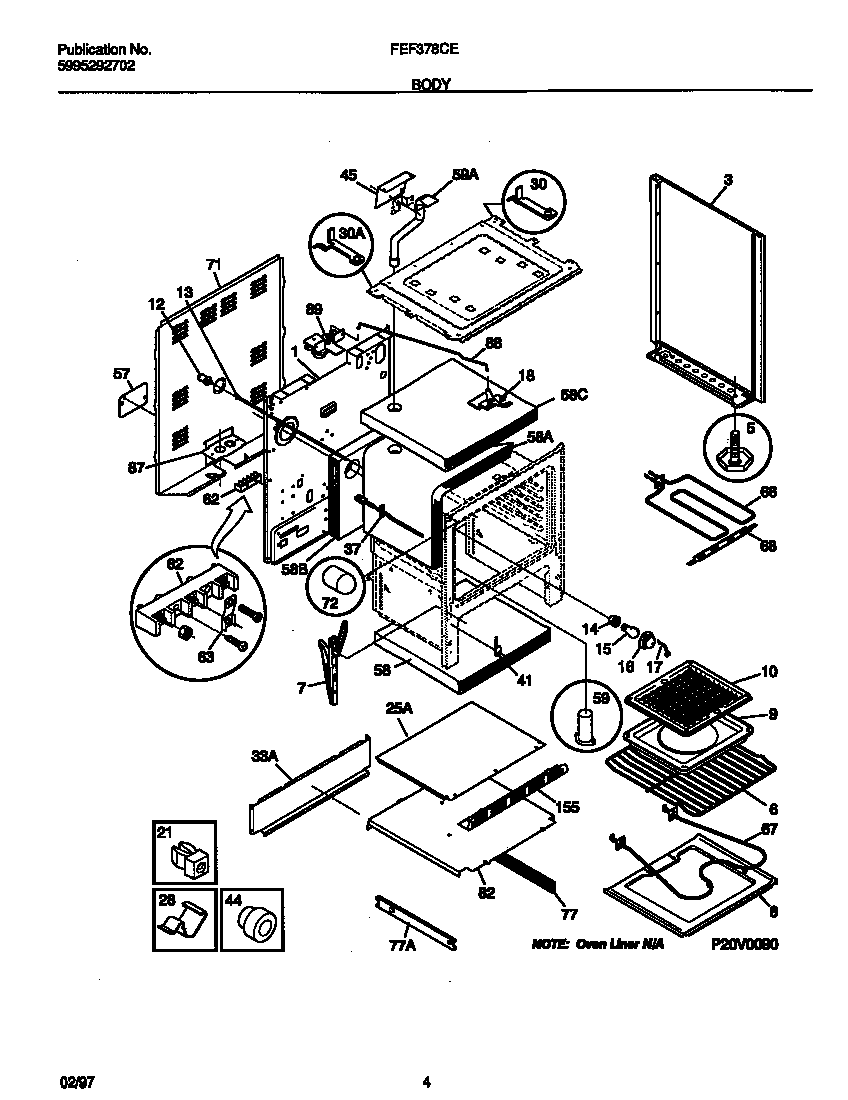

FEF378CEBC 03 – BODY

FEF378CEBC 03 – BODY

Written by

in

FEF378CEBC 03 – BODY

Products

PositionProduct
*45647WCI 316001353
*45644Screw,cup pt ,8-18 x 0.375 ,chrome
*456433203550 Frigidaire Oven Plug
*45646Clip,wiring harness ,green ,main top
*45645316205500 Frigidaire Oven Nut
1WCI 316080801
3WCI 316081027
3WCI 316081026
3SHIELD, HEAT, BODY SIDE (NOT ILLUSTRATED)
5ASCREW-LEVELING
5BWCI 3934058
5C316116000 Frigidaire Screw
5DNUT, T,TYPE, LEVELING SCREW (NOT ILLUSTRATED)
6316067902 Frigidaire Oven Rack
7WCI 316007002
8PANEL-OVEN BOTTOM
9WCI 316073800
10WCI 3205234
12SWITCH-OVEN LIGHT, DOOR FRAME
13WCI 316026800
14316116400 Frigidaire Oven Light Socket
15316538904 Frigidaire Oven Lamp Light
165304524341 Frigidaire Lens
17316087500 Frigidaire Oven Retainer
18WCI 316036300
21SPACER-BODYSIDE, (8)
25WCI 316092401
28CLIP-WIRE
30BRACKET-HINGE, MAIN TOP RH
30BRACKET-HINGE, MAIN TOP, LH
33WCI 316095301
375304497424 Frigidaire Oven Temperature Sensor Probe Kit
41WCI 3131570
443131903 Frigidaire Door/Drawer Bumper
45WCI 316066101
57WCI 316081101
58INSULATION, OVEN TOP
58WCI 316054200
58INSULATION, OVEN WRAPPER
58316403803 Frigidaire Insulation
59BBRACKET-MOUNTING,VENT TUBE
59WCI 316023601
59AWCI 316073602
625304409888 Frigidaire Oven Terminal Block with Hardware
63PLATE=GROUND STRAP
665303051140 Frigidaire Broil Element
67316075103 Frigidaire Oven Bake Element
68316203400 Frigidaire Oven Support
71WCI 316015805
72COVER-LIGHT/SWITCH ROD
77RAIL-DRAWER,LH,OUTER
77Rail,drawer ,RH outer
82SHIELD, OVEN BOTTOM
87WCI 316081201
88WCI 316026400
89WCI 316028103
155WCI 316095201
