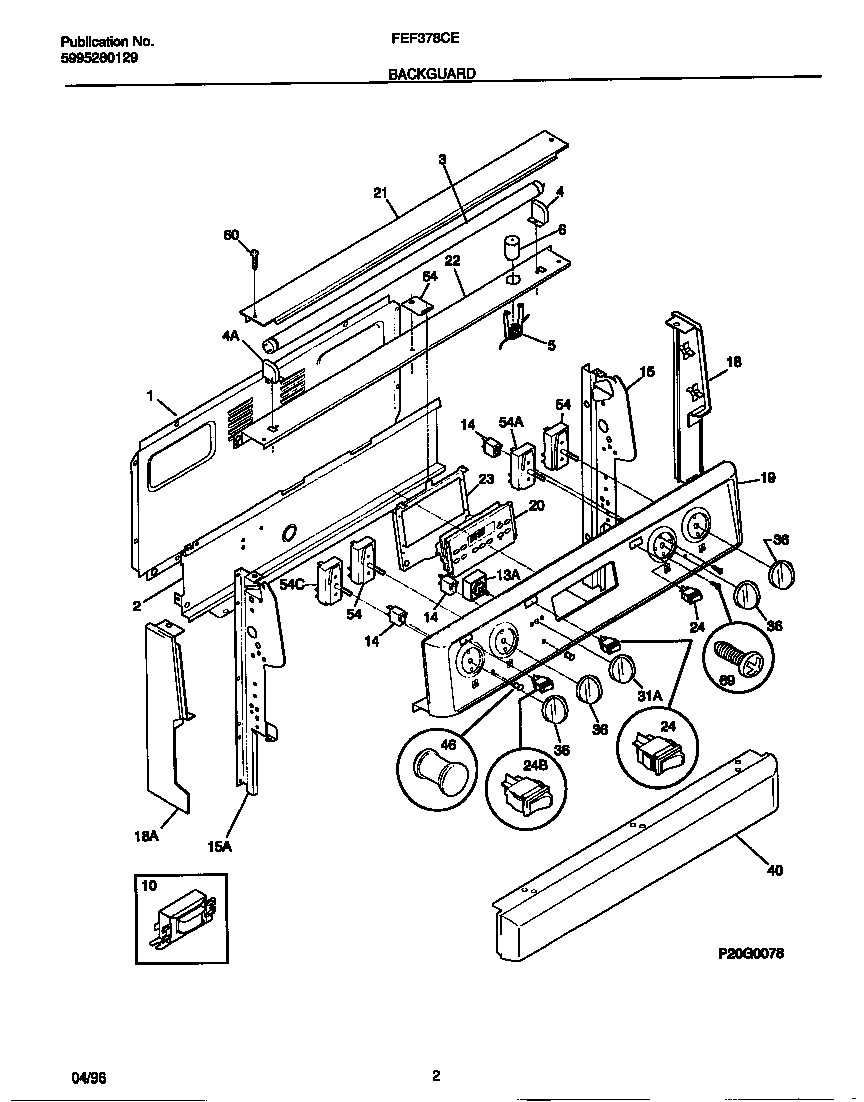

FEF378CESA 02 – BACKGUARD

FEF378CESA 02 – BACKGUARD

Written by

in

FEF378CESA 02 – BACKGUARD

Products

PositionProduct
*65881WCI 5303288574
*65880Screw,cup pt ,8-18 x 0.375 ,chrome
1WCI 316081601
2WCI 316015905
3BULB-FLUOR
4RECEPTACLE-FLU LT LH
4RECEPTACLE-FLU LT RH
5WCI 316053200
6STARTER-LAMP
10WCI 5303051115
135304508926 Frigidaire Oven Temperature Control Switch
14A316022500 Frigidaire Oven Warmer Drawer Zone Indicator Light Lamp
14B316022503 Frigidaire Light Lamp P-1
15WCI 316049106
15WCI 316049107
18END CAP, WHITE, LH
18END CAP, WHITE, RH
19WCI 316024529
20WCI 316027417
21WCI 316024902
22WCI 316059901
23WCI 316060003
245304527842 Frigidaire Rocker Switch
24SWITCH-ROCKER,WHITE, DUAL ELEMENT
31KNOB-WARMER, WHITE, (2)
36316025106 Frigidaire Control Knob
40WCI 316025808
46B318228310 Frigidaire Oven Lens
46ALENS-LIGHT/LAMP, INDICATOR
51WCI 316034802
545304528972 Frigidaire Switch
545303935086 Frigidaire Oven Top Burner Switch Kit
54316436001 Frigidaire Oven Range Infinite Burner Switch
60316021105 Frigidaire Oven Screw
64WCI 316062400
69SCREW-SWITCH MTG, 8-32 X 3/16, SW TO CNTL PNL, (8)
