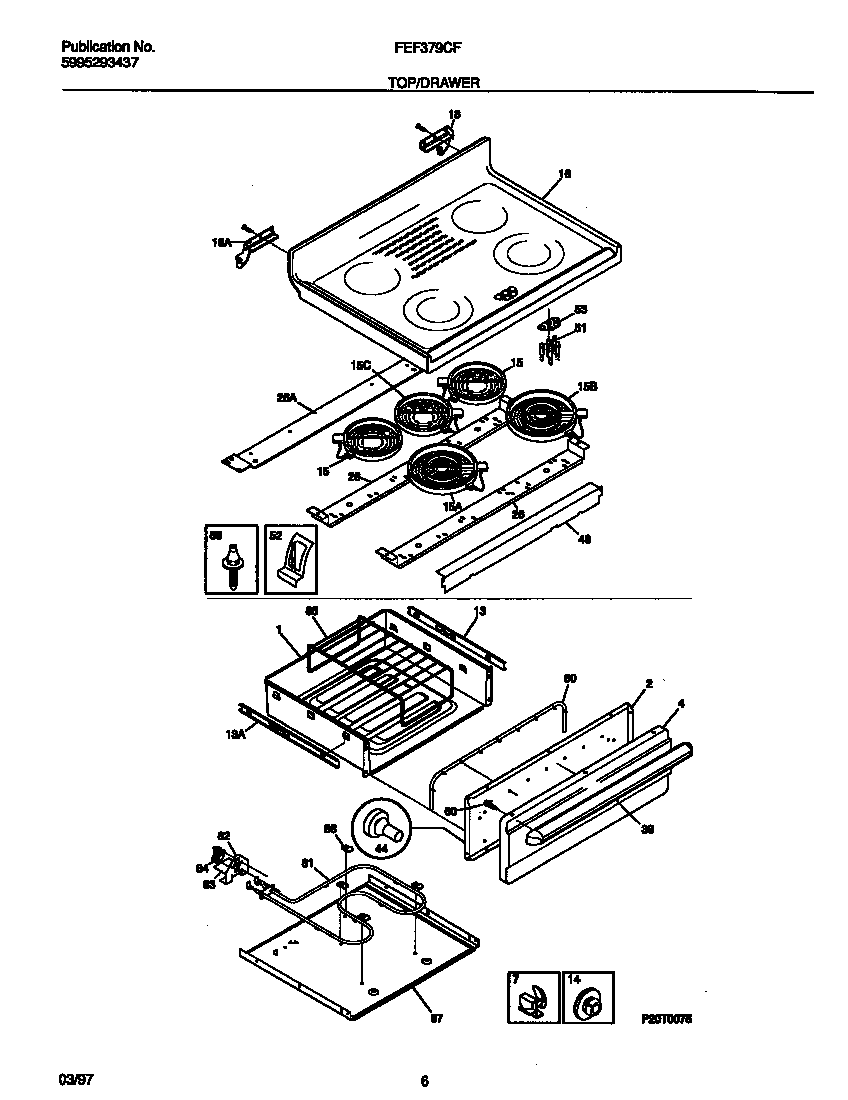

FEF379CFTA 04 – TOP/DRAWER

FEF379CFTA 04 – TOP/DRAWER

Written by

in

FEF379CFTA 04 – TOP/DRAWER

Products

PositionProduct
*45448RIVET-POP, WARING-PLATE
*45452131243700 Frigidaire Screw
*45451WCI 5303280311
*45453WCI 5303288574
*45454WCI 5309951550
*45450Screw,cup pt ,8-18 x 0.375 ,chrome
*45449316021105 Frigidaire Oven Screw
1WCI 316094601
2WCI 316092901
4SCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT ILLUSTRATED)
4WCI 316056206
10WCI 5303280308
13WCI 316096500
13WCI 316096501
14WCI 3206216
15WCI 316049702
15WCI 316098200
15318198817 Frigidaire Oven Element
15389082702 Frigidaire Element
16WCI 316098121
18HINGE-MAIN TOP (LH)
18HINGE-MAIN TOP (RH)
26WCI 316099101
26WCI 316099201
39WCI 316026104
443131903 Frigidaire Door/Drawer Bumper
48WCI 316100200
51WCI 316098300
52Clip,element mtg
60316089500 Frigidaire Oven Screw
80WCI 316093000
81WCI 316093100
82316093200 Frigidaire Bracket
83WCI 316093300
84WCI 316093500
85807328301 Frigidaire Oven Rack
86316095800 Frigidaire Oven Clip
87WCI 316091902
88316099500 Frigidaire Oven Pin
