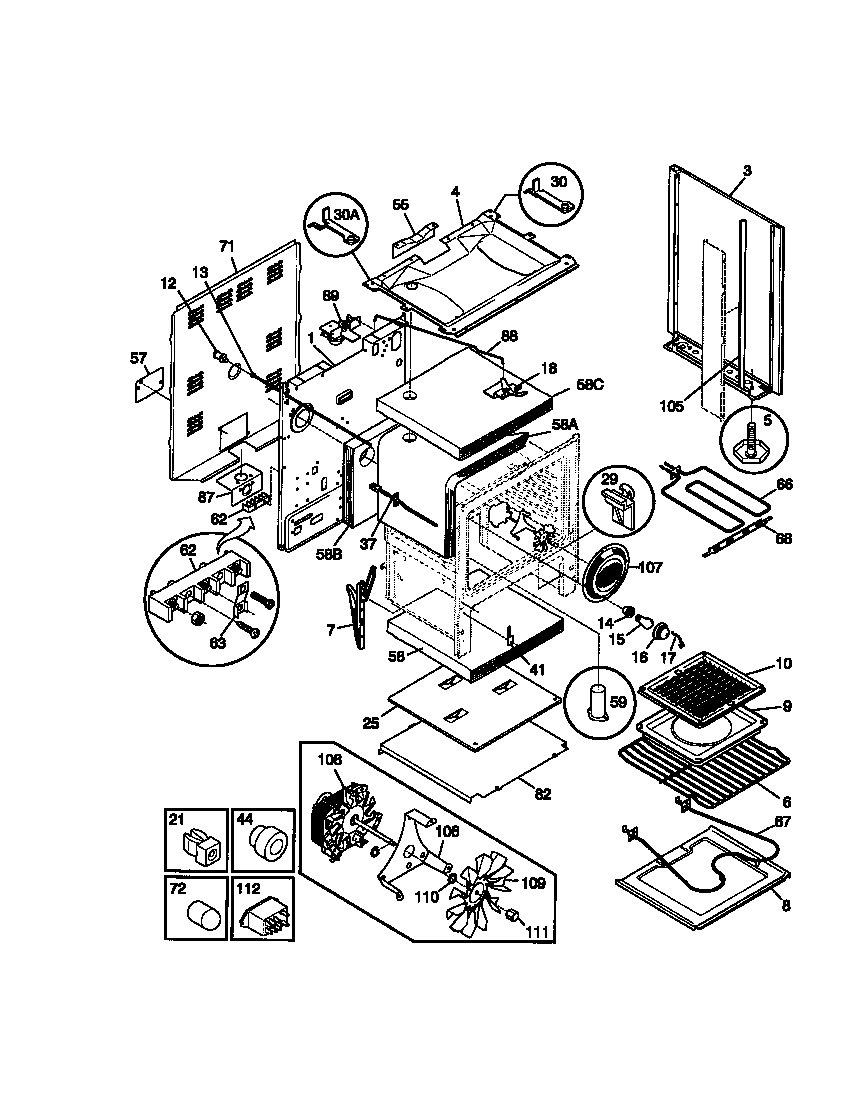

FEF385CCSA 03 – BODY

FEF385CCSA 03 – BODY

Written by

in

FEF385CCSA 03 – BODY

Products

PositionProduct
*67845WCI 5303281584
*67846WCI 316001175
*678423203550 Frigidaire Oven Plug
*67843WCI 316075400
*67844316205500 Frigidaire Oven Nut
1WCI 316029410
3BFASTENER-EDGE MTG (NOT ILLUSTRATED)
3WCI 316081004
3WCI 316081005
3ASHIELD, HEAT, BODY SIDE (NOT ILLUSTRATED)
4WCI 5303271756
5DNUT, T,TYPE, LEVELING SCREW (NOT ILLUSTRATED)
5C316116000 Frigidaire Screw
5ASCREW-LEVELING
5BWCI 3934058
6316067902 Frigidaire Oven Rack
6WCI 316085400
7WCI 316007002
8PANEL-OVEN BOTTOM
9WCI 316073800
10WCI 316073900
12SWITCH-OVEN LIGHT, DOOR FRAME
13WCI 316026800
14316116400 Frigidaire Oven Light Socket
15316538904 Frigidaire Oven Lamp Light
165304524341 Frigidaire Lens
17RETAINER-GLASS
18WCI 316036300
21SPACER-BODYSIDE, (8)
25WCI 3200848
293051162 Frigidaire Oven Range Front Broiler Drawer Glide
30BRACKET-HINGE, MAIN TOP, LH
30BRACKET-HINGE, MAIN TOP RH
375304497424 Frigidaire Oven Temperature Sensor Probe Kit
41WCI 3131570
443131903 Frigidaire Door/Drawer Bumper
55COVER-FLUE
57COVER-ACCESS
58WCI 316054201
58INSULATION, OVEN TOP
58INSULATION, OVEN WRAPPER
58316403803 Frigidaire Insulation
59WCI 316073600
625304409888 Frigidaire Oven Terminal Block with Hardware
63PLATE-GROUND STRAP
665303051140 Frigidaire Broil Element
67316075103 Frigidaire Oven Bake Element
68316203400 Frigidaire Oven Support
71SHIELD, REAR WALL, REAR WALL
72COVER-LIGHT/SWITCH ROD
82SHIELD, OVEN BOTTOM
87WCI 5303206618
88WCI 316026400
89WCI 316028101
105WCI 316071900
106WCI 316026601
107316026701 Frigidaire Oven Cover Assembly
108AWCI 316049401
108BWCI 316021106
109WCI 316054500
110WCI 316054600
111WCI 316054700
112WCI 316082700
